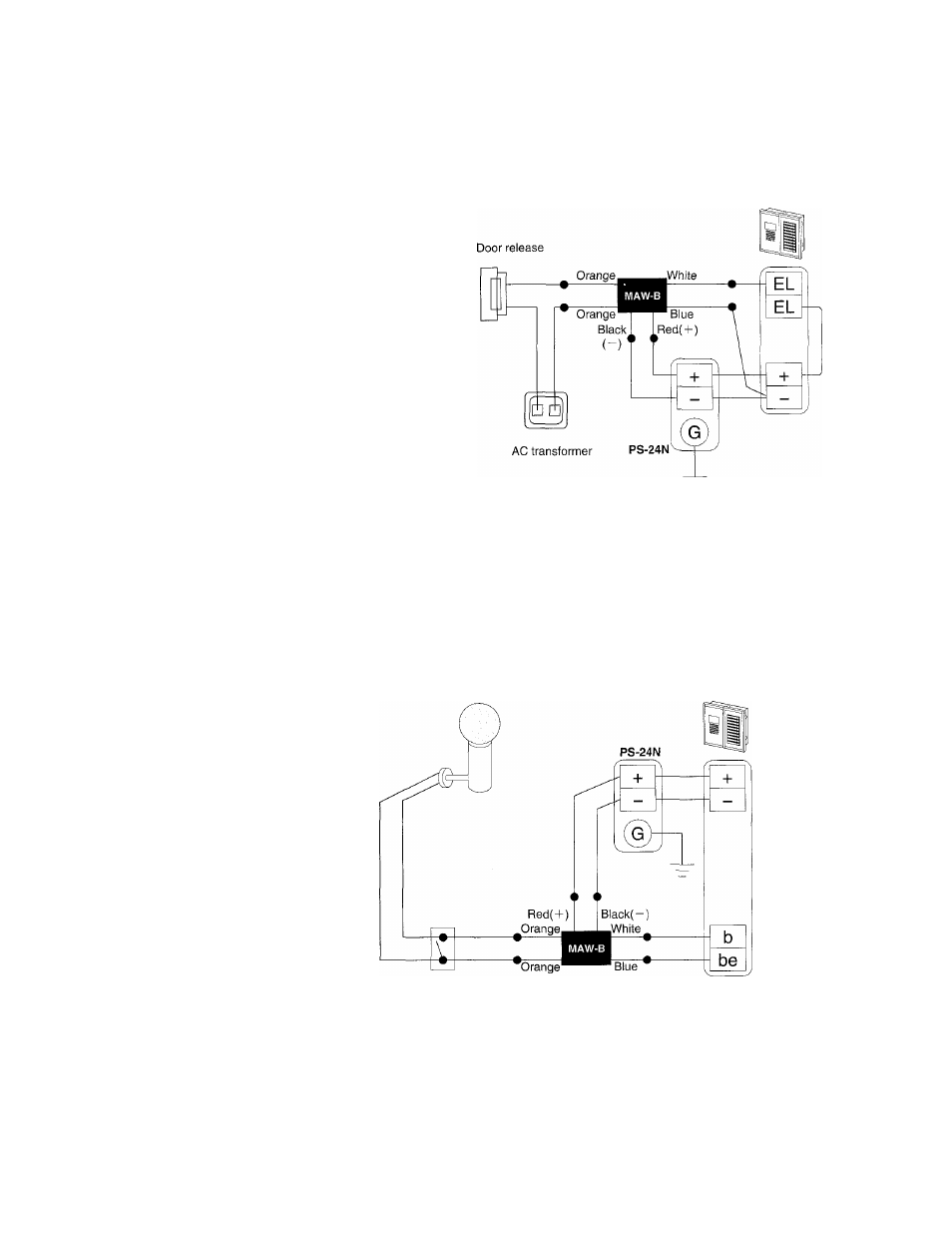

Wiring to door release (on each VY-EM)
VY-EM entrance call panel provides
dry contact closure for door release.
VY-10EWI
EL-9S
z:
12V AC,
0.35A
Q □
AC transformer
PT-1210N
EL
EL
^
Door release of other manufacture
can be used in conjunction with Aiphone’s
MAW-B relay, powered by VY-EM’s PS-24N.
VY-10EM
Lighting control at VY-EM entrance
VY-EM panel also provides
dry contact closure for
illuminating incandescent
lamps for general lighting of
less than 10OW.
It turns on when the VY-EM
placed a call, activating the
room monitor.
VY-10EM
