step 20
• París Needed For •
Door Installation & Adjustment
Right Door Assembly (1)
Left Door Assembly (1)
SQ33

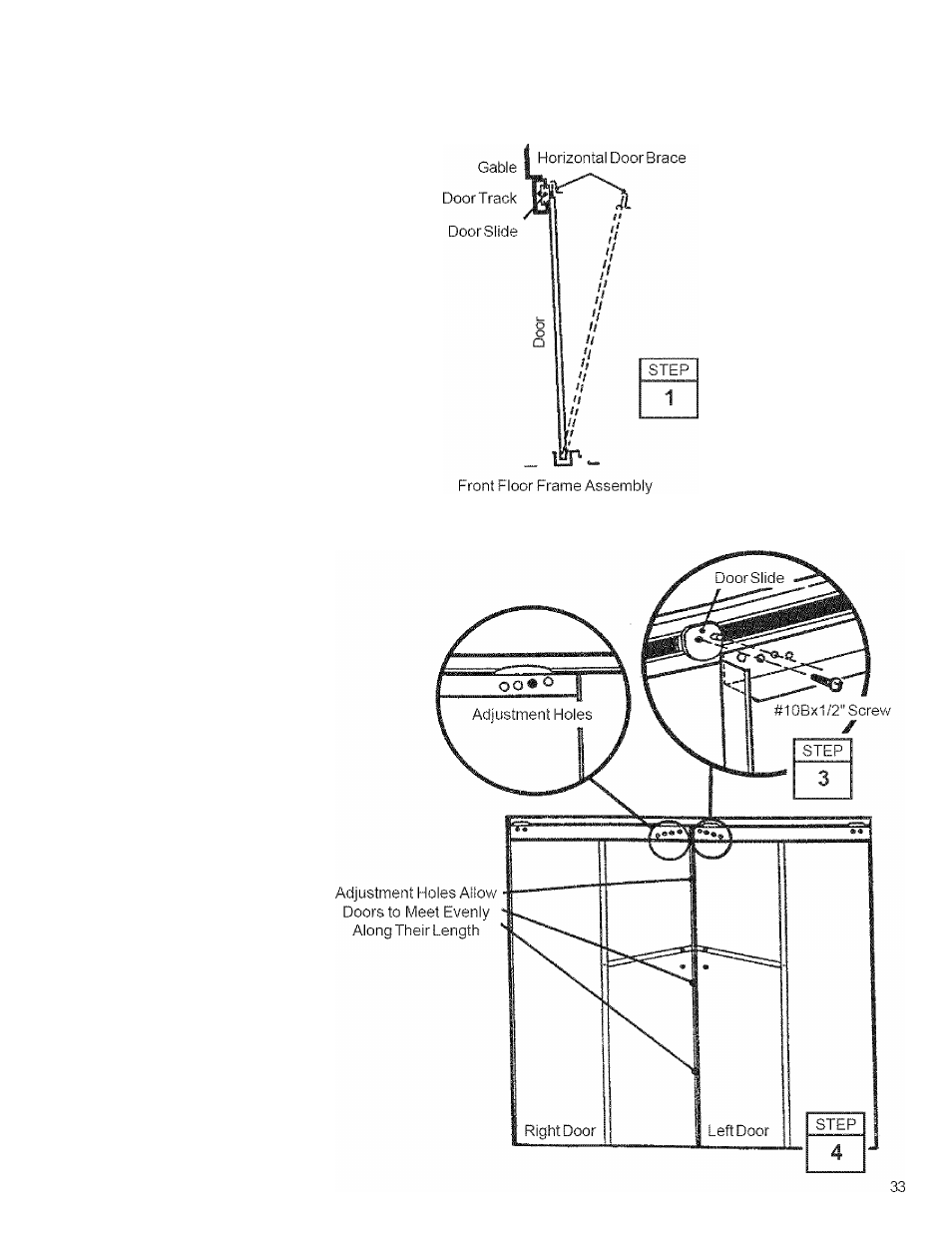

1 From inside the building, put the
bottom of the rightdoorassembly (on
your left when you are inside the
building) behind door jamb into the
front frame track.
2
Position the top of the door so that
the holes in the door line up with the
holes in the door slides.
3
Fasten the door to the door slides
using a #10Bx1/2" screw.
STEP
NOTE
The four holes in the top of each
door allow you to adjust the
doors. Place the door slide in
the middle 2 holes.
4
Repeat steps 1 through 3 for the
left door.
