step 17
• Parts Needed For •
Ridge Cap & Panels
• 6797 Ridge Cap(i)
• 7743 Roof
Panel
(2)
• 9983 Left Roof Panel (1)
• 9984 Right Roof Panel (1)
1

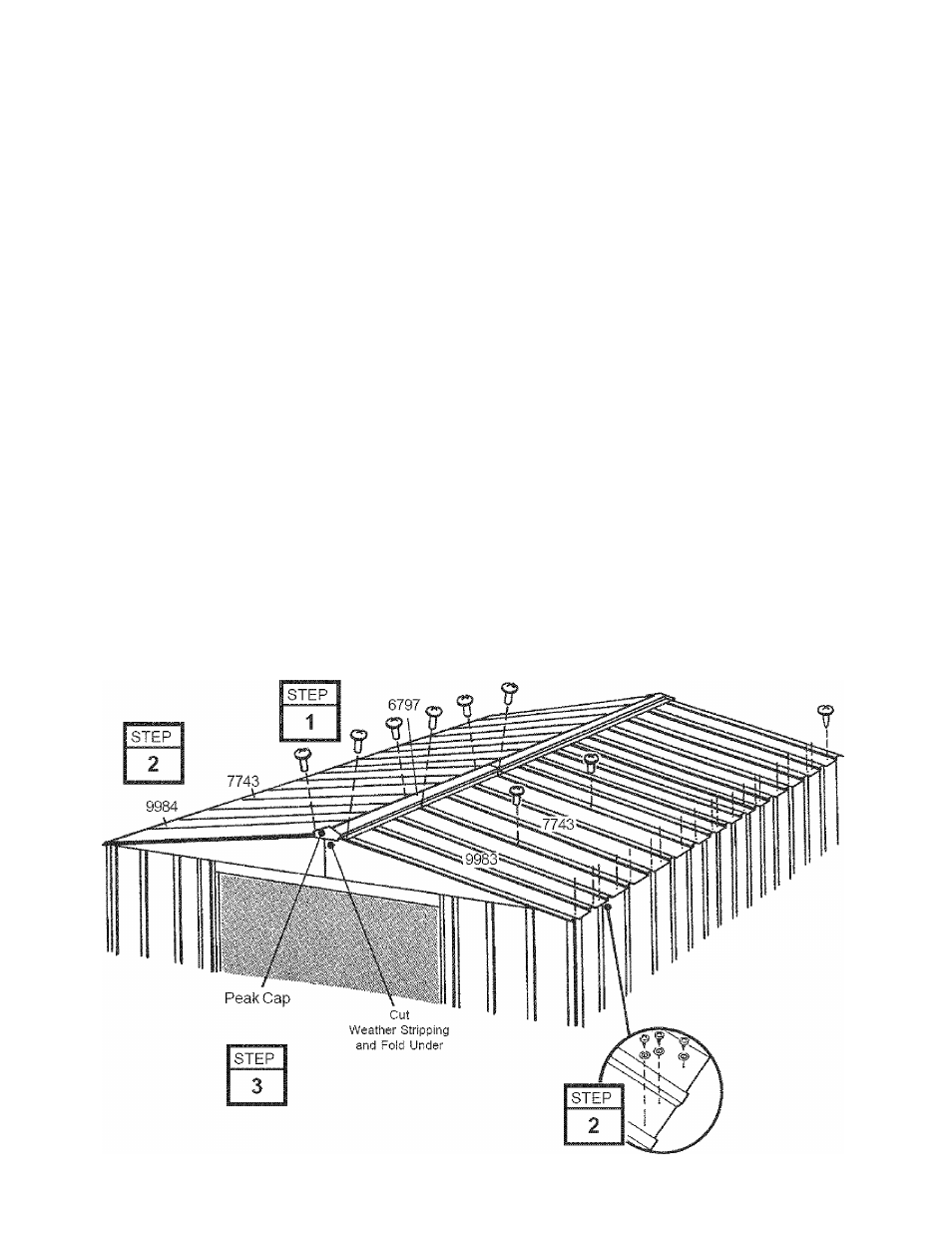

Install the third ridge cap 6797
overlapping the second
ridge cap
while installing the remaining two
roof panels 7743.
Hint: The bolts on
the ridge
cap
need to be left loose to
move the ridge cap to the side and
overlap the ribs ofthe
next roof panel.
Continue weather stripping the ridge.
2
Install the left 9983 and right roof
panel 9984 as you unroll the weather
stripping tape, and press
it down.
Fasten the lower end of the panels to
the side wall angles using screws
and washers.
3
Fasten the roof panel ribs, peak
cap and ridge cap together using
bolts and nuts.
