step 2
• Parts Needed For •
Frame Assemblies
• 5986 Rear Wall
Angle
(2)
• 10389 Rear Wall Channel (2)
• 10388 Side Wail Channel
(4)
• 10391 Side Wall Angie (4)
The main frame pieces reinforce the
walls. These pieces will later be in
stalled in the center and at the top
edge of the side wails and the rear
wall. Proceed as follows:

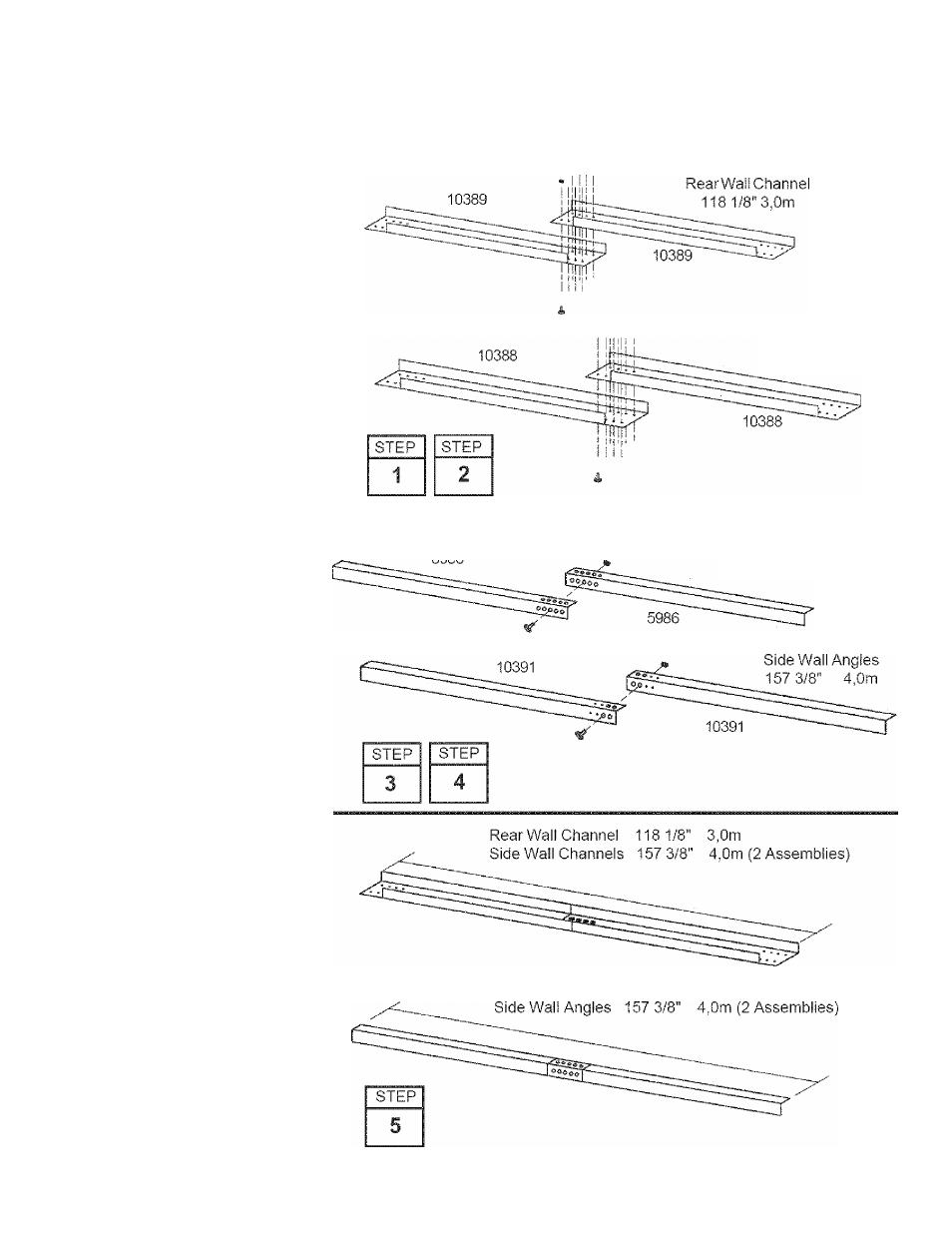

1
Overlap the rear wall channel
pieces as shown in the figure and
fasten the two pieces together with
eight bolts
as shown.
2
Make two side wall channels by
overlapping the side wail channel
pieces as shown. Fasten each set
together with
eight bolts
as shown.
3
Overlap the rear wall angle
pieces as shown in the figure and
fasten them together with
one bolt in
the center hole.
4
Make two side wall angles by
overlapping the side wall angle
pieces as shown. Fasten each set
together with
one bolt thru the sec
ond large hole from the end of each
part.
5 Set the assemblies aside. You will
use them later.
SideWallChannels
157 3/8"
4,0m
Rear Wall Angle
118 1/8" 3,0m
Rear Wall Angle 118 1/8" 3,0m
