step 11
• Parts Needed For €
Gable Assemblies
• 8576 Right Gable (2)
• 8577 Left Gable (2)
• 6635 Roof Beam Bracket (4)
The gables go on top of the front and
rear walls to support the roof beams.
NOTE
The gables are packed nested
together and might be mistaken
as one piece. Carefully separate
them before continuing.

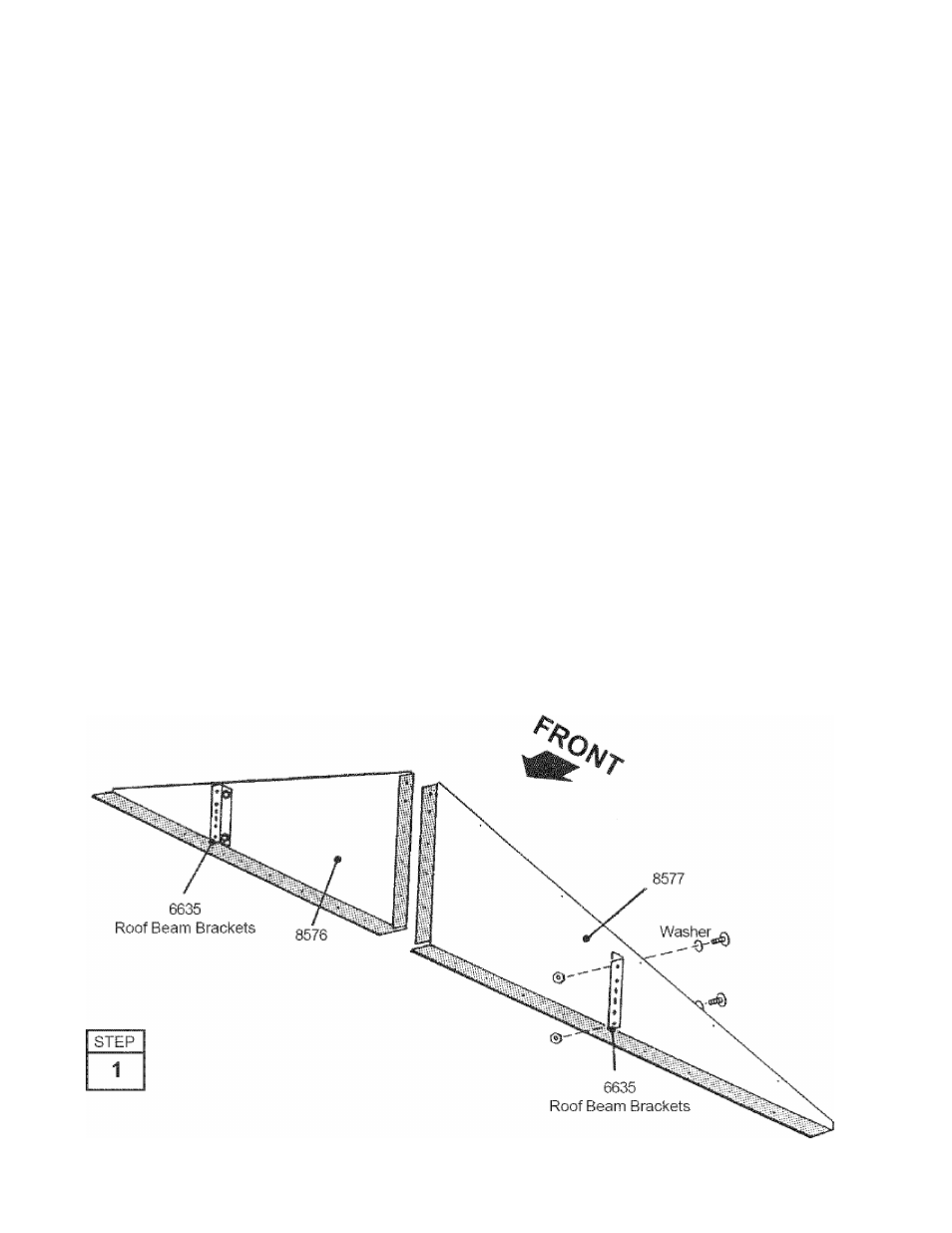

1
Attach the four roof beam
brackets to the gables using two
bolts, washers and nuts.
NOTE
Mounting leg of bracket must
face toward center of gable.
24
