Step 13
• Parts Needed For •
• Main Roof Beam Assembly (1)
Roof Beam//Braces
• Single Roof Beam Assemblies (2)
• 9204 Roof Beam Brace (2)
SP26
1

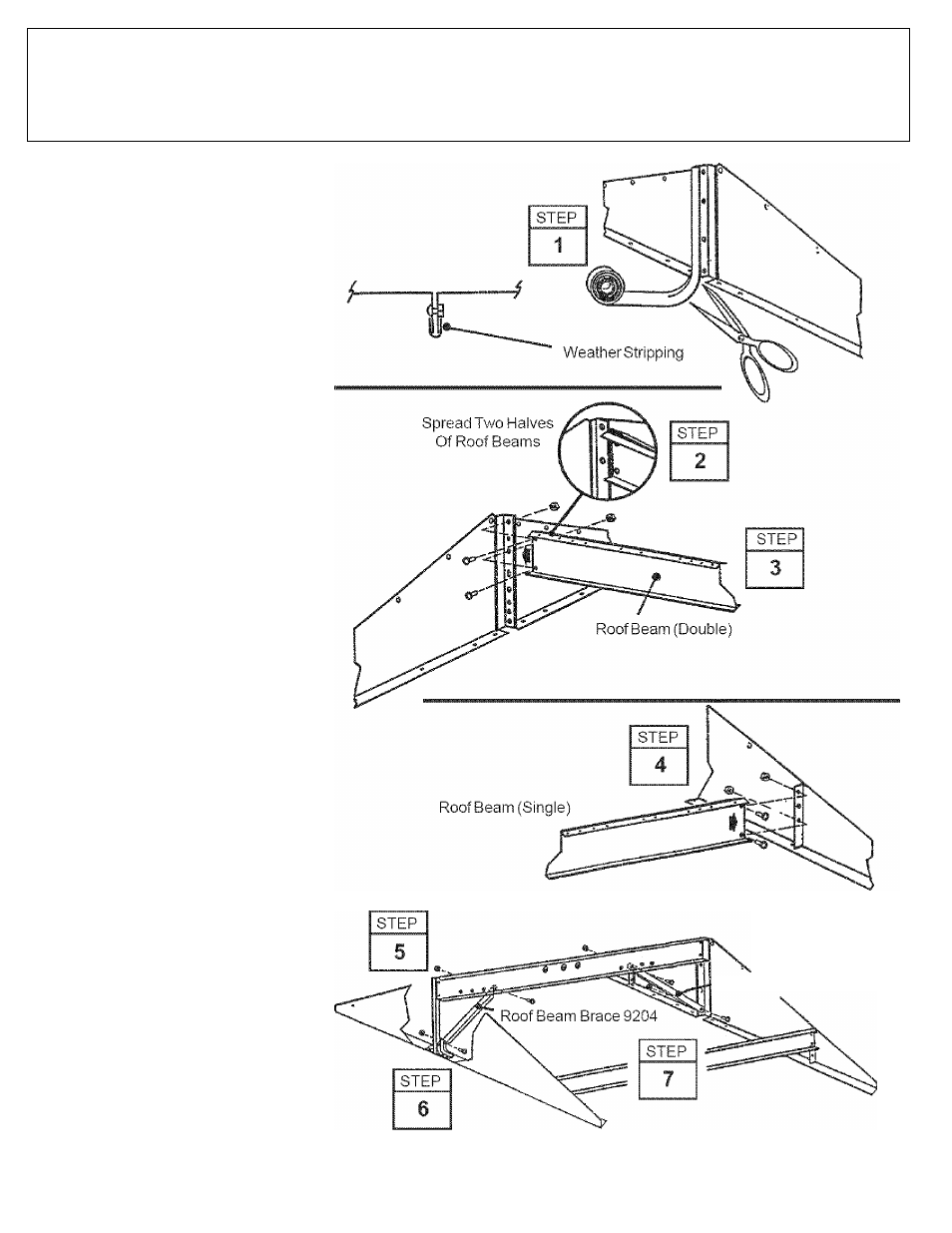

Wrap the weather stripping tape
around the two joined edges of the
large left and right gables. See dia
gram. Cut the weather stripping to
length and repeat on next gable set.
2
Spread the two halves ofthe double
roof beam and fasten to the gable
brace of the front gable.
3
Fasten the other end ofthe double
roof beam to the gable brace of the
rear gable.
4
Fasten the single roof beams,
small holes on top, as shown using
bolts and nuts.
5 Fasten a roof beam brace to the
double roof beam behind the front
gable by placing the tab on the end of
the brace
between
the roof beams.
Align the tab with the
fourth
hole and
fasten the brace with a bolt and nut.
6
Fasten the lower end of the roof
beam brace to the track support with
a bolt and nut.
7 Fasten a roof beam brace be
tween the rear gable and the roof
beam at the third hole, as shown.
Roof Beam Brace 9204
