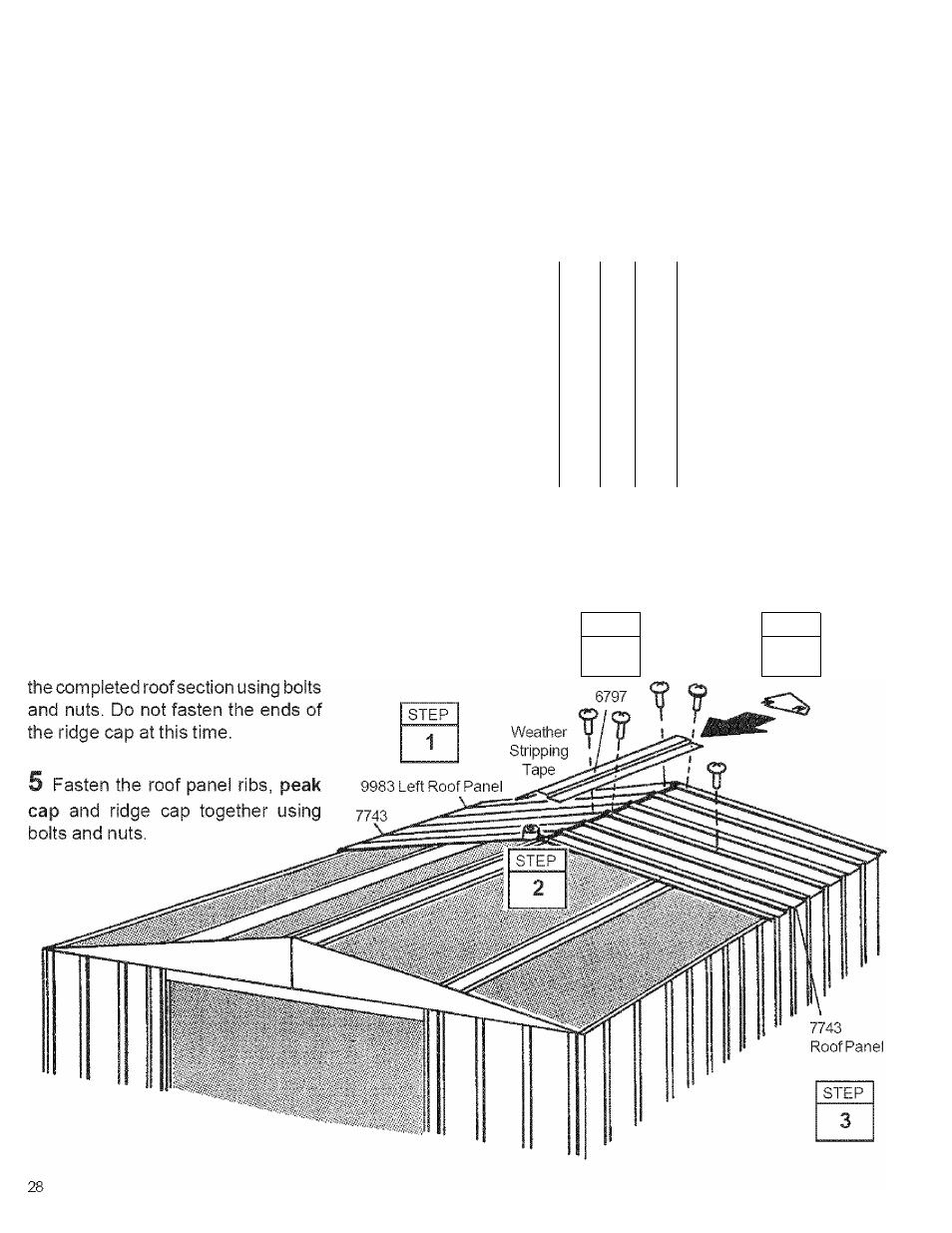

Step 15
• Parts Needed For •
Ridge Cap & Panels
• 9983 Left Roof Panel (1)
• 7743 Roof Panel (2)
• 6797 Ridge Cap (1)
1
Install a left roof pane! 9983atthe
left rear corner of the roof.
2
Cover the joint at the peak with
weather stripping tape. Unroll the
tape and press itdownovertheopen-
ing at the ridge as you install each
roof panel. Do not cut the tape at this
time.
3
Install two roof panels 7743 work
ing side to side.
Do not fasten the
lower end of the panels to the side
wall angles at this time.
Continue
weather stripping the ridge opening.
Screws To
Roof Beam
f
Fasten at ^
Overlap With
Bolt
Screws To
Roof Beam
i
o
If
Fasten
At
* Overlap With
Bolt
NOTE
Narrow roof panel crimped rib is
overlapped by wide rib of
adjacent panel where possible
Do not fasten
at this time
4
Install the first ridge cap 6797 on
STEP
STEP
4
5
