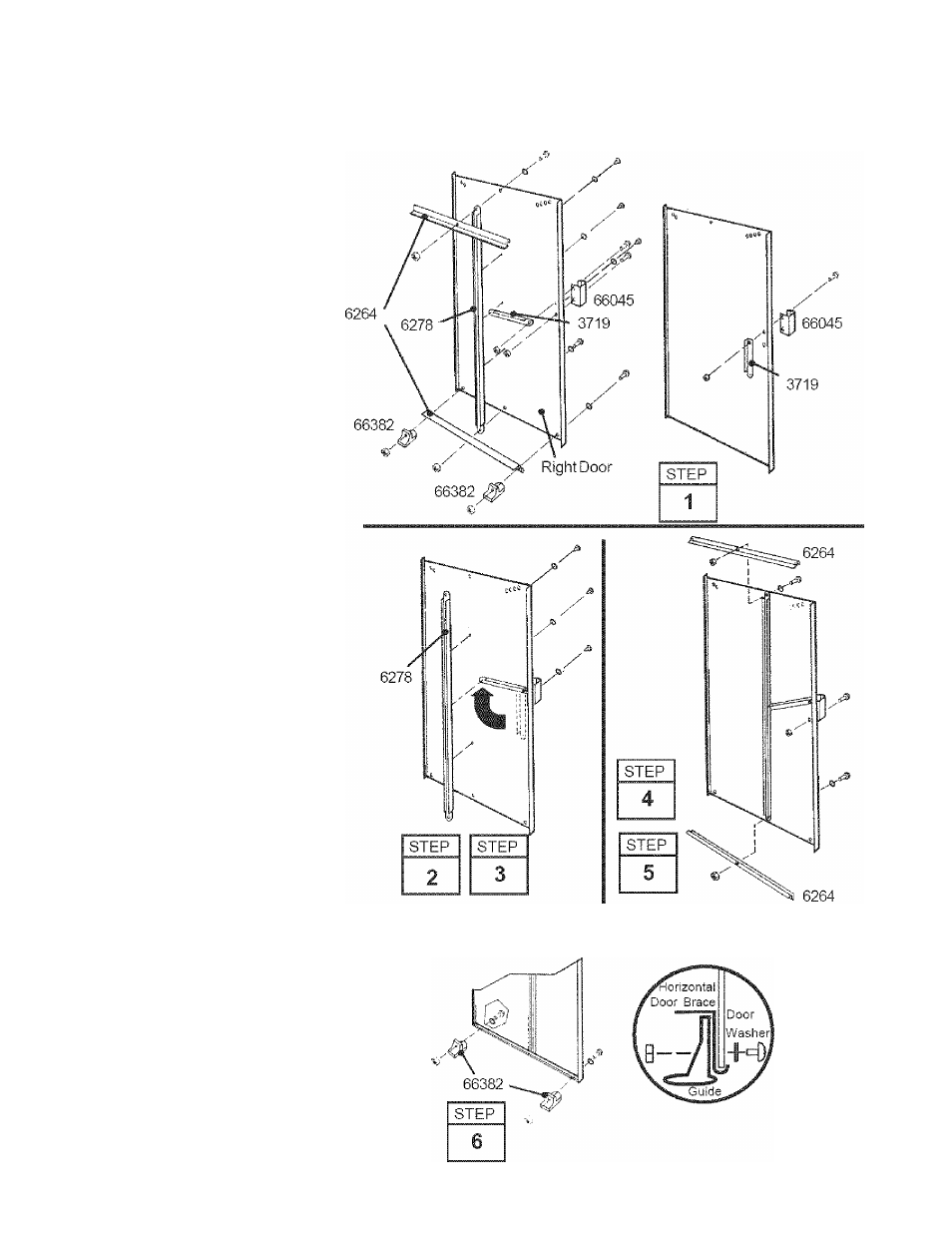

step 19
Parts Needed For
Door Assembly
• 3719 Door Handle Brace (2)
• 8538 Right Door (1)
• 8539 Left Door (1)
• 6264 Horizontal Door Brace (4)
• 6278 Vertical Door Brace (2)
The steps on this page tell how to
assemble the right door. You will
perform exactly the same procedures
for the left door. Each bolt and screw
in the door requires a washer. Pro
ceed as follows:
1
Attach the door handle brace and
handle to the door with 1 bolt as
shown.
Don't tighten the bolt yet.
2
Swing the door handle brace up to
the hole on the centerofthedoorand
insert a screw.
3
Hold the vertical door brace
against the center of the inside sur
face of the door and turn the screw to
hold the vertical door brace and door
handle brace in place. Fasten to
door
above
and
below
center
connection using 2 screws.
4
Insert a second bolt in the door
handle and tighten both bolts.
5
Put a
horizontal door brace onto
the top edge and bottom edge and
fasten
with 1 boit in the center.
6
Attach the lower door guides as
shown.
7
Repeat steps 1 through 6 for the
left door.
