step 5
Parts Needed For
Floor Frame
• Front
Floor Assembly (1)
• Side Floor Assembly (2)
• Rear Floor Assembly (1)
1

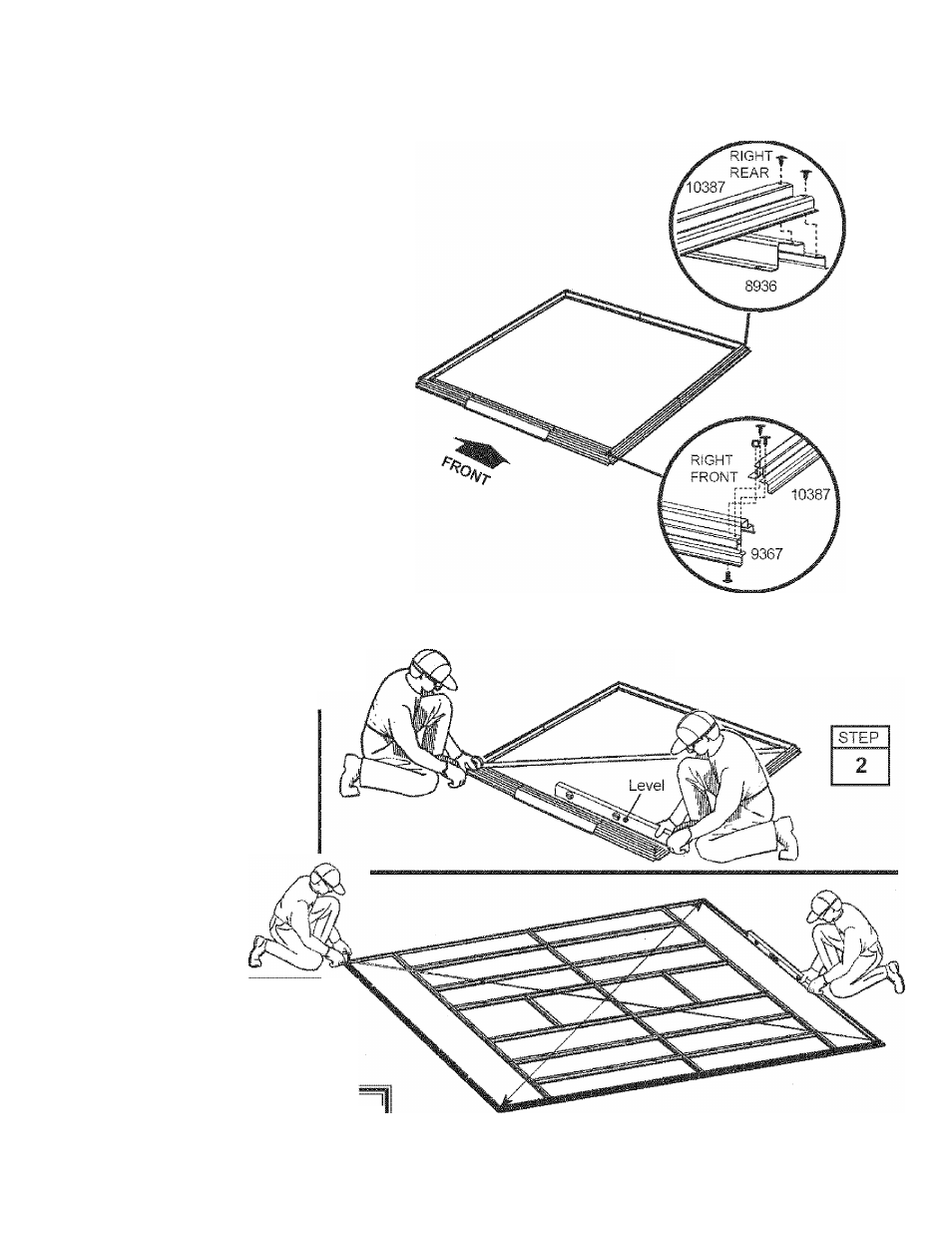

Place the floor frame pieces that
you assembled earlier on the foun
dation. Assemble the four corners of
the floor frame using two screws at
each corner as shown. At the front
corners fasten bolts through from
the bottom with nuts on top.
2
Measure the floor frame diago
nally. When the diagonal measure
ments are equal, the floor frame is
square.
NOTE
If using a wood platform or
concrete slab do not fasten the
floor frames to your base at this
time. You will anchor the
building after it is erected.
NOTE
If you have purchased a Floor
Foundation Kit you need to
install it at this time.
STEP
When Diagonal Measurements
are Equal the Floor Frame
is Square.
The floor frame
must be square
and level
or holes will not align
18
