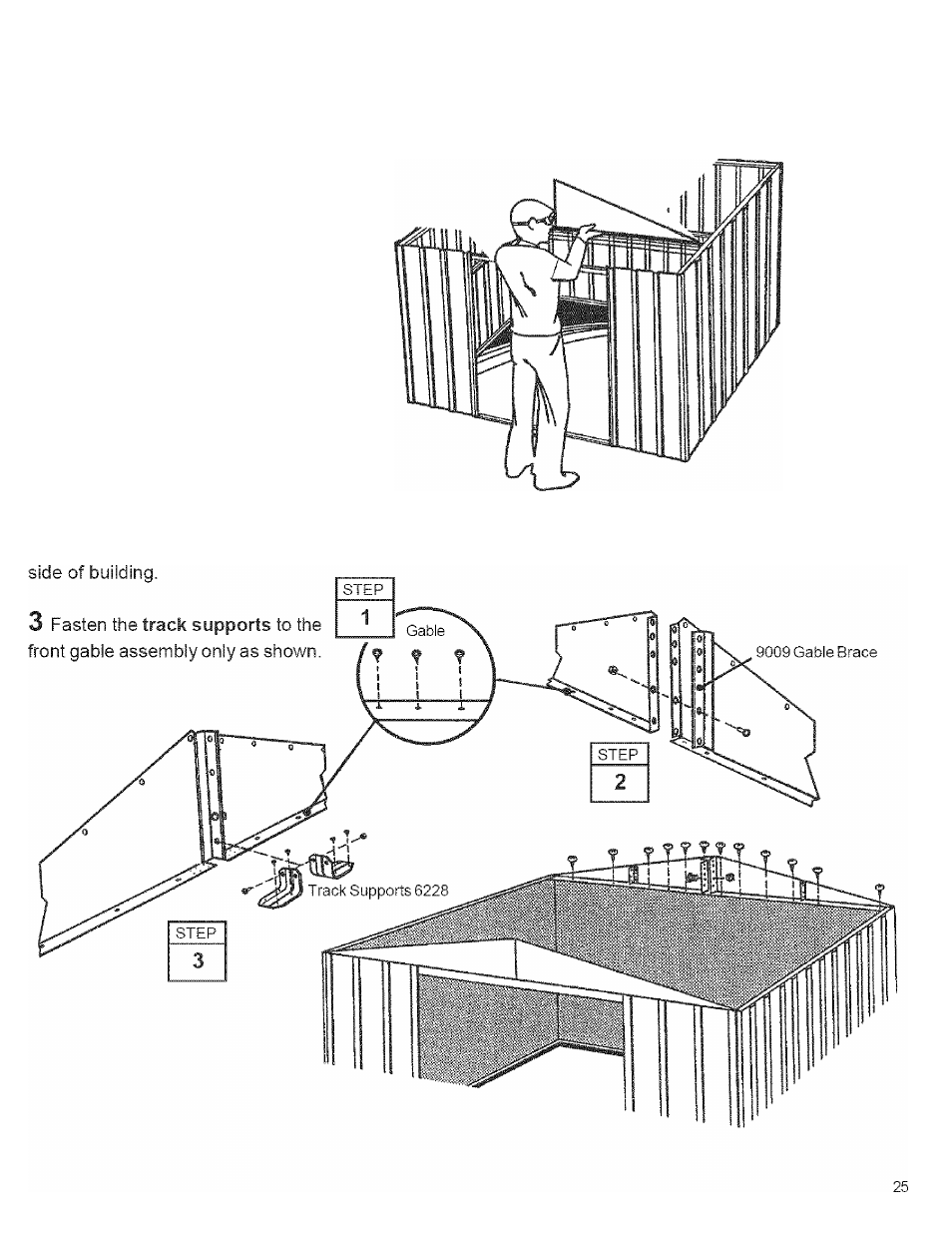

step 12
Parts Needed For
Gables/Braces
• Left Gable Assemblies (2)
• Right Gable Assemblies (2)
• 9009 Gable Brace (2)
1
Lift and fasten a
right and left
gable, under angle at corner, to the
door track and rear wall angle with
screws.
Hint: On the front gable, leave out 2
screws closest to center gable leg.
On the rear gable, use a bolt and nut
at the overlapping rear wall angle.
2
Join the left and right gables
together with a gable brace using a
bolt and nut in the second hole from
the bottom
only.
Repeat Steps 1 & 2 for the opposite
