6.4 Status Register Specific to MP1777A
6.4
Status Register Specific to MP1777A
The following section shows the definition of the device-specific register bit.
INSTrument Status register
NOT USED
NOT USED
EOT
UNL
ALC
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
To the OPERation
status register (Bit 13)

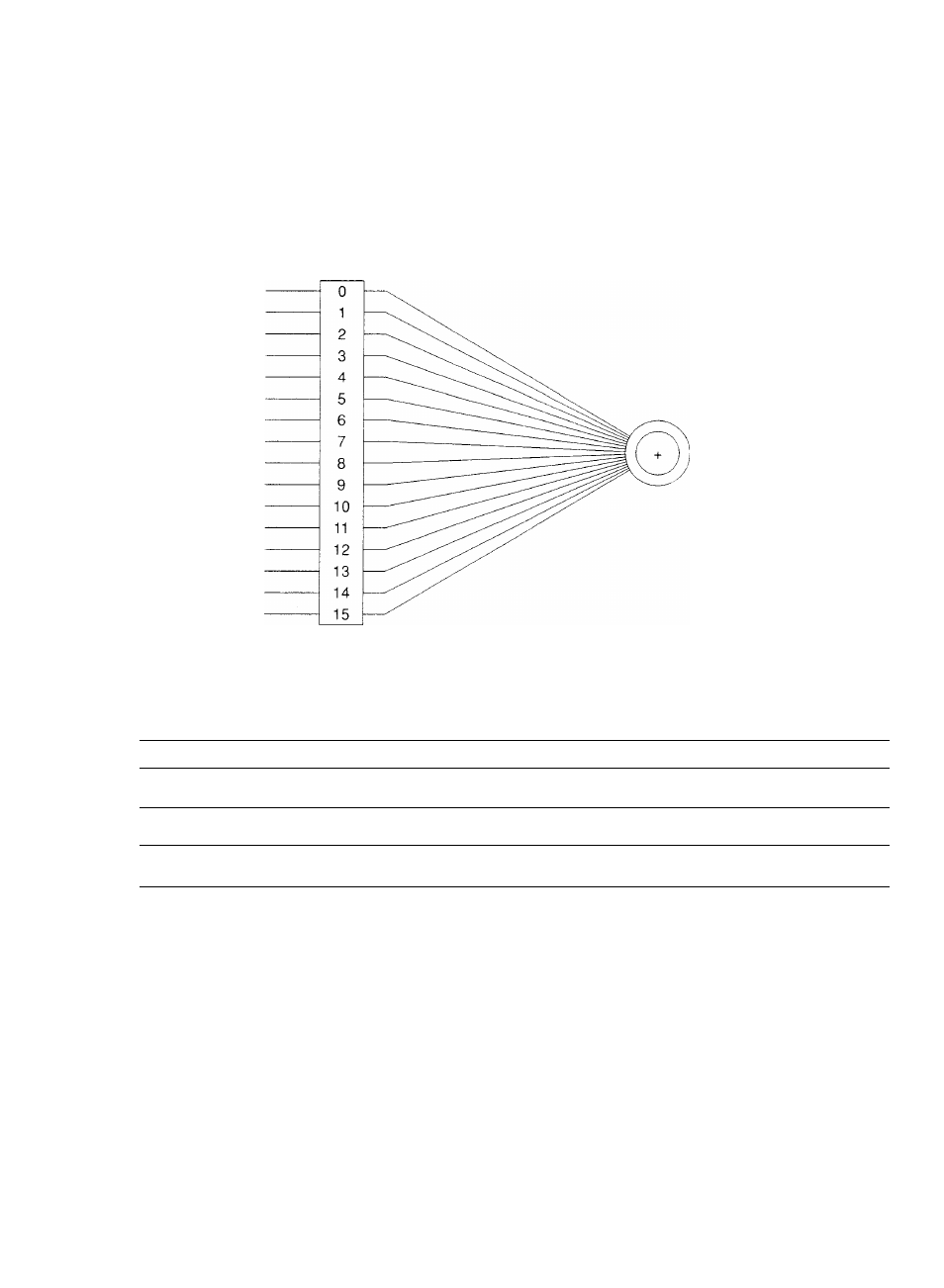

Fig. 6-4 Definition of INSTrument Register Bit
Table 6-6 Definition of INSTrument Status Register Bit
Bit
INSTrument Status Register
Definition
DB2
EOT
(End Of Test period)
Indicates that the test (measurement) has finished.
DB3
UNL
(UNLock)
Indicates that Unlock has taken place.
DB4
ALC
(Alarm Change)
Indicates that the alarm has changed.
6-7
