6.3
Status Register Specified by SCPi
The following section shows the definition of the register bit specified by SCPI.
OPERation Status register
NOT USED
NOT USED
NOT USED
NOT USED
MEAS
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
INST
NOT USED
NOT USED
Section 6 Status Report
To the status
byte register (Bit 7)

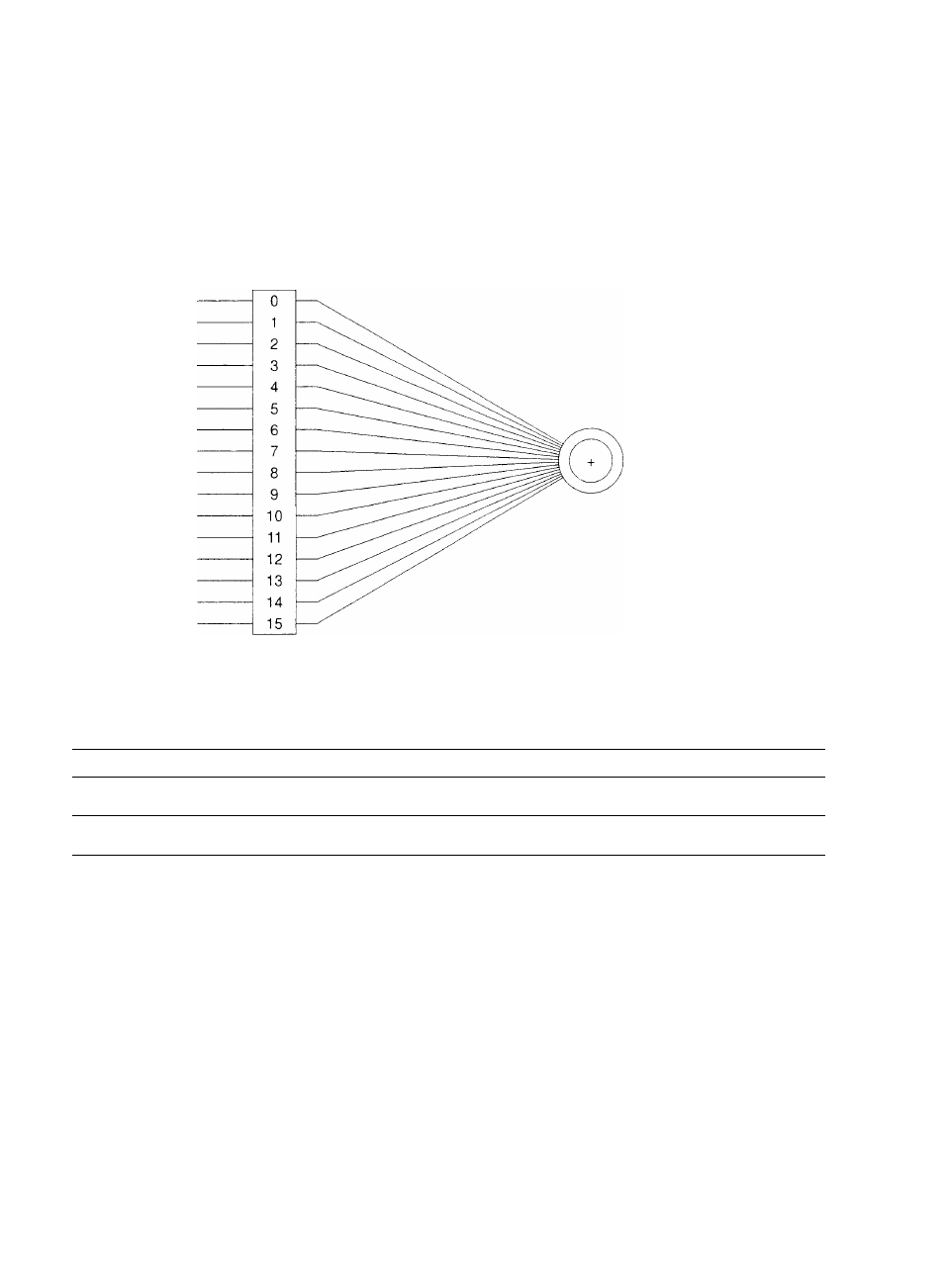

Fig. 6-3 Definition of Register Bit Specified by SCPI
Table 6-5 Definition of OPERation Status Register Bit
Bit
OPERation Status Register
Definition
DB4
MEAS (MEASuring)
Indicates that the measurement is being performed.
DB13
INST (INSTrument status register summary)
INSTrument status register summary
6-6
