4.2.3

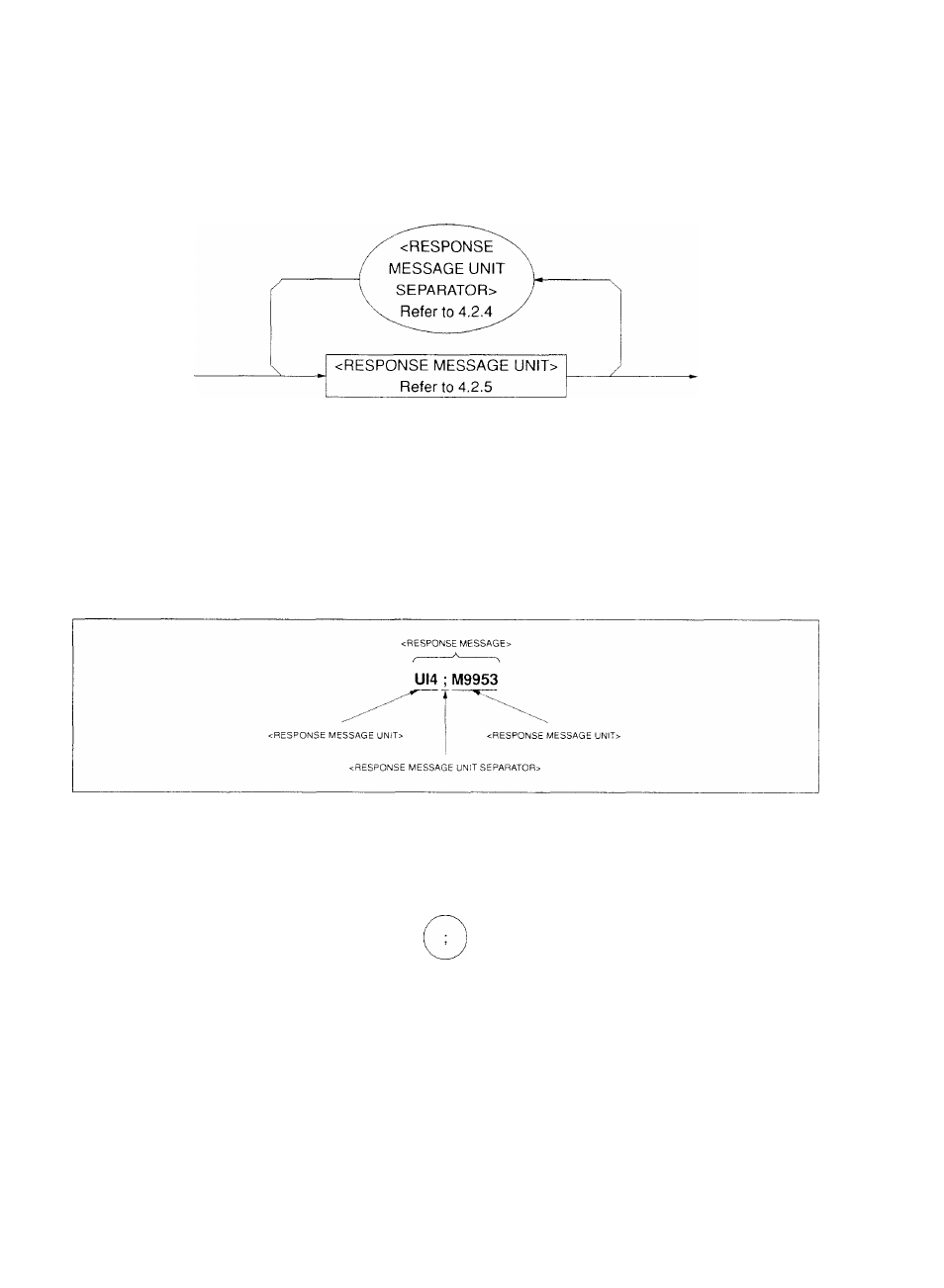

The is defined as follows.

Section 4 Talker Output Format

The is composed of a sequence of one or multiple ele

ments

The element signifies a single message to be sent from this measuring instrument to the

controller. The element is used as the separator to delimit multiple

elements.

Example:

Indicates responses to queries for the selection of receiving jitter range and for the setting of sign speed of received signal.

4.2.4

The is defined as follows.

The separates with a semicolon ( ; ) that constitutes the

SEPARARATOR>, the elements when a sequence of multiple

SAGE UNIT> elements is output as one .

4-4
