SEWING HEAD IN CABINET

-’■ nok off

both head hinge set screws

hols is clear.

Tilt head hinga

tongues up and back

as rai as tney

will go.

3. Carefully

slip head onto head hinges

. , m a x i i i u s u r e t o n g u e s a r e i n s e r t e d

a s f a r a s t h e y can g o i n t o head

hinge holes.

4. A l l o w the head to rest in its tilted-

back position,

5. Tighta.n both

set screws securely

w i t h s c r e w d r i v e r .

6 .

Plug electrical

I s a d s

into sockets

ioca iau inside

c a b i n e t . C o r d i d e n t i

fied wi Ui "nnotor"

tag must be plugged

into socket marked

“ m o t o r ” .

Un tagged cord goes to “light”

socket.

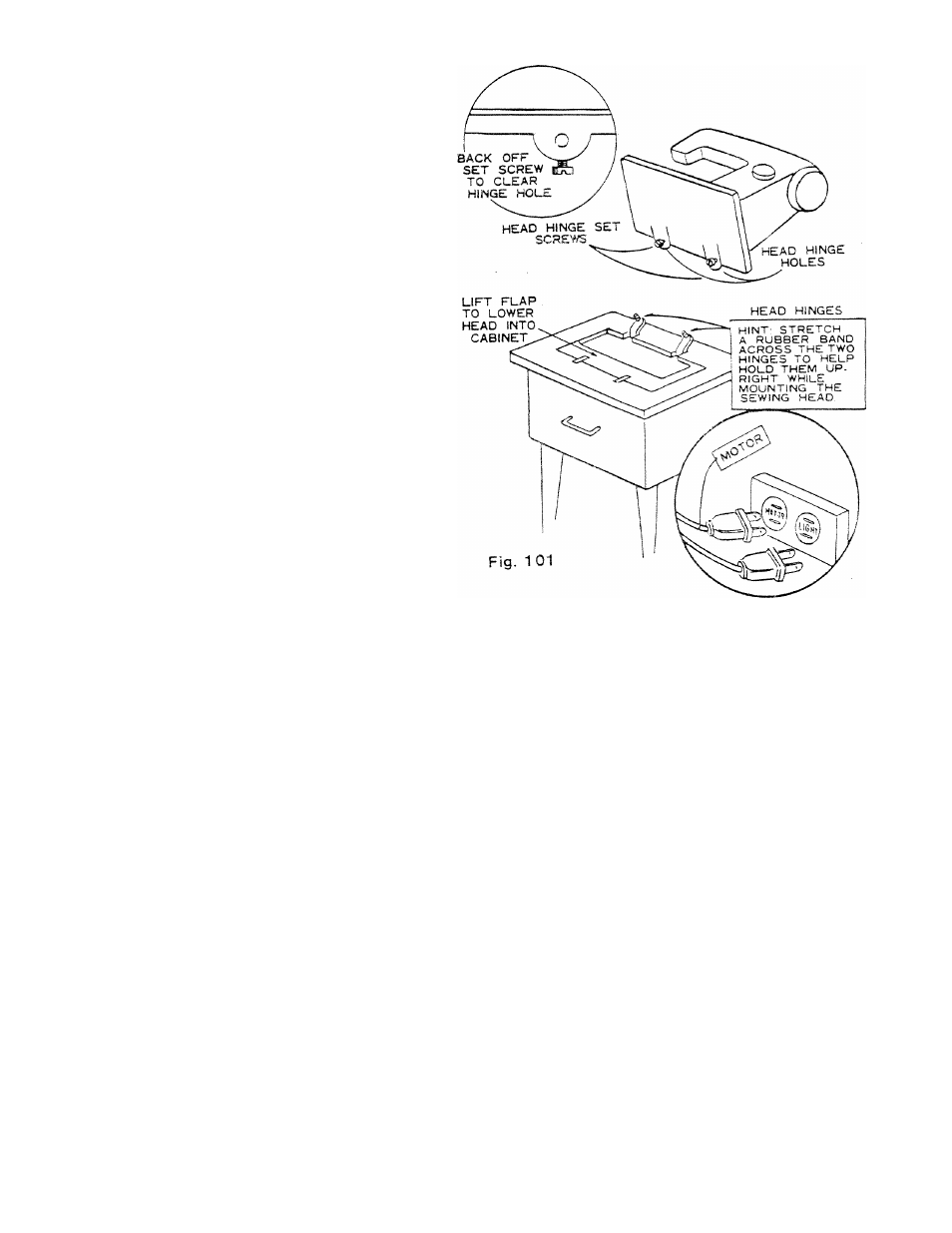

See Fig. 1 01
