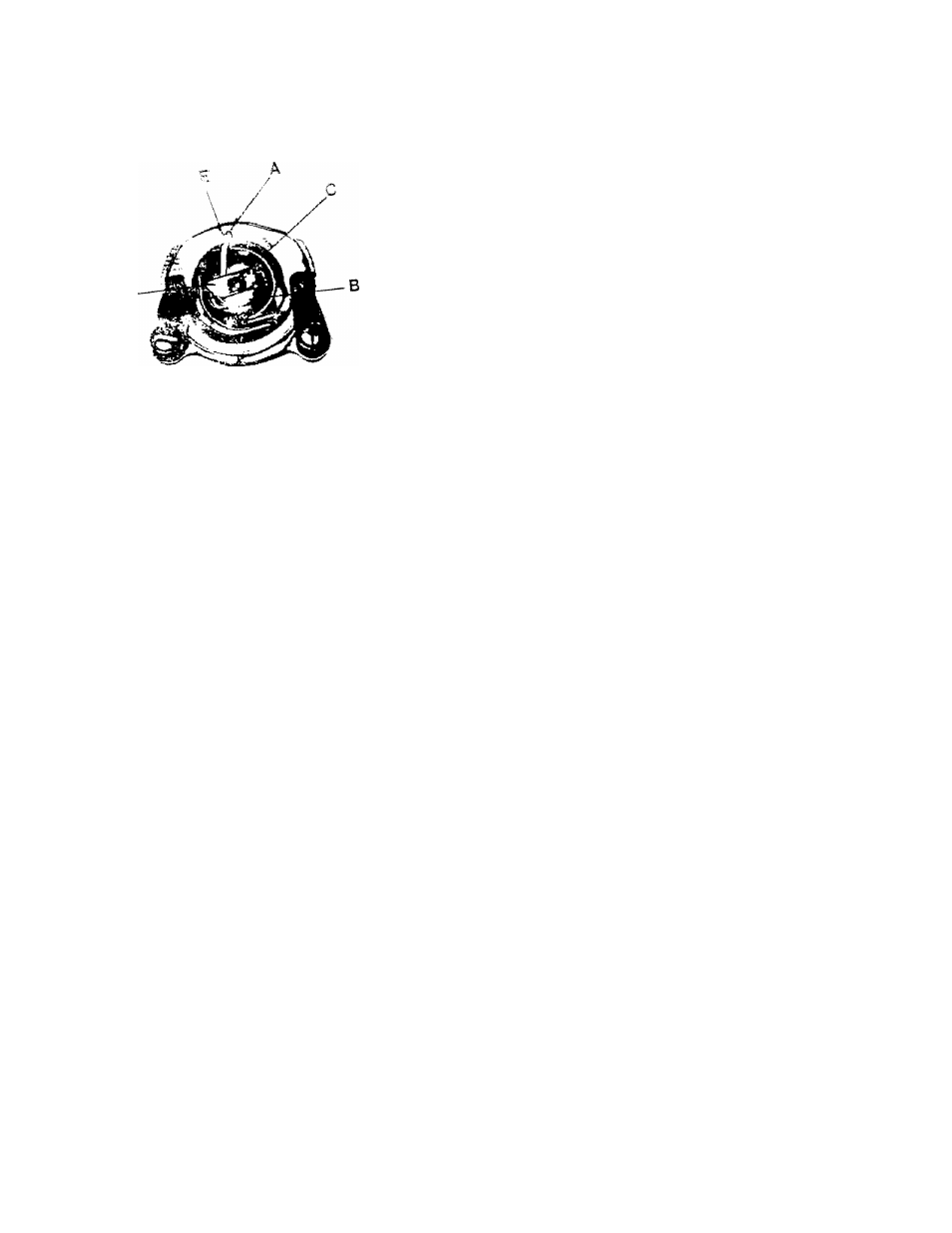

BOBBIN: CASE

,-ig. 12

Raise needle bar to highest position, and lift hinged

cover plate. ( S e e 1 6 Fig. 1 ) Hold the bobbin case

latch

(D,

rig.

12),

between

the

thumb

and

forefinger

of the left hand, with at least three inches of thread

running from the top of the bobbin case to the right.

Insert and center the bobbin case on the stud of the

shuttle body, ( C ) . Be sure the bobbin case finger lE)

is opposite the shuttle race notch, ( A ) . Press the

bobbin case (B) into the shuttle as far as possible

until latch catches on the center post of the shuttle.

Then release the bobbin case latch, ( D ) . Press bob

bin case again after latch has been released to make

sure the bobbin case is locked securely.

Close the cover plate.
