4 1
TROUBLE
C H A R T
a o l e Cause
Correction
I f M a c h i n e ^ T h r e a d or lint in
3 i n d s
^ ^ - a c T ' v a y

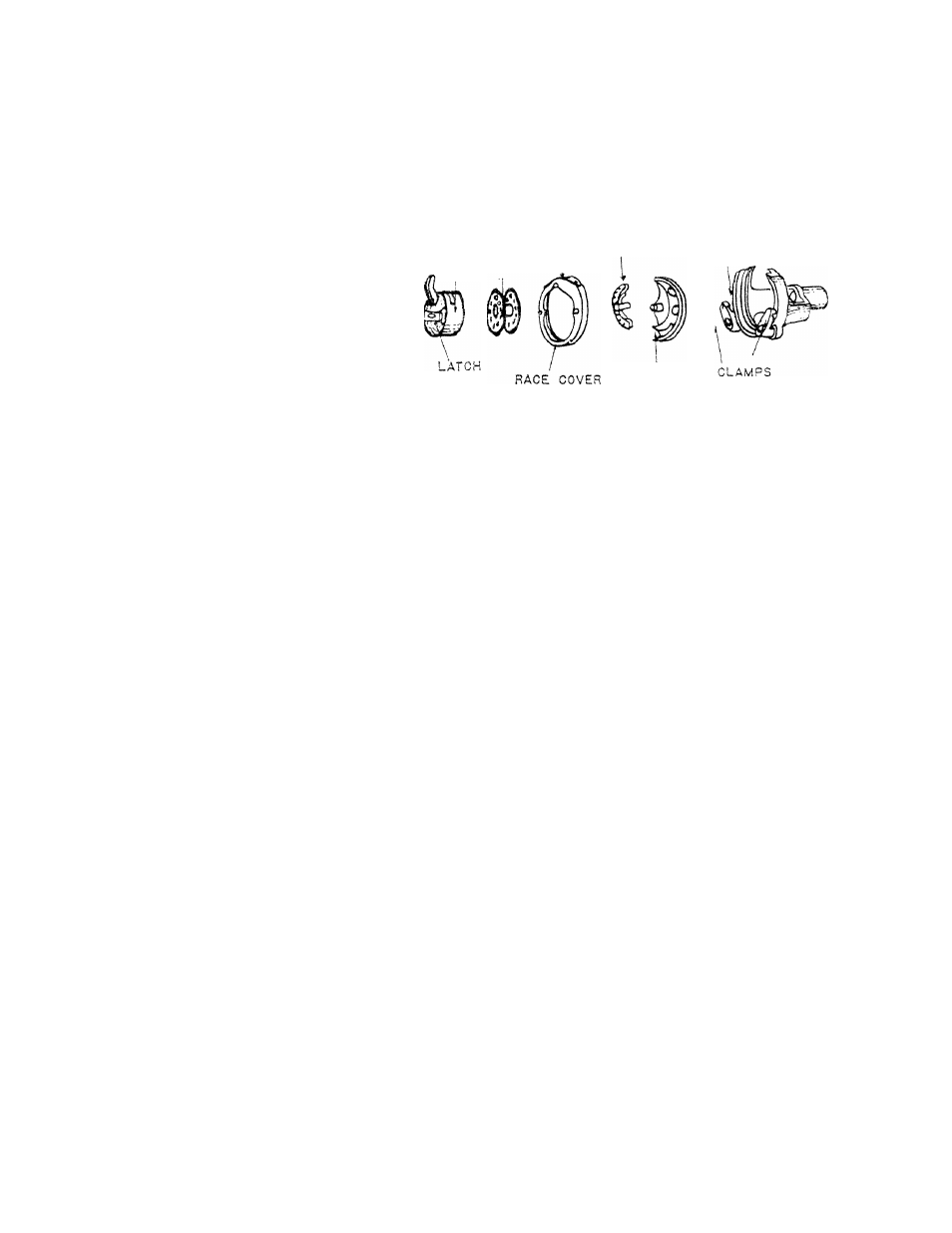

1 —With take-up lever in highest position, tilt
h e a d b a c k o n h i n g e s and remove bobbin c a s e .
lint gleaner
BOBBIN
CASE
NOTCH
BOBBIN
RACE
HOOK
' 2 — T u r n c l a m p s o u t w a r d a n d r e m o v e r a c e c o v e r .
: 3 — R e m o v e h o o k .
' 4 — C l e a n t h r e a d a n d l i n t f r o m a l l p a r t s , i n c l u d -
■ i n g r a c e .
: S — R u n a d r o p of oil along r i m o f h o o k .
: 6 — R e p l a c e shuttle, then race cover.
! S n a p c l a m p s i n t o p l a c e .
7 — G r a s p t h r e a d e d b o b b i n c a s e b y l a t c h a n d
' r e p l a c e , f i t t i n g t o n g u e i n t o n o t c h o f r a c e
: c o v e r .
