25
g y T T O M WOLES

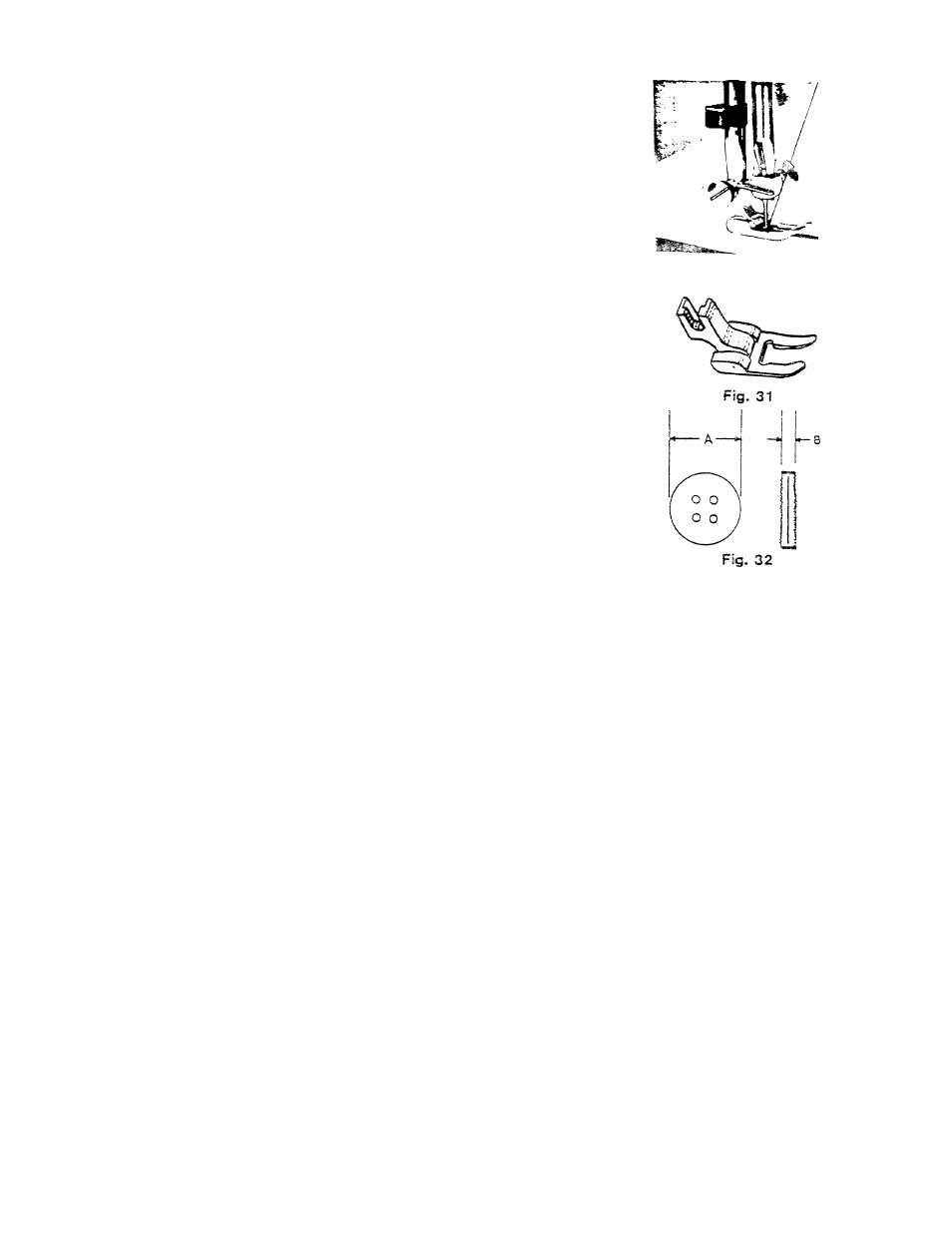

yarious widths and lengths can be made automatically by
turning the dial Fig. 2 4 ) ,
i 5 1 the correct length buttonhole required add Jainch
to the cutting 3o;vr> for bar tacks.
T o obtain the length of the cutting-space, the opening through
' the button passes, is measured by adding the width (A)
nn!
irtjcxness (3) of the button (Fig. 32,
width of the buttonhole sides are governed by the material
ysed. Set zig.zag stitch width control on number 5 for thick
materia! and a lower number for thin material,.
I\^ark the beginning and end of the buttonhole on fabric with a
basting line or tailor’s chalk. Make one on scrap fabric
foliowing diroctions 'below to be sure jtrachine adjustments- are
corrrect.
^. Replace pfasser foot with special purpose buttonhole foot.
This provides maximum visibility and allows closely spaced
stitches to feed evenly (Fig. 31 ).
2. Set needle in left position
3. Set zigzag stitch width control (C, Fig. 24) to suit material
being sewn or width of buttonhole desired (number 5 for the
widest buttonhole). .
4 . Set stitch length control (E, Fig. 24) as close to 0 as possible
without stopping the feeding action.
5. Set stretch stitch control at manual position.
Fig. 30
