CLEAMIG AND OILING THE SHUTTLE

(Se-e Figs. 6S and 66)

rha

stitch

fOfming mechanism occasionally becomes clogged with loose threads and

' i n : . T h i s w i l l i n t e r f e r e with the efficient o p e r a t i o n o f the machine. C l e a n i n g and

r e m o v a l o f t h e lint will safeguard the performance. To remove the shuttle assembly,

proceed

a s f o l l o w s :

1. Turn ‘he balance wheel until the needle reaches its highest position. Tilt head

back on its hinges.

2. Remove bobbin case (A), Fig. 65.

3. Turn the two shuttle race cover clamps (B) outward and remove the shuttle

race cover (C) and shuttle body (D).

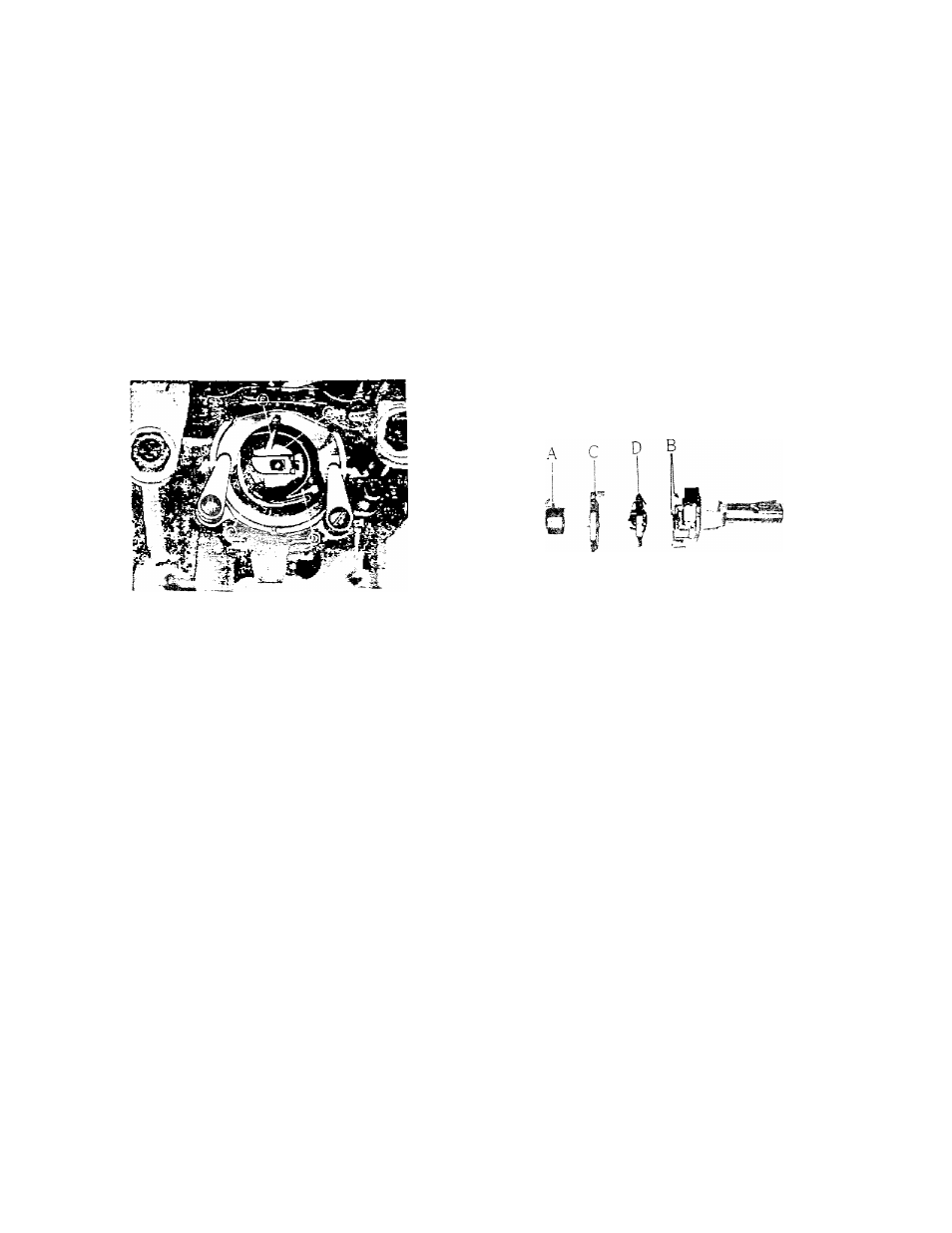

Fig. 65

Fig. 66
