SETTING THE NEEDLE

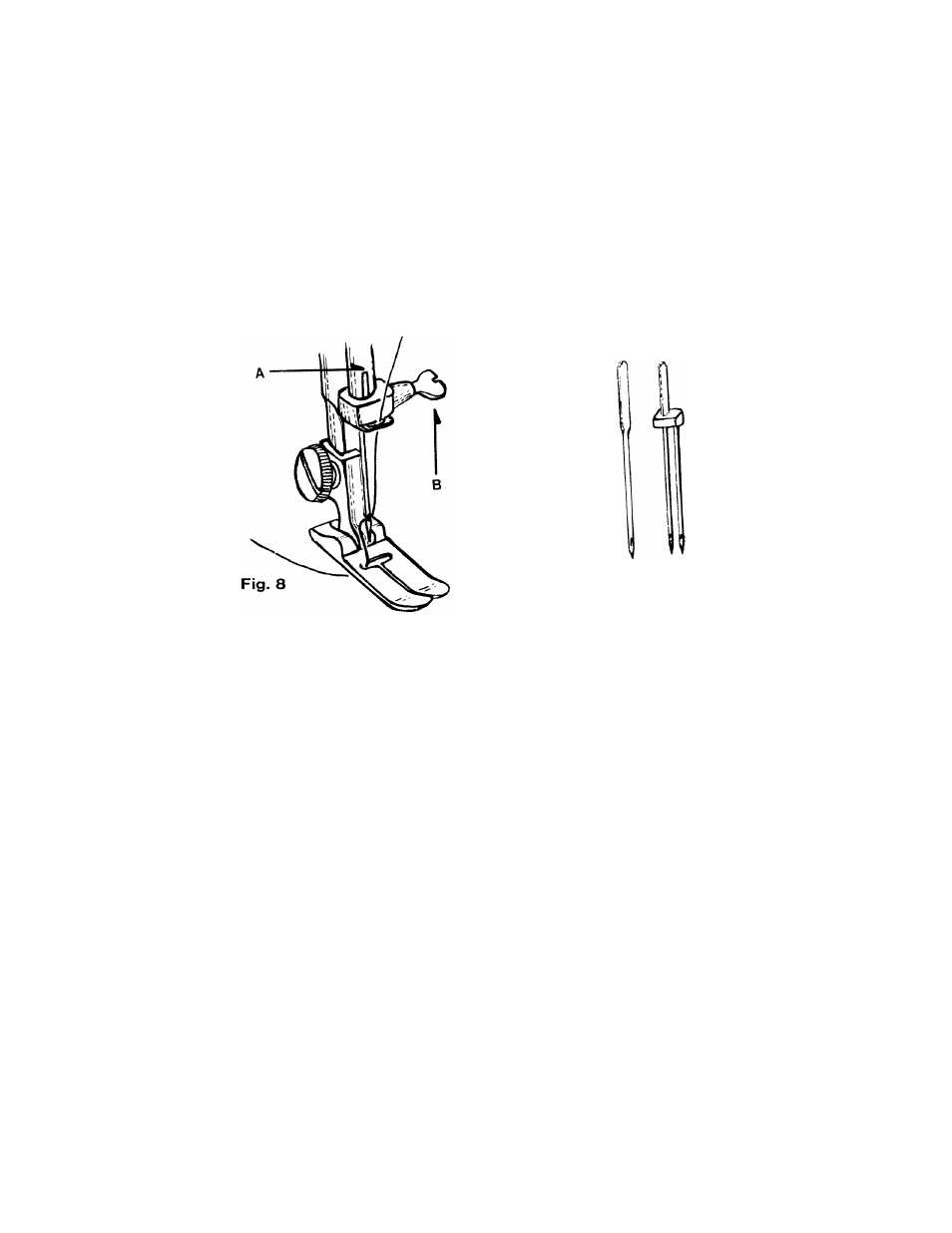

See Fig.

8 . Raise the needle bar (A) to its highest point, by turning hand wheel to»ard

you by hand. Loosen needle clamp screw B) and then needle can be removed or re

placed. When replacing needie (Flat Side to BACK, in needle clamp push ,t upward as

Lr as it will go into needle clamp hole. Tighten the Needle clamp screw (B) securely

with a screw driver.

a„„ Changing tn. n..di., m.». =n. compi...

rcvCution

o. .»a hand wheat

Is in the correct position,

by hand to be sure the neeaie is

Fig. 8-A
