thread take-up lever (5, Fig, 10) is at its

highest position, and, after removing the

lint and dust which may have accumu

lated (see instructions on page 26), apply

one drop of oil to the sewing hook race

in the bobbin case, as indicated by arrow

in Fig, 29, and a few drops to the

oil hole in Fig. 29, Then close the
slide.

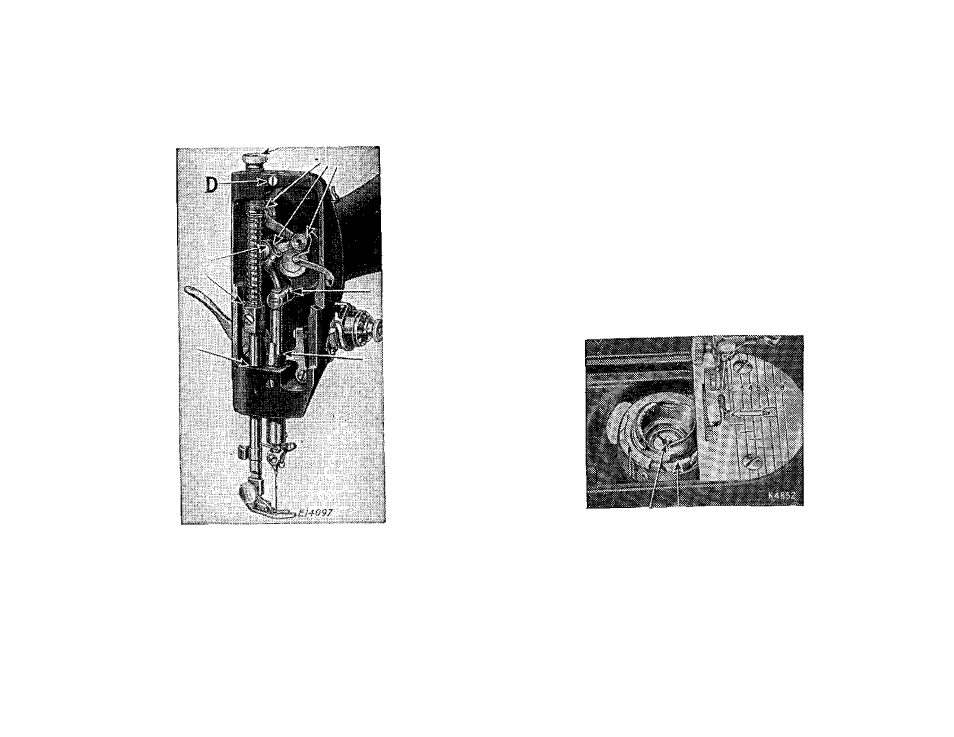

Fi^. 28. Face Plate Removed,

Showing Oiling Points.

B A

Fig. 29. Oiling the Sewing Hook,
