UPPER THREADING

K4SQ6

See Fig. 10.

Raise take-up lever 5 to its highest point.
Place spool of thread on spool pin.
Lead thread into thread guide 1.
Down and from right to left between

tension discs 2.

Into the loop of the take-up spring 3 and

to the right until it enters the fork 4.

Up and from right to left through hole

in take-up lever 5.

Down through guide 6 on face plate.
Down through guide 7 into guide 8.
From right to left through the eye of the

needle.

Draw about two inches of thread through

the eye of the needle with which to
begin sewing.

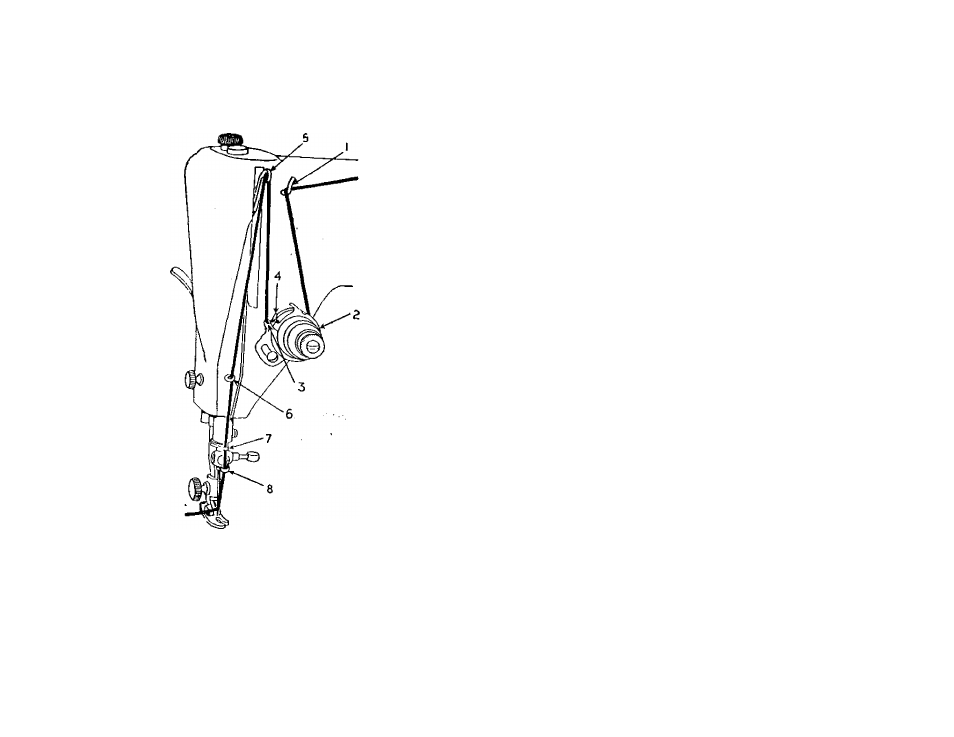

Fig. 10.
