Raise the needle to its highest point.
Draw to the left the slide (C) in the bed
of the machine and remove the bobbin
with the thumb and forefinger of the
left hand, as shown in Fig. 11.
TO REMOVE BOBBIN

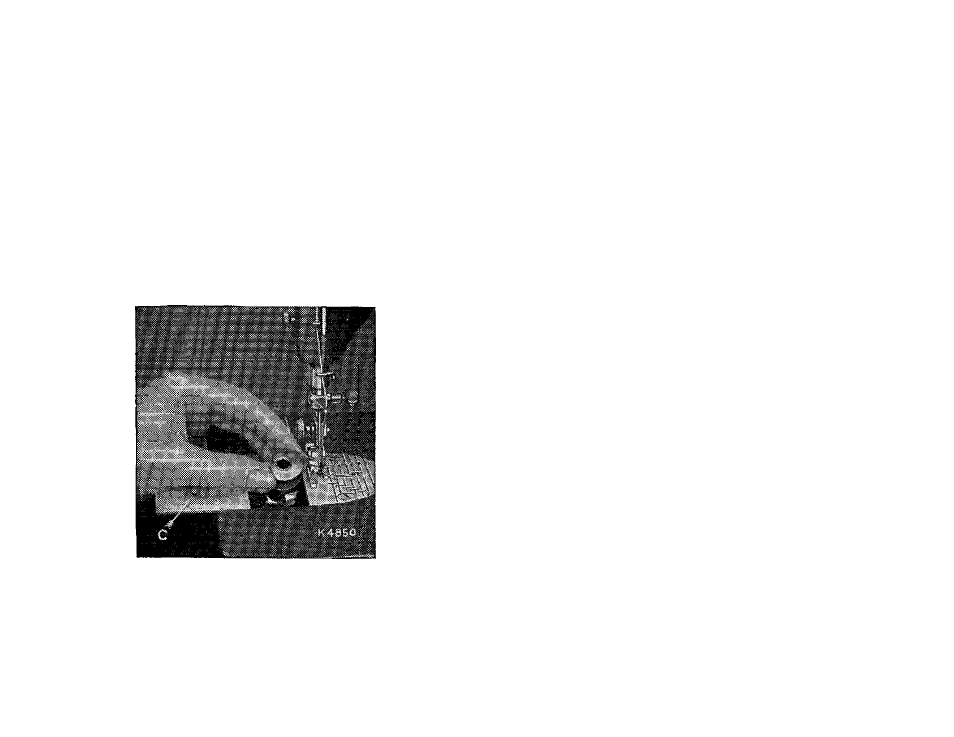

Fig. 11. Removing the Bobbin,
1. Place bobbin on spindle with pin of
spindle entering hole in right side of
bobbin.
2. Lock bobbin in place by pressing bob
bin winder down until latch 15, Fig. 12
engages.
3. Place spool of thread on spool pin 12.
Draw thread under and between
tension discs 13. Lead thread up
through hole in bobbin 14 from the
inside.
4.
Hold hand wheel 16 and loosen
knurled screw 17 by turning it over
toward you.
5.
Hold end of thread and operate
machine as for sewing. Continue to
hold end of thread until it breaks off.
Allow tension discs to control flow of
thread. Do not guide or hold thread
when winding bobbin.
The bobbin winder will stop automatically
when the bobbin is filled.
TO WIND BOBBIN.
Fig. 12.
13
