Connect the components

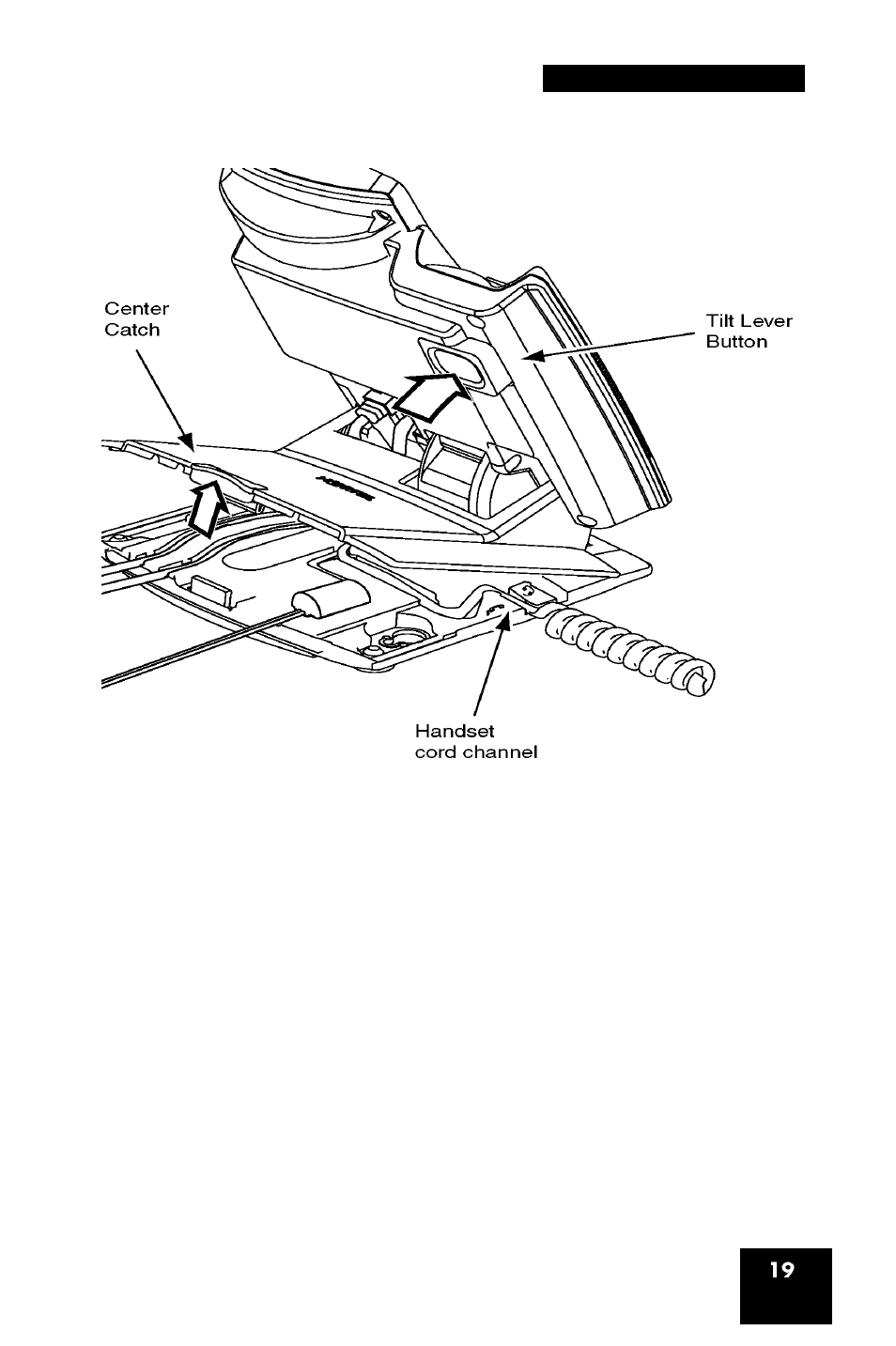

Figure 4: Remove the stand cover

2. Connect the AC power adapter (optional). Connect the AC power

adapter (not supplied) to the AC adapter jack in the bottom of the

phone (see Figure 5). Form a small bend in the cable, and then

thread the adapter cord through the channel in the stand base. Plug
the AC power adapter into the nearest AC power outlet.

Note: Your IP Phone 1110 supports both AC power and Power over

Ethernet (PoE), including IEEE 802.3af standard power. To use AC
power, use only the Nortel-approved AC power adapter (RoHS Global
Power Supply, PEC #: N0089601), which can be ordered separately.

To use Power over Ethernet (PoE) power, your connected LAN must
support PoE; an AC power adapter is not required.
