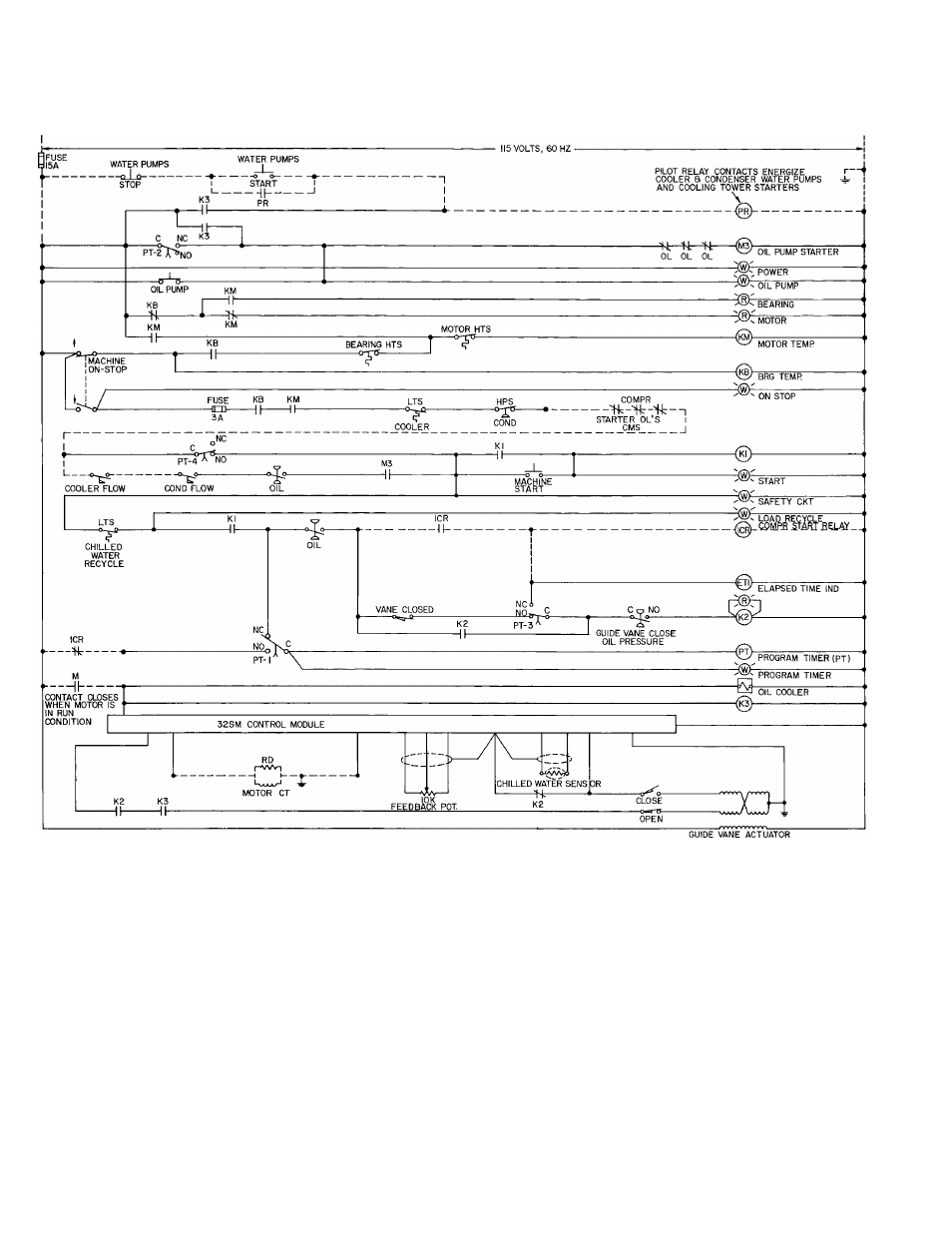

Typical control schematic
LEGEND
C
— Common
CMS
— Compressor Motor Starter
CT
— Current Transformer
HPS
— High-Pressure Cutout Switch
HTS
— High-Temperature Cutout Switch
K
— Relay
LTS
— Low-Temperature
Cutout Switch
NC
— Normally Closed
NO
— Normally Open
OL
— Overload
RD
— Signal Resistor
o
Component Terminal
__ ____ Factory Wiring
—------ Field Wiring
A Junction
46
