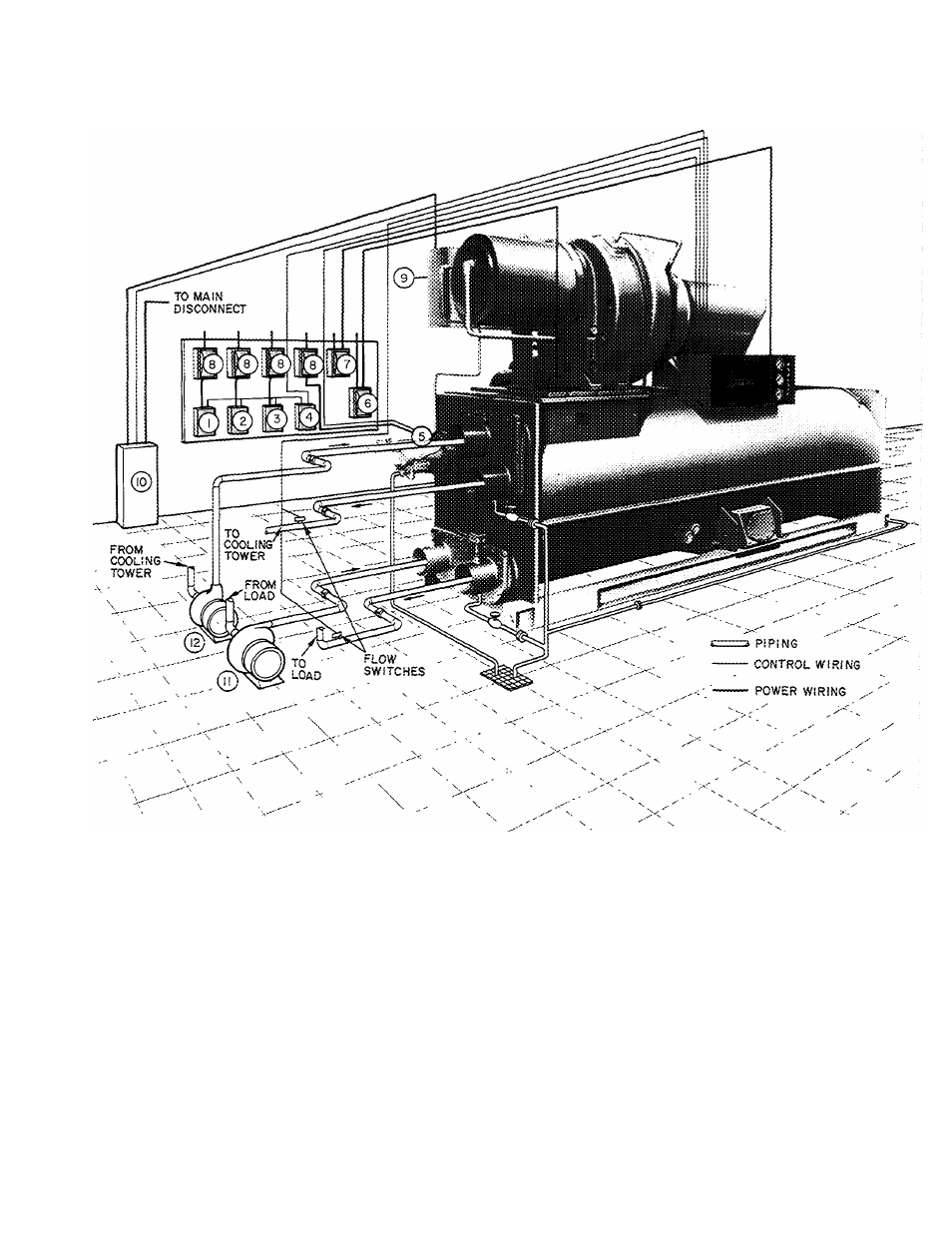

Typiceil piping and wiring
LEGEND
— Cooling Tower Fan Starter
Condenser Water Pump Starter
Cooler Water Pump Starter
Pilot Relay
— Oil Pump Starter
6 — Fused Disconnect for Oil Heater and Thermostat
7
— Fused Disconnect for Purge System
8 — Fused Disconnect
9
— Compressor Motor Terminal Box
10 — Compressor Motor Starter
11
— Cooler Water Pump
12
— Condenser Water Pump
NOTES:
1
2
3
4
5
1
Wiring and piping shown are for general point-of-connection only
and are not intended to show details for a specific installation
Certified field wiring and dimensional diagrams for specific 19
Series machines are available on request
All wiring must comply with applicable codes
Refer to Carrier System Design Manual for details regarding piping
techniques
A separate 115-volt fused power source for controls is required
unless compressor motor control is furnished with a transformer
Provide a separate fused 115-volt power source for oil heater and
thermostat
