2-3 7000 Series ATSs Connectivity Module

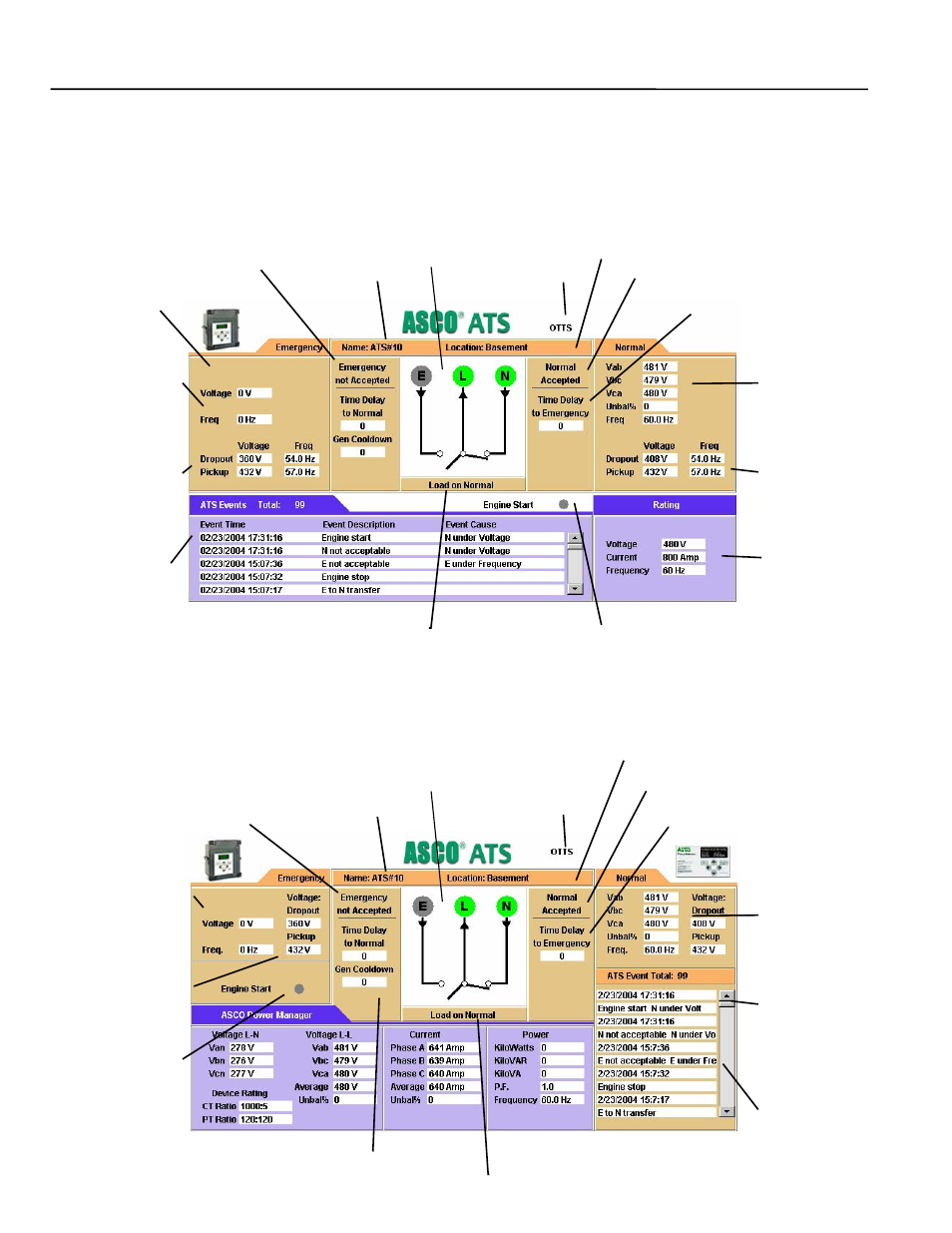

Detail Screen for 7000 & 4000 Series ATSs
The Detail Screen for 7000 & 4000 Series ATSs shows the switch location,
ratings, timer settings, actual timer values, pickup and dropout settings, event
logging, and other status indications.
Detail Screen for 7000 & 4000 Series ATSs with a Power Manager
The Detail Screen for 7000 & 4000 Series ATSs shows the switch location,
ratings, timer settings, actual timer values, pickup and dropout settings, event
logging, and other status indications.
Actual voltage
& frequency
readings from
ATS controller.
Load connected to Normal or Emergency Source
ATS events
(date & time,
Description,
and cause)
ATS ratings
Engine start signal (red means active)
ATS location
ATS name
Voltage &
frequency
settings in ATS
controller.
Status of
Emergency
Source
Actual voltage
& frequency
readings from
ATS controller.
Voltage &
frequency
settings in ATS
controller.
ATS type
Active time delays
Active time delays
Status of Normal Source
ATS one-line icon shows position & source status (green or red circle
means source is acceptable, grey circle means source is not acceptable)
Actual voltage
& frequency
readings from
ATS controller.
Load connected to Normal or Emergency Source
ATS events
(date & time,
Description,
and cause)
Engine start signal
(red means active)
ATS location
ATS name
Voltage &
frequency
settings in ATS
controller.
Status of Emergency
Source
Actual voltage
& frequency
readings from
ATS controller.
Voltage &
frequency
settings in ATS
controller.
ATS type
Active time delays
Active time delays
Status of Normal Source
ATS one-line icon shows position & source status (green or red circle
means source is acceptable, grey circle means source is not acceptable)
