5-1 Stand-Alone Power Managers Connectivity Module
Device Configurator Screen for Power Manager
If a stand-alone Power Manager is used, a button appears on the lower left
corner of the Connectivity Module Device Configurator screen. Press the
Config PM button to display the Power Manager Configuration screen
(right side).

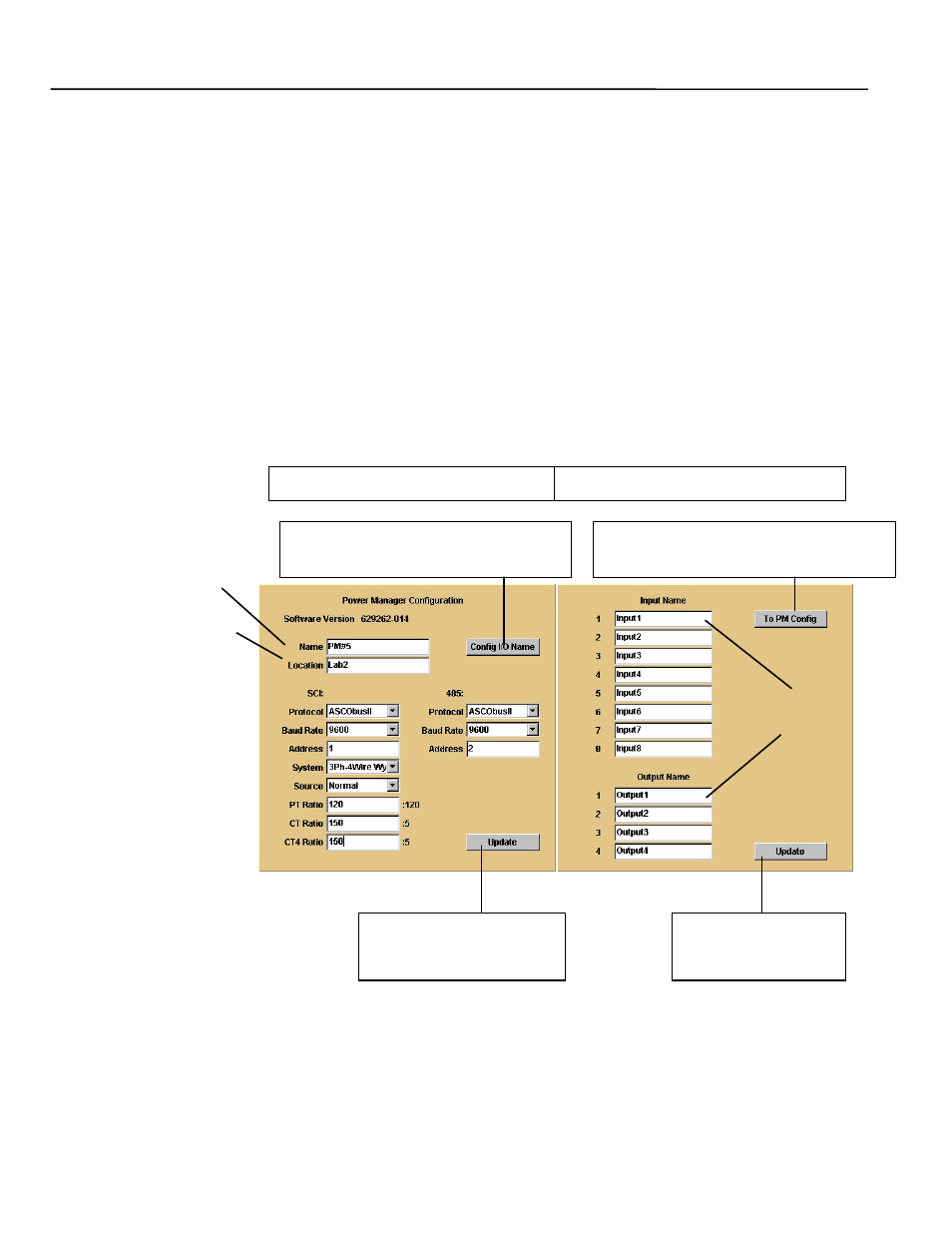

Power Manager Configuration
Enter or change the Power Manager Name and Location. Several
configuration settings must be set appropriately as described below. Press the
Update button when finished to save the PM configuration changes.
Input Name & Output Names
Press the Config I/O Name button to display the Input Name and Output
Name screen. Enter or change the names of the inputs and outputs. Press the
Update button when finished to save theses names.
Input names
Input & Output Names Power Manager Configuration
Press Update button
when finished to save
the names. Press Update button
when finished to save the
configuration changes.
Press Config I/O Name button to
display Input & Output Names screen. Press To PM Config button to return to
Power Manager Configuration screen.
Output names
PM Name
PM Location
