Connectivity Module Series 300 ATSs 3-3

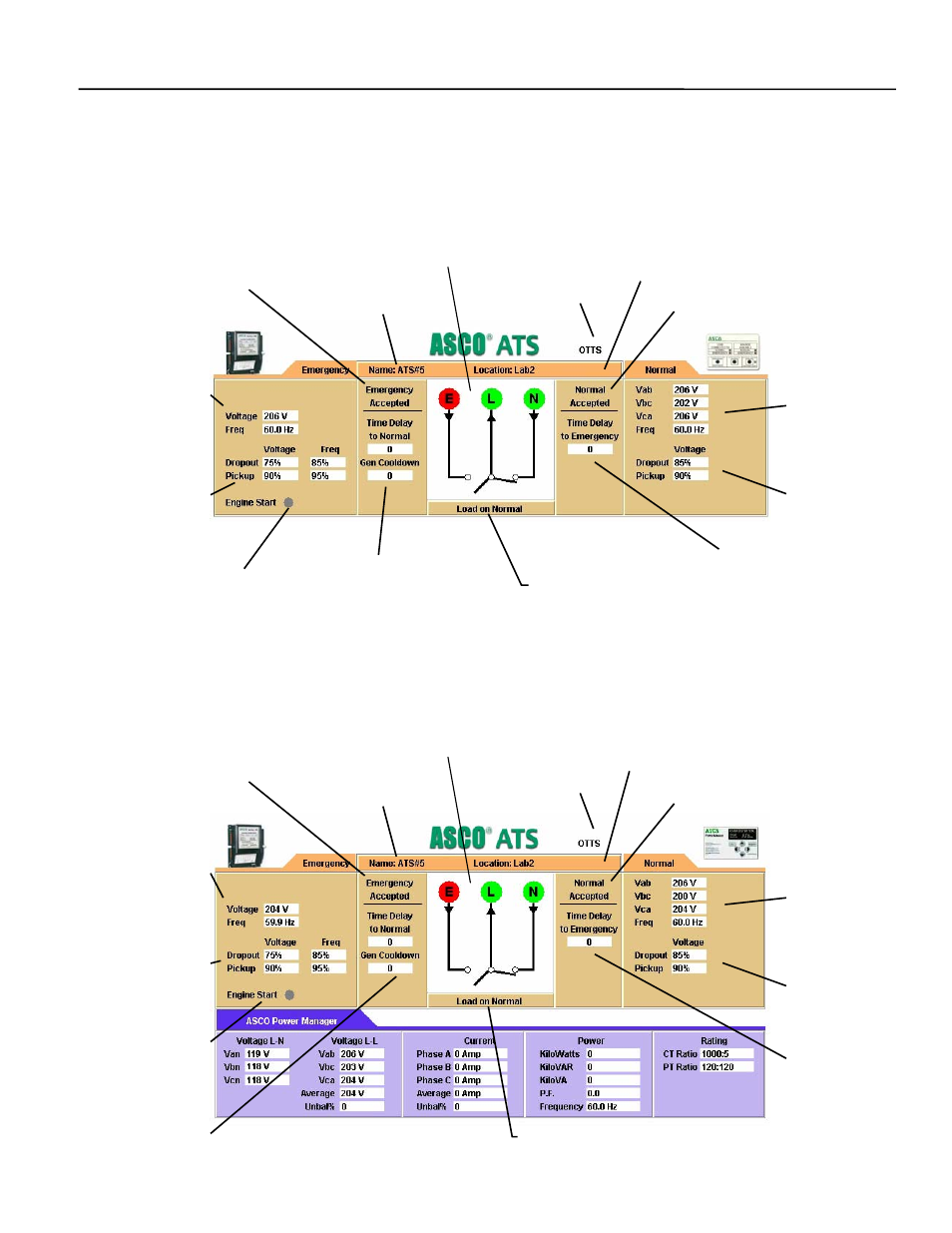

Detail Screen for Series 300 ATSs
The Detail Screen for Series 300 ATSs shows the switch location, ratings,
timer settings, actual timer values, pickup and dropout settings, and other
status indications.
Detail Screen for Series 300 ATSs with a Power Manager
The Detail Screen for Series 300 ATSs shows the switch location, ratings,
timer settings, actual timer values, pickup and dropout settings, and other
status indications.
Actual voltage
reading from
ATS controller.
Load connected to Normal or Emergency Source
Engine start signal
(red means active)
ATS location
Status of Normal Source ATS name
Voltage &
frequency
settings in ATS
controller.
Status of
Emergency Source
Actual voltage
& frequency
readings from
ATS controller.
Voltage &
frequency
settings in ATS
controller.
ATS type
Active
time delays Active time delays
ATS one-line icon shows position & source status (green or red circle
means source is acceptable, grey circle means source is not acceptable)
Actual voltage
reading from
ATS controller.
Load connected to Normal or Emergency Source
Engine start
signal (red
means active)
ATS location
Status of Normal Source ATS name
Voltage &
frequency
settings in ATS
controller.
Status of
Emergency Source
Actual voltage
& frequency
readings from
ATS controller.
Voltage &
frequency
settings in ATS
controller.
ATS type
Active
time delays
Active
time delays
ATS one-line icon shows position & source status (green or red circle
means source is acceptable, grey circle means source is not acceptable)
