2-1

7000 Series ATSs

Connectivity Module

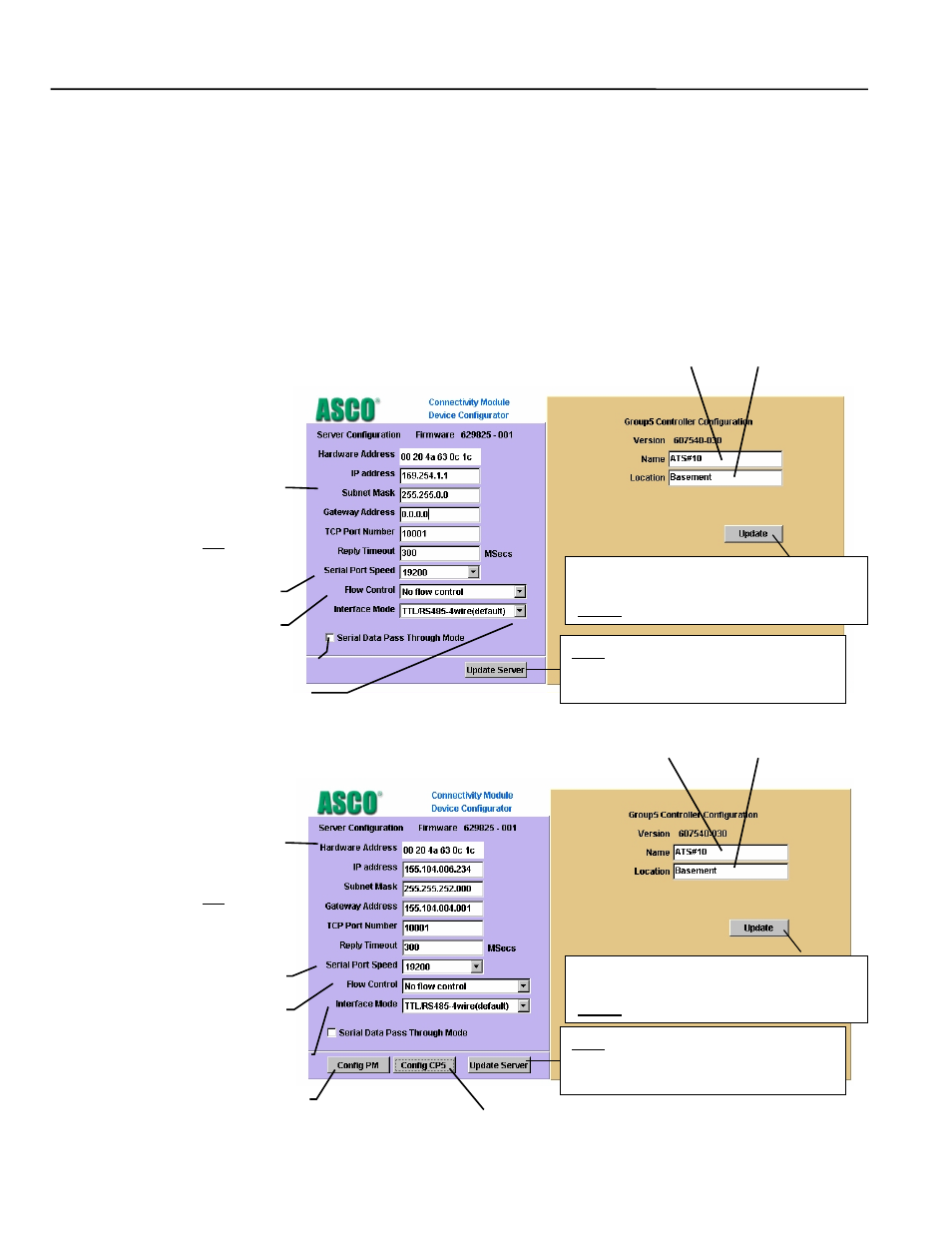

Device Configurator Screen for 7000 & 4000 Series ATSs

The Device Configurator Screen for 7000 & 4000 Series ATSs shows the Group 5 controller configuration
settings (right side) and Connectivity Module (server) configuration settings (left side) for the selected ATS.

Group 5 Controller Configuration (right side)
Enter or change the ATS Name (8 char. max.)and the ATS Location (20 char. max.). Press the Update
button when finished to save the controller configuration changes.

Connectivity Module (server) Configuration (left side)
Several configuration settings must be set appropriately as described below. Press the Update Server button
when finished to save configuration changes.

Device Configurator Screen without Power Manager

Device Configurator Screen with Power Manager

ATS Location

ATS Name

Serial Port Speed 19200

Consult with your network
administrator for these 4 settings:
IP Address
Subnet Mask
Gateway Address
TCP Port Number
(Range of ports allowed is:
10024-65535, but do not use
ports 14000-14009 or 30718)

Press Update button when finished to
save the configuration changes. Do this
before you press Update Server button.

After Controller or PM has been
updated, press Update Server button
to save the configuration changes.

Flow Control No flow control

Interface Mode RS422/485-4Wire
