5-3 Stand-Alone Power Managers Connectivity Module

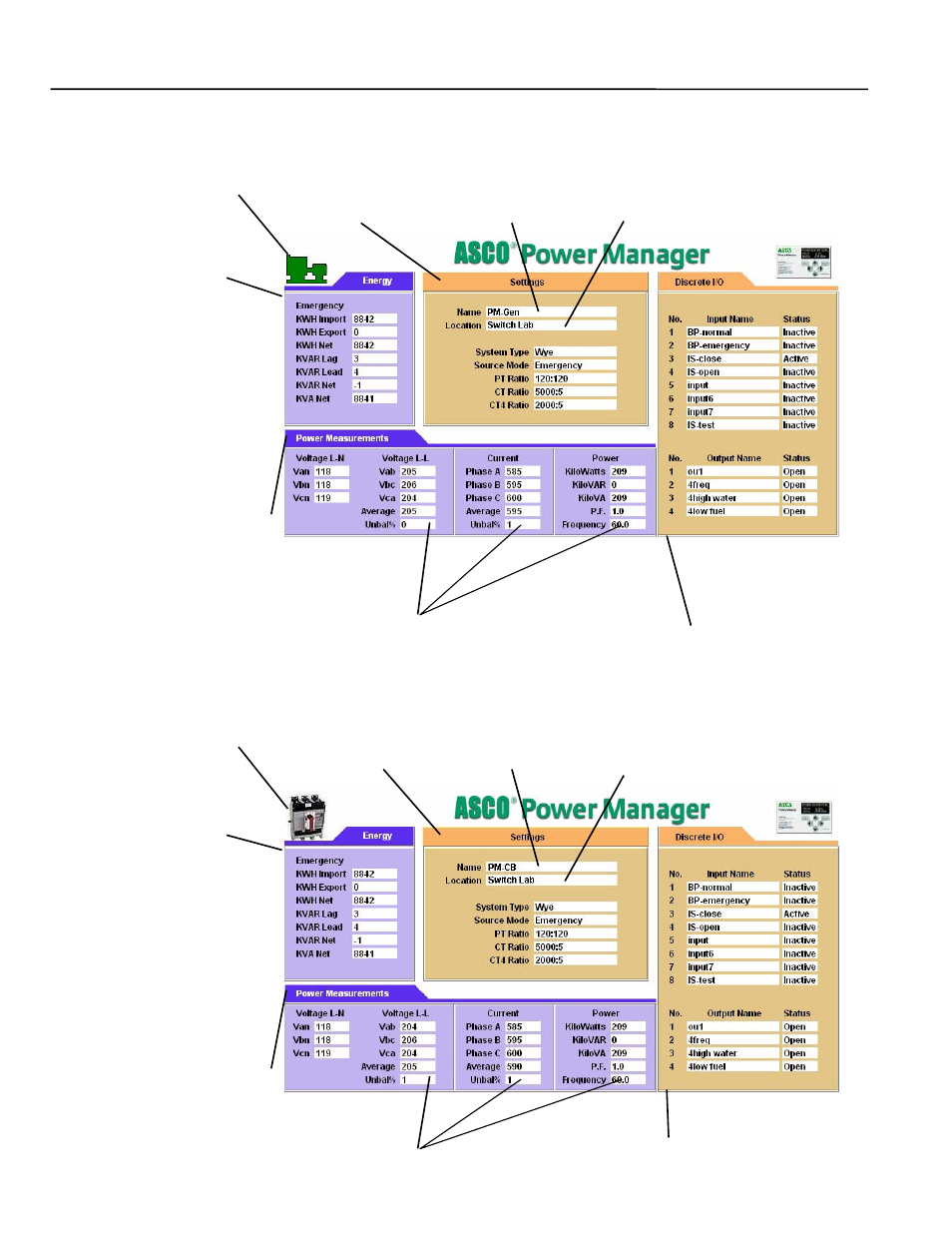

Detail Screen for Power Managers connected to a Generator
The Detail Screen for Power Managers shows energy levels, power
measurements, settings, discrete I/O status, and other status information.
Detail Screen for Power Managers connected to a Circuit Breaker
The Detail Screen for Power Managers shows energy levels, power
measurements, settings, discrete I/O status, and other status information.
Energy
levels
Discrete Input / Output
name & status information
PM name PM location
Power
measurements
Settings
Actual voltage, current, and
power readings from the PM.
Energy
levels
Discrete Input / Output
name & status information
PM name
PM location
Power
measurements
Settings
Actual voltage, current, and
power readings from the PM.
Gen-set icon appears if
Power Manager
address is set to 33-43.
CB icon appears if
Power Manager
address is set to 52.
