9 | VWA 5000 Series-Installation Guide
U
SING THE
VTR7300 C
ONTROLLERS FOR
N
ETWORKED
S
YSTEMS

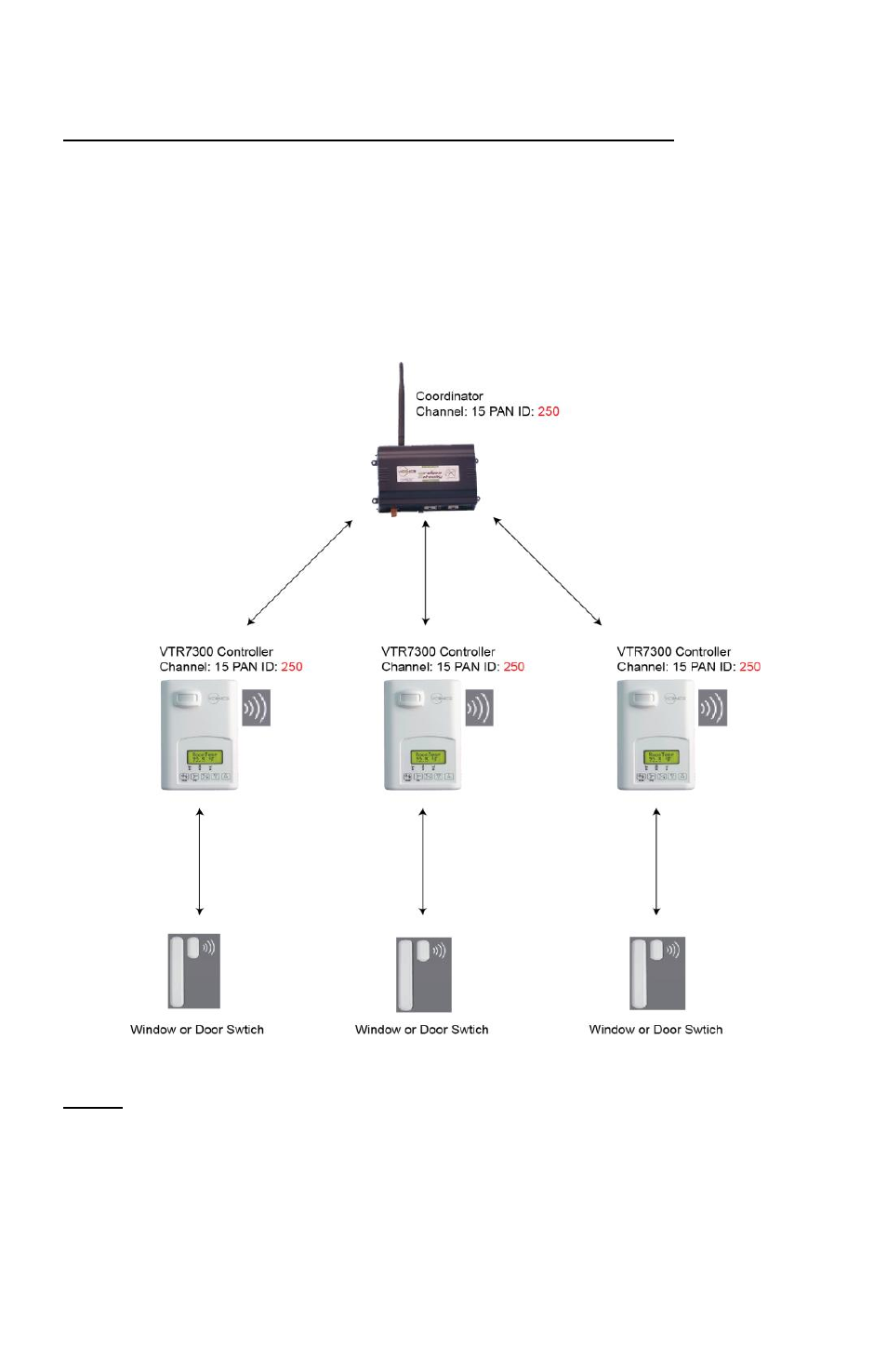

When PAN ID is used with a range of 1 to 500, for Networked Systems
In this application, any controller(s) are simply routers to the system. The VWG or Jace-
Driver is the coordinator to the system. I.E. the VWG or Jace-Driver is the network master
for ANY controller(s) reporting to them.

Wireless controller factory default Channel & PAN ID = controller(s) offline.

VWG Jace-Driver is the network coordinator.

VTR7300 controllers act as a router.

Range of PAN ID on all controllers to use 1 to 500. Reserved for networked
system operation.
Notes:
- Each controller uses same PAN ID and Channel as VWG / Jace-Driver
coordinator.
- VWG / Jace-Driver supports network integration for required GUI / System /
Status objects.
- Up to 20 switches can be linked to each VTR7300 Controller.
