2 | VWA 5000 Series-Installation Guide
I
NSTALLATION

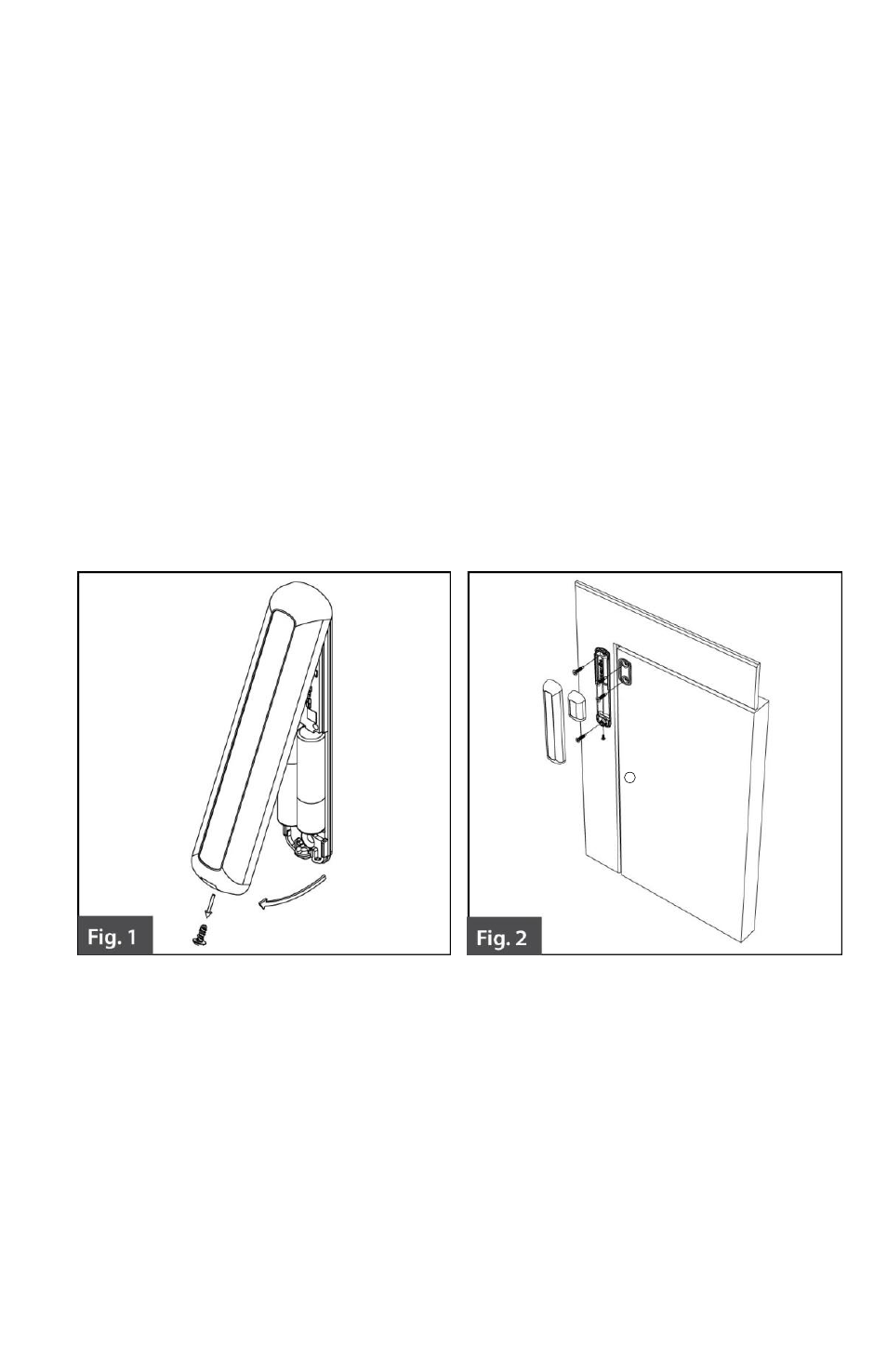

 Remove cover by pulling on the side where the security screw was mounted (Fig. 1).
 Remove cover of magnet unit.
 Please read the FCC ID and IC label installed in the cover upon removal of cover.
 Prepare and cut the mounting template supplied at the end of this manual for optimal
performance.
 Do NOT place on hinge side of the door. (Unless self tested)
 Set the template as required and mark the required 4 hole locations for the self
tapping screws.
 Use the provided 4 self tapping screws to install both the switch and magnet base
(Fig.2).
 Follow the pairing process instructions before installing both the switch and magnet
units.
 Once the pairing process is successful, install both the switch and magnet units.
 Install the security screw on the switch.
S
ELF
T
ESTING
For best practice, the configuration of the wireless switch and magnet unit should be
configured as shown above. The mounting template at the end of this document should
also be used. Other configurations can be done such as placing the devices on the top of
the door placed horizontally. However, it is very important to self test the wireless switch
to ensure that it is working properly.
