4 | VWA 5000 Series-Installation Guide
O
PERATION
O
VERVIEW
The VWA5000W series
Zigbee™ wireless switches are
used in conjunction with the
wireless
versions of the
VTR73XX Series Fan Coil
Terminal Equipment Controllers.

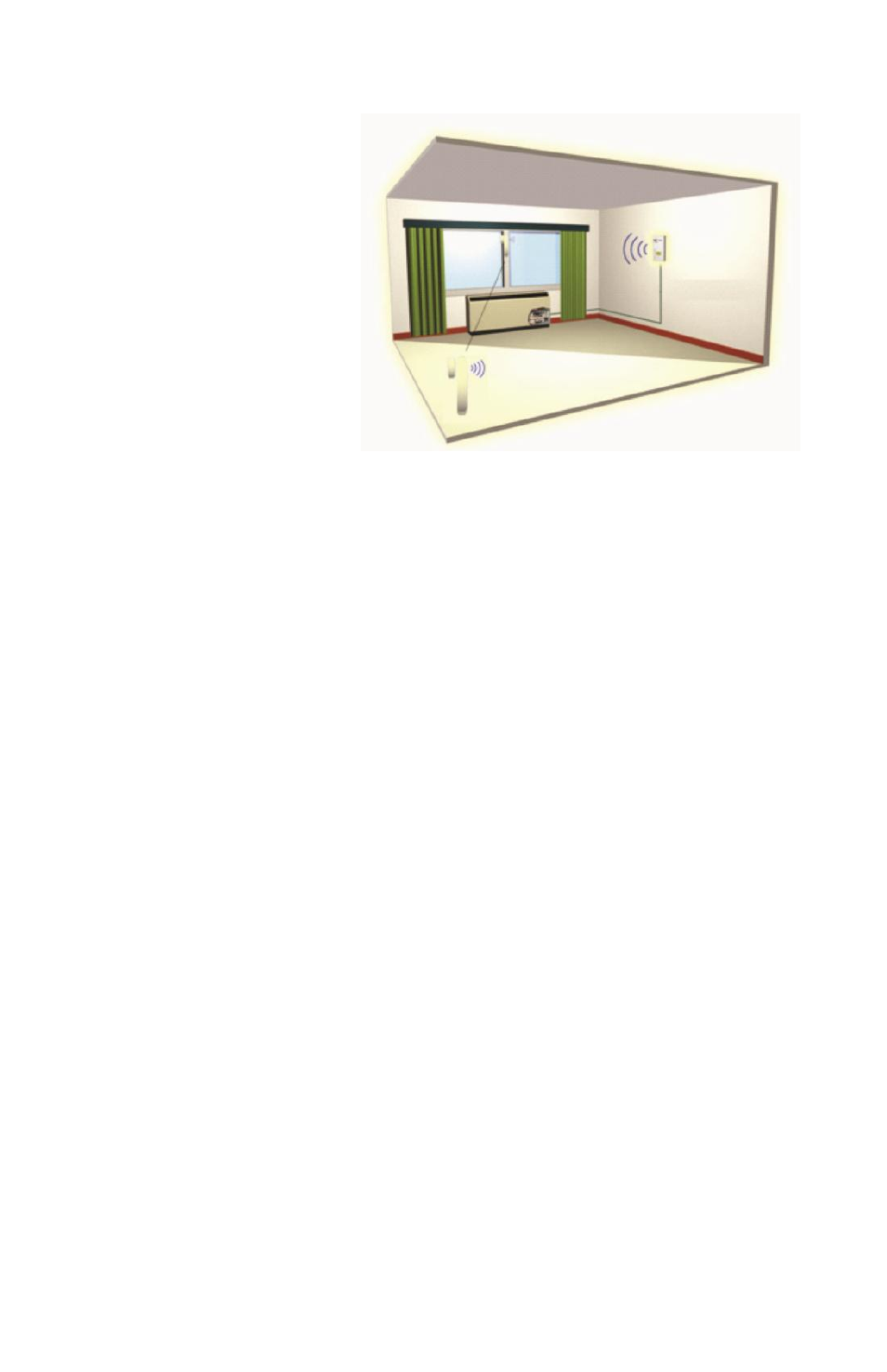

A typical hospitality application
is where the VTR73xx wall
terminal equipment controller
has an on-board PIR sensor
and wireless switches are used
to monitor opening and closing
of entry doors & windows.
Wireless door switches used
with the local VTR73xx PIR
cover provide advanced local occupancy routines allowing for increased energy savings
during occupied hours without sacrificing occupant comfort.
Wireless window switches are used to monitor outside windows and or patio and balcony
doors being opened or closed. This allows preventing unnecessary energy consumption
by the tenants.
Typical applications of VTR73xx Series Fan Coil Terminal Equipment Controllers with
VWA5000W series
Zigbee™ wireless switches can be used in network ready mode with
or without integration to a central management system to allow for advanced functions
such as central reservation occupancy functions.
A combination of up to twenty VWA5000W door and or window switches can be used
simultaneously with a single VTR73xx Series Fan Coil Terminal Equipment Controller.
The VWA5000W switches are factory delivered with 2 AAA batteries and are ready to be
installed, configured and used right out of the box. Due to the extremely small current
consumption of the switches, the expected battery life is approximately 10 years and is
equivalent to the battery shelf life.
No tools are required for commissioning or servicing the door switch. A very simple
interface with an on-board LED & hidden switch provide all the required functions for
local interaction. Local information for battery life and connectivity (heartbeat) are
provided at the VTR73xx Series Fan Coil Terminal Equipment Controller local display
level or through the
Zigbee™ wireless network.
Each switch is also factory supplied with a magnet, a locking security tamper proof screw
and self tapping mounting screws for installation.
