11 | VWA 5000 Series-Installation Guide
S
TEPS TO
A
SSOCIATE
S
WITCHES WITH
C
ONTROLLERS
1) Pull off the pull tab from the battery holder to power the switch.
2) Verify or set configuration
parameter “BI1” or “BI2” to “None”.
This sequence will erase the current associated devices.
3) S
et the configuration parameter “BI1” to “Window” & “BI2” to
“DoorDry” as required.
4) If previously associated, to reset the wireless switch to its factory

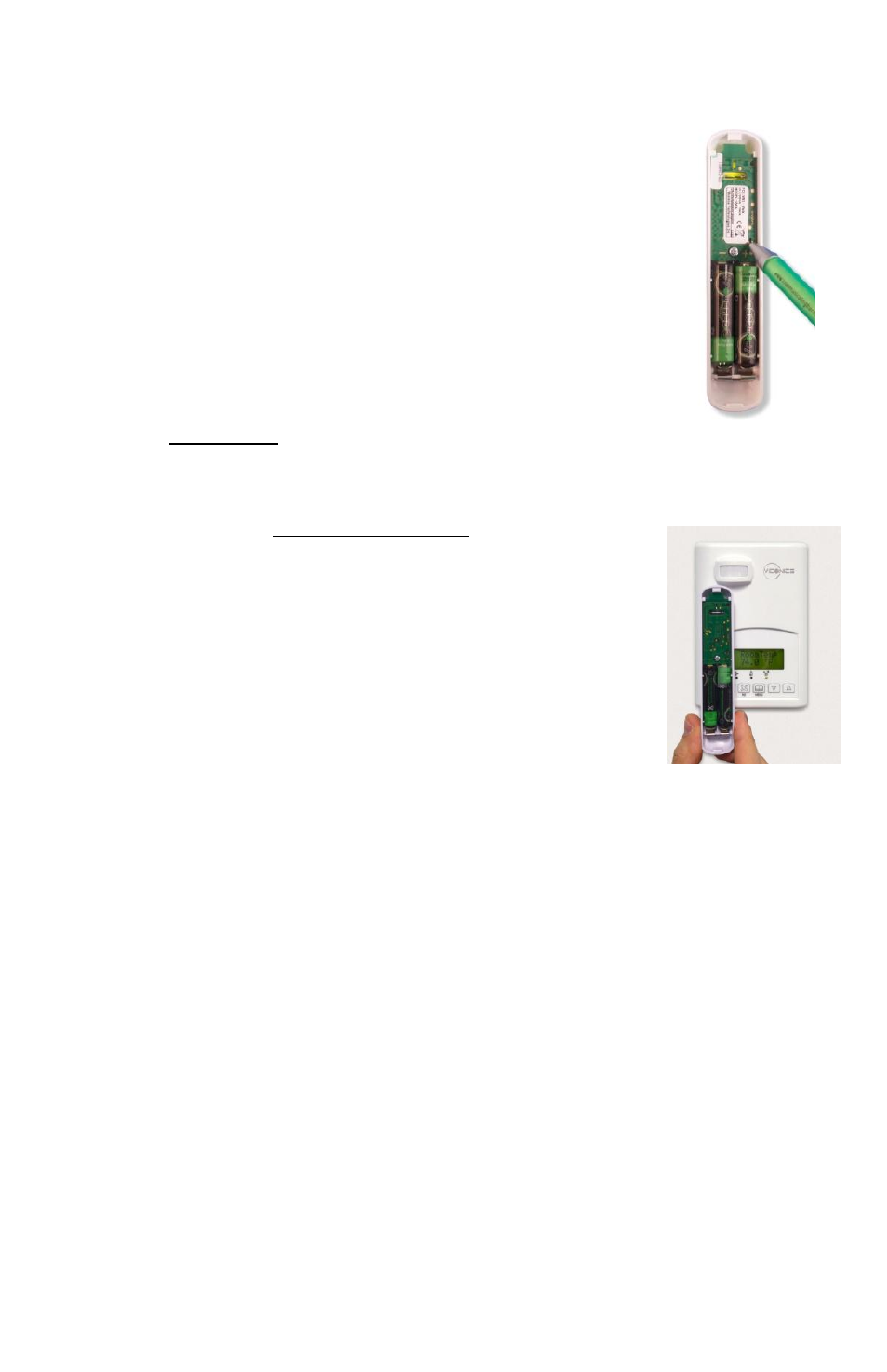

default settings, simply short the switch (use a metal ball point pen)
and hold for 20+ seconds. 5 short blinks will confirm reset. (See
Fig.5)
5) Short the switch once for less than 3 seconds then bring the
switch to the left of the controller where the COM module is located.
Hold the switch as close to the controller as possible during the
pairing process. (See Fig.6)
6) The LED will display 1 long blink followed by a short blink to
indicate that the switch is in pairing mode.
7) The LED will now display 2 short blinks in succession. Make sure
to place it closely to the COM module of the controller.
8) The LED will now display 5 short blinks to indicate that the switch
has been paired.
9) Quickly short the switch and the LED will display a blinking pattern which matches the
corresponding MAC address:
Example: MAC = 43 if the LED shows 4 short blinks followed by a pause and another 3
short blinks.
