6 | VWA 5000 Series-Installation Guide

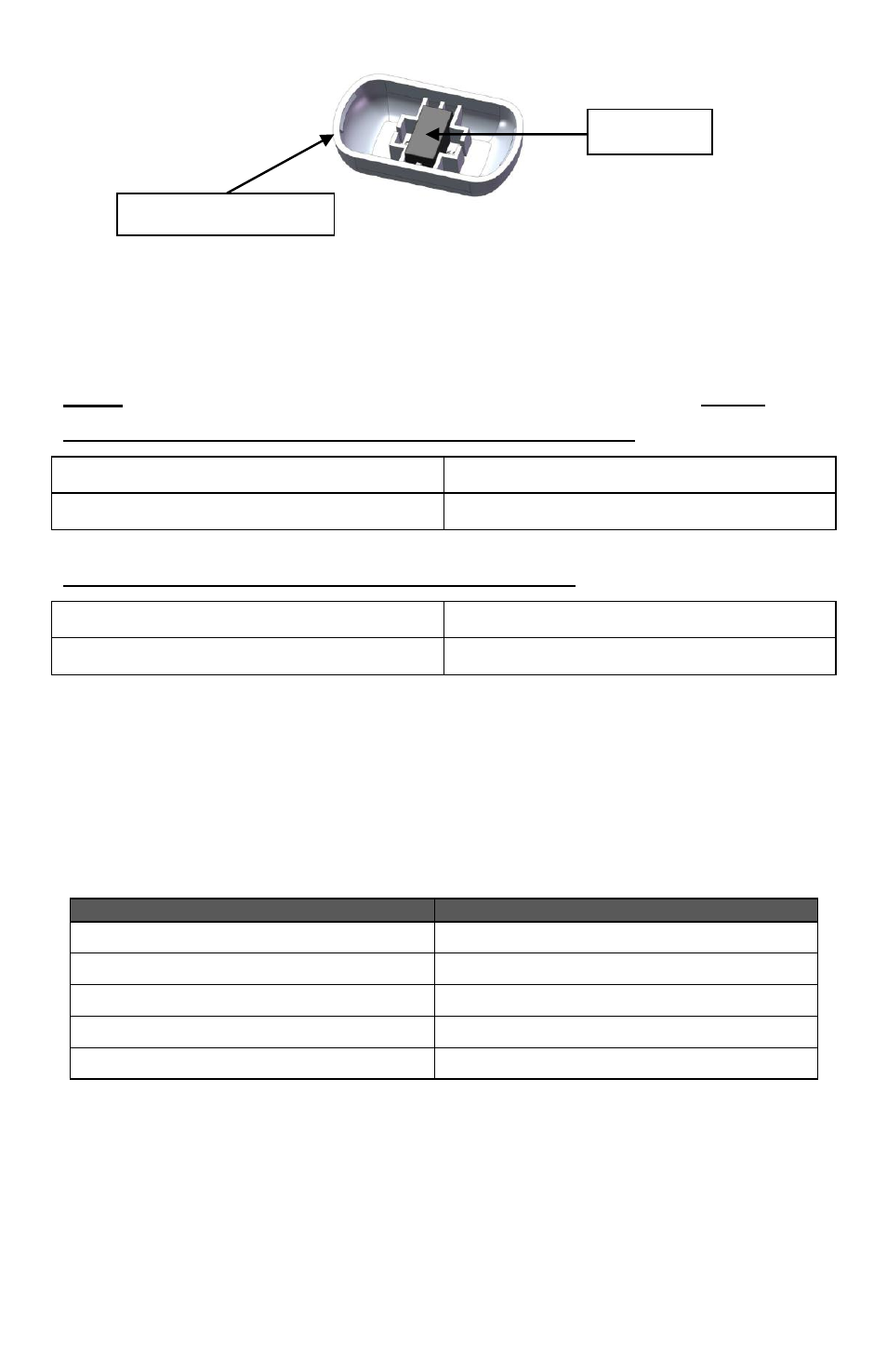

Fig.5
– Magnet Components and Proper Magnet Orientation
P
AIRING
P
ROCESS
P
ROCEDURE
NOTE: (See the VTR / VT installation manual for details on the parameter “PAN ID”).
(PAN ID for centralized networked applications with VWG or JACE):
VTR7300 Series VT 72 / 73 Series*
1 to 500 1 to 250
(PAN ID for stand-alone applications with no VWG or JACE):
VTR7300 Series VT 72 / 73 Series*
501 to 1000 251 to 500
* Special note for all VT 72 / 73 series controllers. A specific firmware (BETA
version) is needed for the VT 72 / 73 to be compatible with wireless switches.
Please contact customer service for more details.
C
ONFIGURING
A
CTIONS
Short the Switch for Result
Aprox. 1 second Enter Pairing Mode (See page 10)
Aprox. 1 second (after being paired) Displays the MAC address (See page 10)
4+ seconds and less than 10 seconds Battery Status (See page 13 )
10+ seconds and less than 20 seconds Diagnostic Mode (See page 12)
20+ seconds Resets the Switch
Magnet Housing
Magnet
