7 | VWA 5000 Series-Installation Guide
U
SING THE
VTR7300 C
ONTROLLERS FOR
S
TAND
-
ALONE
S
YSTEMS
When PAN ID is used with a range of 501 to 1000, for Stand-Alone Systems

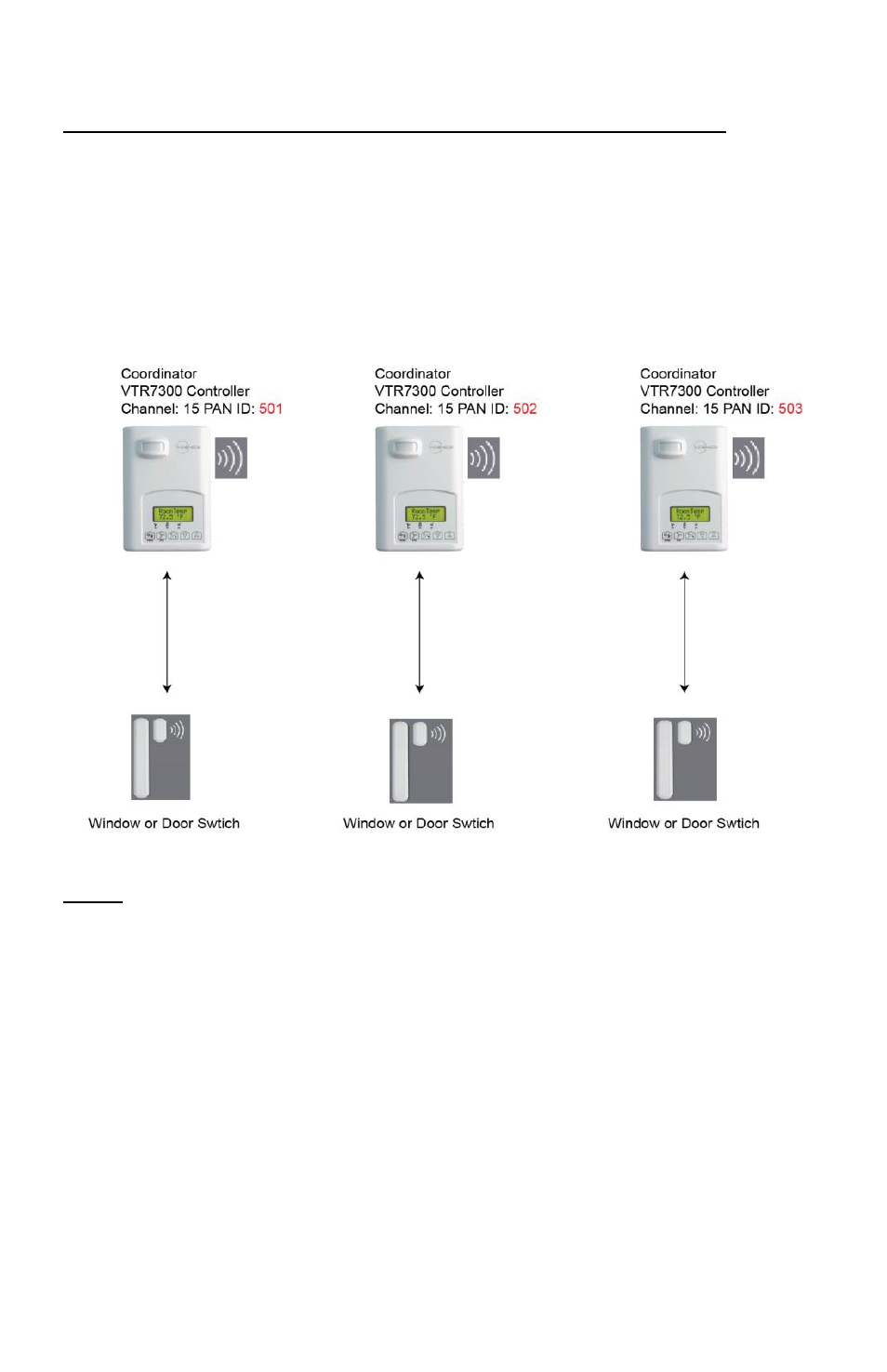

In this application, the VTR7300 controller(s) are the coordinators to their own system. I.E.
They are the network masters for each wireless switch reporting to them. A unique
network is needed for proper functionality.

Wireless controller factory default Channel & PAN ID = controller(s) offline.

Each VTR7300 controller is its own network coordinator.

Range of PAN ID on all controllers to use is 501 to 1000. This range is reserved
for stand-alone system operation.
Notes:
- Each VTR7300 Controller uses a unique PAN ID and / or Channel settings.
- If all available PAN
ID’s are used (501-1000), use a different channel.
- Up to 20 switches can be linked to each VTR7300 Controller.
- The MAC address is only used to confirm parent pairing.
