19 | PIR Ready VT7300-2572 Series

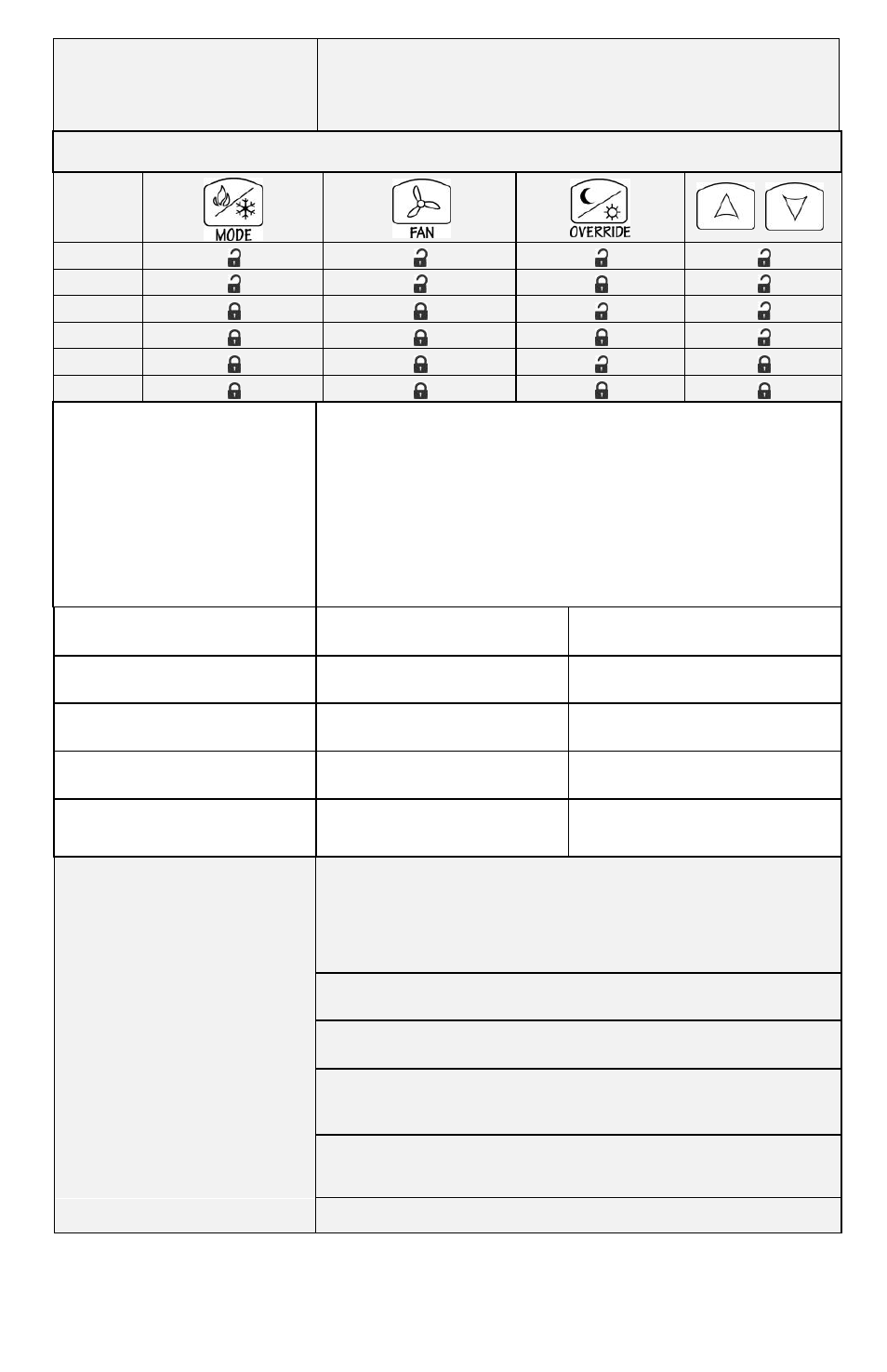

Lockout
Keypad lockout levels
Default value = 0 No lock
USER KEY FUNCTIONS
LEVEL
0
1
2
3
4
5
SeqOpera Sequence of
operation
Default is: Sequence #1
Selects the initial sequence of operation required by the
installation type and the application
SEQUENCE OF OPERATION SYSTEM = 2 PIPES SYSTEM = 4 PIPES
0 = Cooling Only Off - Cool 0 = Cooling Only
1 = Heating Only Off - Heat 1 = Heating Only
2 = Cooling With Electric
Reheat
Off
– Auto – Heat – Cool
2 = Cooling With Electric
Reheat
3 = Heating With Electric
Reheat
Off - Heat
3 = Heating With Electric
Reheat
Fan Menu
Mode button menu
configuration
Default is: Menu #4
Menu displayed are dependent on model used and sequence
of operation selected.
Auto Mode operation for sequences 2 and 3 is dependent on
Auto Fan parameter.
0 = Low-Med-High 3 Speed configuration (2.0Vdc, 6.0Vdc, 10.0Vdc)
1 = Low-High 2 Speed configuration (2.0Vdc, 10.0Vdc)
2 = Low-Med-High-Auto
3 Speed configuration with Auto fan speed mode (2.0Vdc,
6.0Vdc, 10.0Vdc or modulating 2.0 to High AO2 Parameter )
3 = Low-High-Auto
2 Speed configuration with Auto fan speed mode
(2.0Vdc,10.0Vdc or modulating 2.0 to High AO2 Parameter )
4 = Auto Fan modulating 2.0Vdc to 10.0Vdc
