13 | PIR Ready VT7300-2572 Series

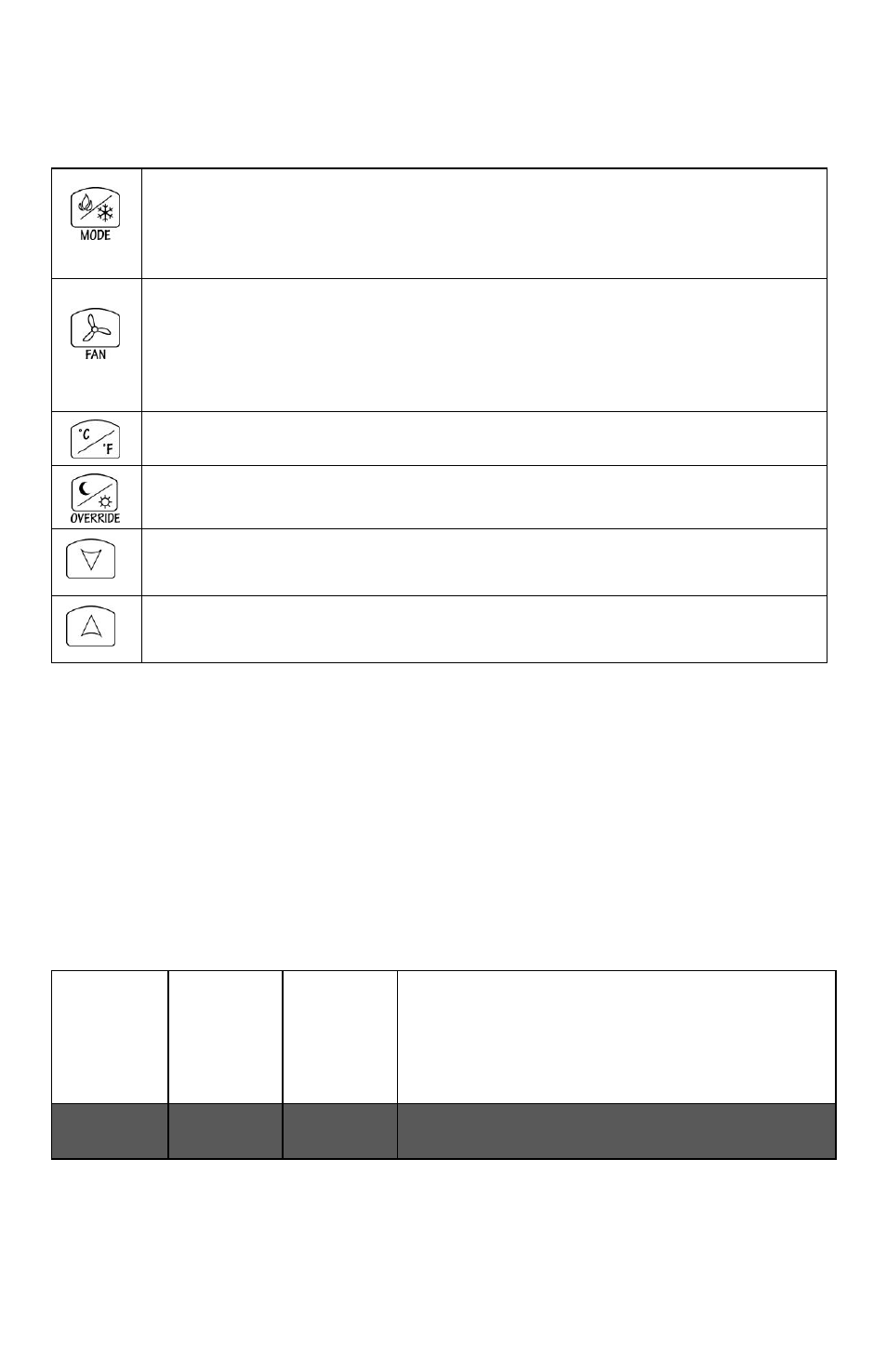

Local keypad interface
Each of the sections in the menu is accessed and configured using 5 keys on the
Terminal Equipment Controller cover.
 Any setpoint change can be permanent or temporary based on configuration
parameter (Setpoint Type)
 Any setpoint written through the network, will be permanent and cancel any
active temporary setpoints
 Lockouts of access to certain functions is made with configuration parameter
(lockout)
Dual occupied setpoints adjustment
(Local occupied setpoint adjustment when “Stp Func” = Dual Stp)
 Heat/Cool setpoint toggle with MODE button to be active only in AUTO mode.
 If cooling, heating or off mode is active, function is disabled.
 Is used to toggle between the different system modes available as per
sequence and menu selected.
 Repetitively pressing the button will toggle between all the available
modes.
 Available menus are dependent on selected sequence of operation.
 Is used to toggle between the different fan modes available as per the
sequence and menu selected
 Repetitively pressing the button will toggle between all the available
modes
 Available menus are dependent on selected sequence of operation and
menu selected for Fan
 Hotel and lodging applications. Toggles the local user temperature scale
between °F and °C
 Commercial and institutional applications. Set a local unoccupied timed
override to occupied mode
 In cooling mode only the cooling setpoint is displayed,
 In heating mode only the heating setpoint is displayed
 In auto mode, (See below)
 In cooling mode only the cooling setpoint is displayed,
 In heating mode only the heating setpoint is displayed
 In auto mode, (See below)
COOLING
MODE
HEATING
MODE
OFF
MODE
AUTO MODE

Setpoint presented to user is the setpoint from the last
action taken by the Terminal Equipment Controller or
the one currently in use.

If the other setpoint is the one desired, then the
MODE button is used to toggle between the current
displayed one and the other
.
Cool XX.X
°F or °C
Heat XX.X
°F or °C
No access to
setpoint
Cool XX.X °F or °C or Heat XX.X °F or °C
Toggle to ( Heat or Cool )with MODE button
