2 | PIR Ready VT7300 Series-Installation Guide
I
NSTALLATION
Remove the security screw on the bottom of
the Fan Coil Terminal Equipment Controller
cover.


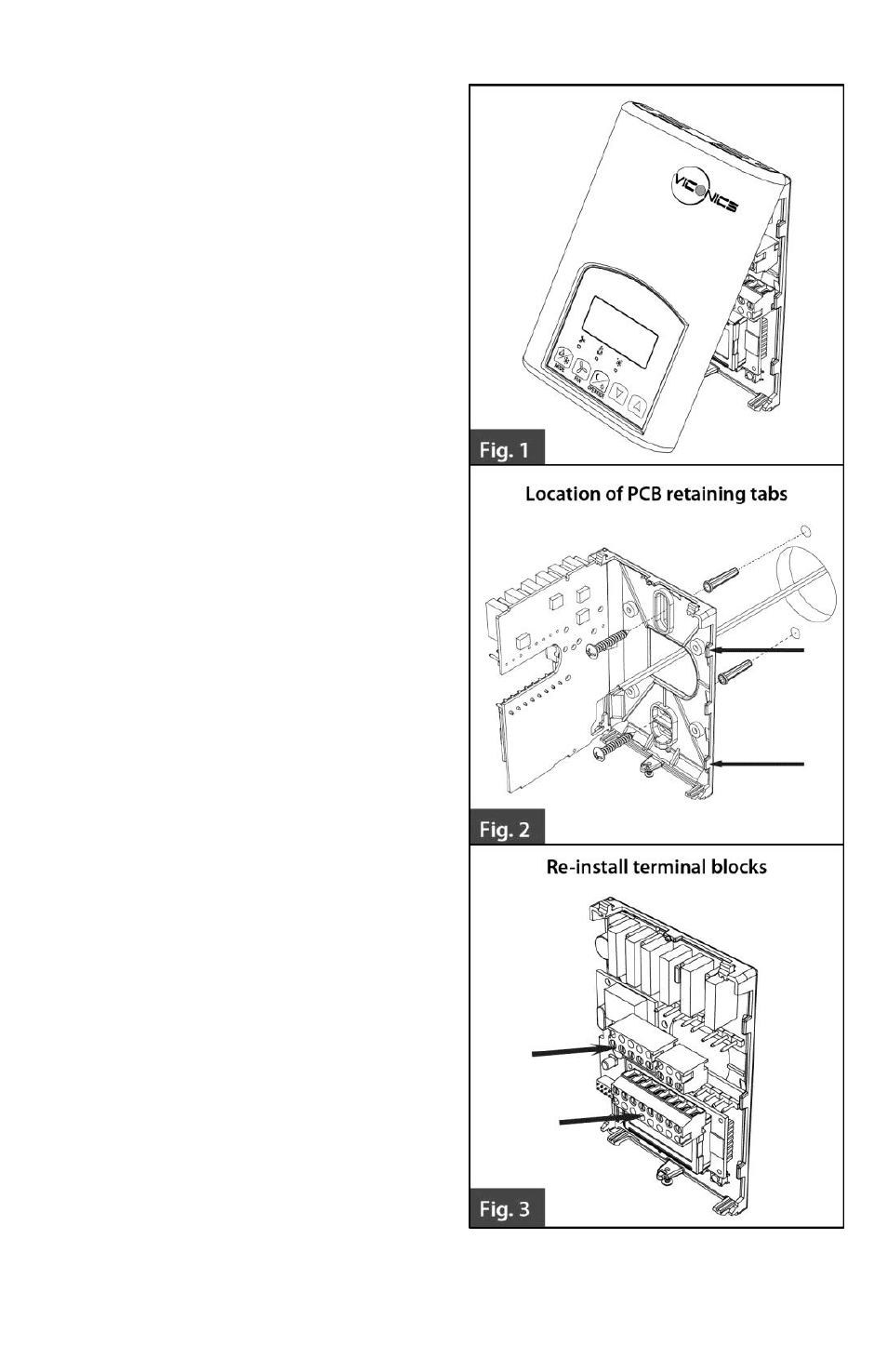

Open unit by pulling on the bottom
side of Fan Coil Terminal
Equipment Controller (Fig. 1).

Remove wiring terminals from
sticker.
 Please read the FCC ID and IC
label installed in the cover upon
removal of cover for the wireless
products.
Location
1. Should not be installed on an
outside wall.
2. Must be installed away from any
direct heat source.
3. Should not be installed near an air
discharge grill.
4. Should not be affected by direct sun
radiation.
5. Nothing should restrict vertical air
circulation to the Fan Coil Terminal
Equipment Controller.
Installation
1. Swing open the Fan Coil Terminal
Equipment Controller PCB to the
left by pressing the PCB locking
tabs (Fig. 2).
2.
Pull out cables 6” out from the wall.
3. Wall surface must be flat and clean.
4. Insert cable in the central hole of
the base.
5. Align the base and mark the
location of the two mounting holes
on the wall. Install proper side of
base up.
6. Install anchors in the wall.
7. Insert screws in mounting holes on
each side of the base (Fig. 2).
8. Gently swing back the circuit board
on the base and push on it until the
tabs lock it.
9. Strip each wire 1/4 inch from end.
10. Insert each wire according to wiring
diagram.
11. Gently push excess wiring back into
hole (Fig. 3).
