Appendix e - Sed SeRieS wiReLeSS SenSoRS

Wireless ZigBee

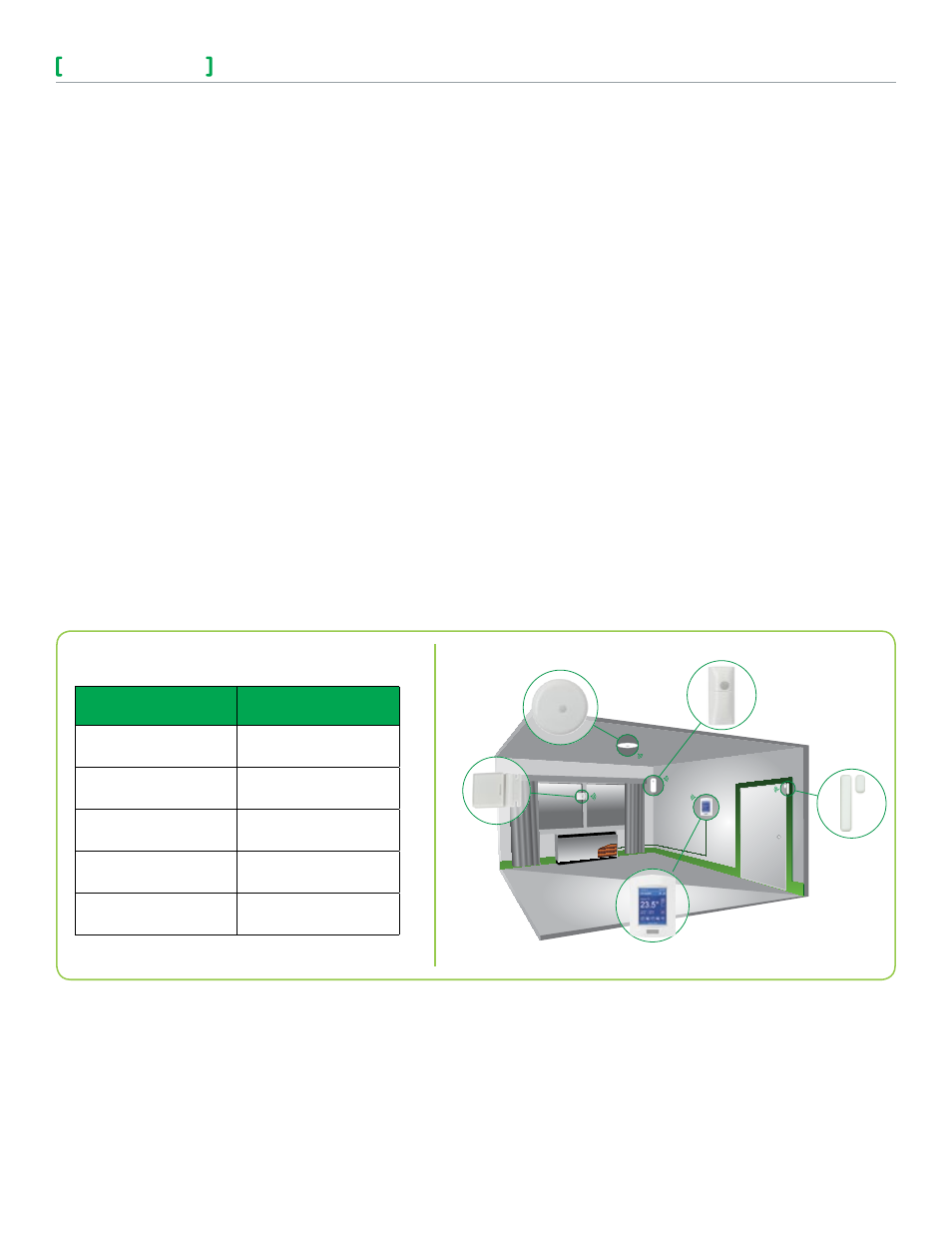

Pro Motion Sensors and Door/Window Switch

Wireless door switches used with an onboard or remote PIR sensor provide advanced local occupancy routines allowing for increased
energy savings during occupied hours without sacrificing occupant comfort.
Wireless window switches are used to monitor exterior windows or patio/balcony doors when opened to prevent unnecessary energy
consumption.
Fan Coil Terminal Equipment Controllers with SED Series ZigBee

Pro wireless switches can be used in stand-alone mode, or with

integration to a central management system, to allow for advanced functions such as central reservation and occupancy functions.
Up to twenty SED-WIN or SED-DOR ZigBee wireless switches can be used with a VTR8300 or VT8300 Room Controller
Up to ten different ZigBee motion sensors and switches (SED-WMS, SED-CMS, or SED-WDS) can be used with a VTR8300 or VT8300
Room Controller
Note that if a ZigBee wireless window switch is used, the VT8300 Room Controller cannot also use a remote PIR motion sensor, whether
wired or wireless. Using one or more wireless remote PIR motion sensors means that a wired PIR motion sensor cannot be used, and
vice versa.
The SED Series sensors are factory delivered with batteries and are ready to be installed, configured, and used right out of the box. Due
to the extremely small current consumption of the sensors, the expected battery life is approximately 10 years, which is equivalent to the
battery shelf life.
No tools are required for commissioning or servicing the ZigBee devices. A simple interface on the devices with an on-board LED and
hidden switch provides all required functions for local interaction. The VT8300 user interface has screens used to pair and configure
ZigBee devices (SED-WMS, SED-CMS, or SED-WDS only). Local information for battery life and connectivity (heartbeat) are also
displayed through the ZigBee

Pro wireless network.

For more information about using the SED-WIN and SED-DOR switches, consult the

SED-WIN / SED-DOR Wireless Door and

Window Switch Installation Guide.
For more information about using the SED-WDS, SED-WMS and SED-CMS wireless switches and sensors, consult the

Pairing VT8000

Series Room Controllers with ZigBee Sensors Installation Guide and Procedure.

Window Switch

Door Switch

Door switch

SED-DOR-P-5045

Window switch

SED-WIN-P-5045

Door/window switch

SED-WDS-P-5045

Wall mounted

motion sensor

SED-WMS-P-5045

Ceiling mounted

motion sensor

SED-CMS-P-5045

Model Selection
