Fan Coil Unit Controller Series
Application Guide
10
Viconics Technologies Inc.
|
9245 Langelier Blvd.
|
St.-Leonard
|
Quebec
|
Canada
|
H1P 3K9
|
Tel: (514) 321-5660
|
Fax: (514) 321-4150
028-0444-01
www.viconics.com
|
February 2015

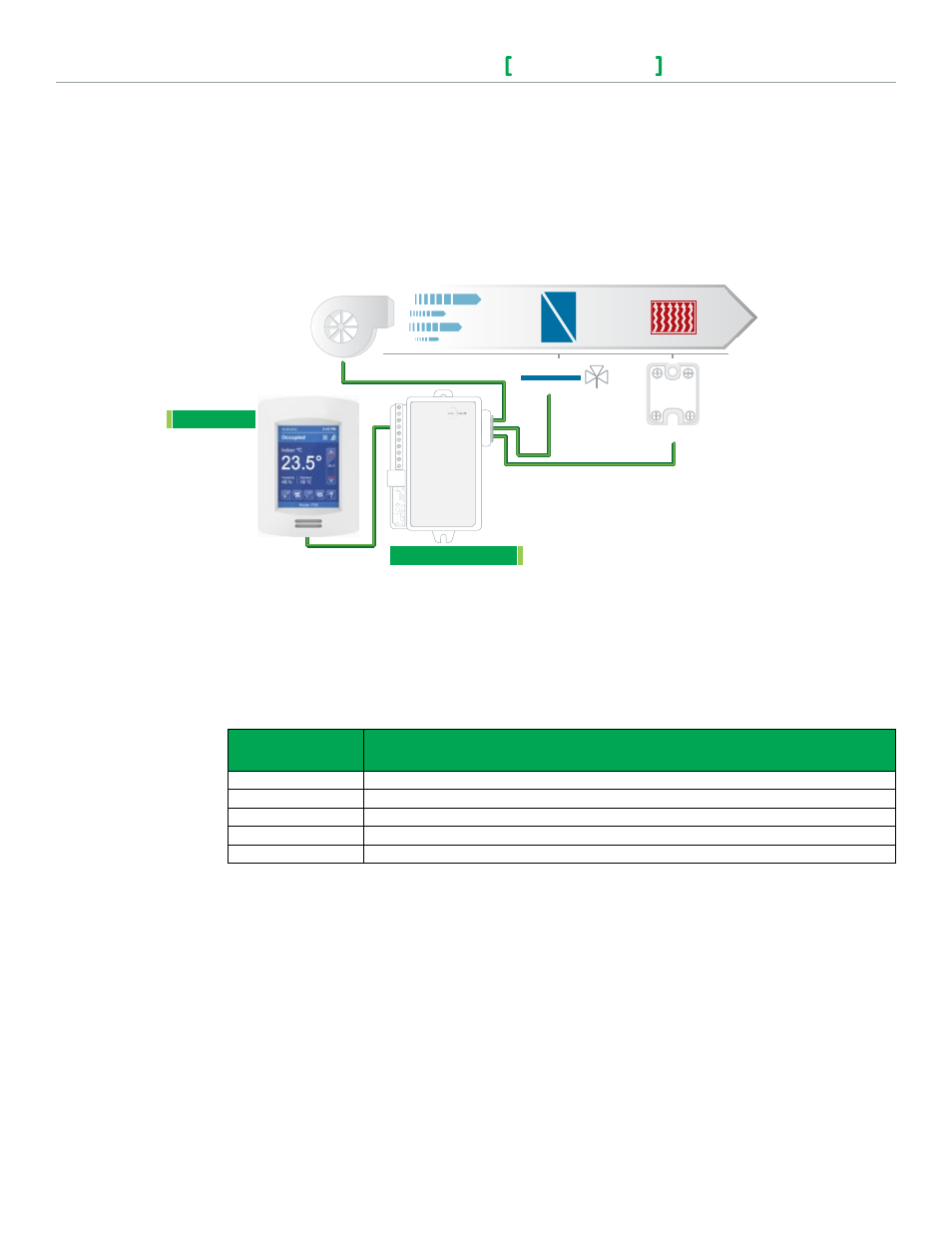

VTR8350A5xxxB wiTh SC3400e5000 ReLAy: CooLinG And eLeCTRiC heAT 2-pipe FAn CoiL UniT wiTh
3-Speed FAn, dehUmidiFiCATion And 2-poSiTion VALVeS
Configuration
parameter name
Configuration settings
Fan menu
L-M-H-A
Fan cont. heat.
On
Pulsed Heating
On
Pipe No
2
Seq. operation
Cool-Rht
Cooling Coil
Electric Heating
SSR
SOLID STATE RELAY
(GENERIC)
SC3400E5000
2 POSITION
COOLING VALVE
Airflow Direction
Fan
VTR8300
