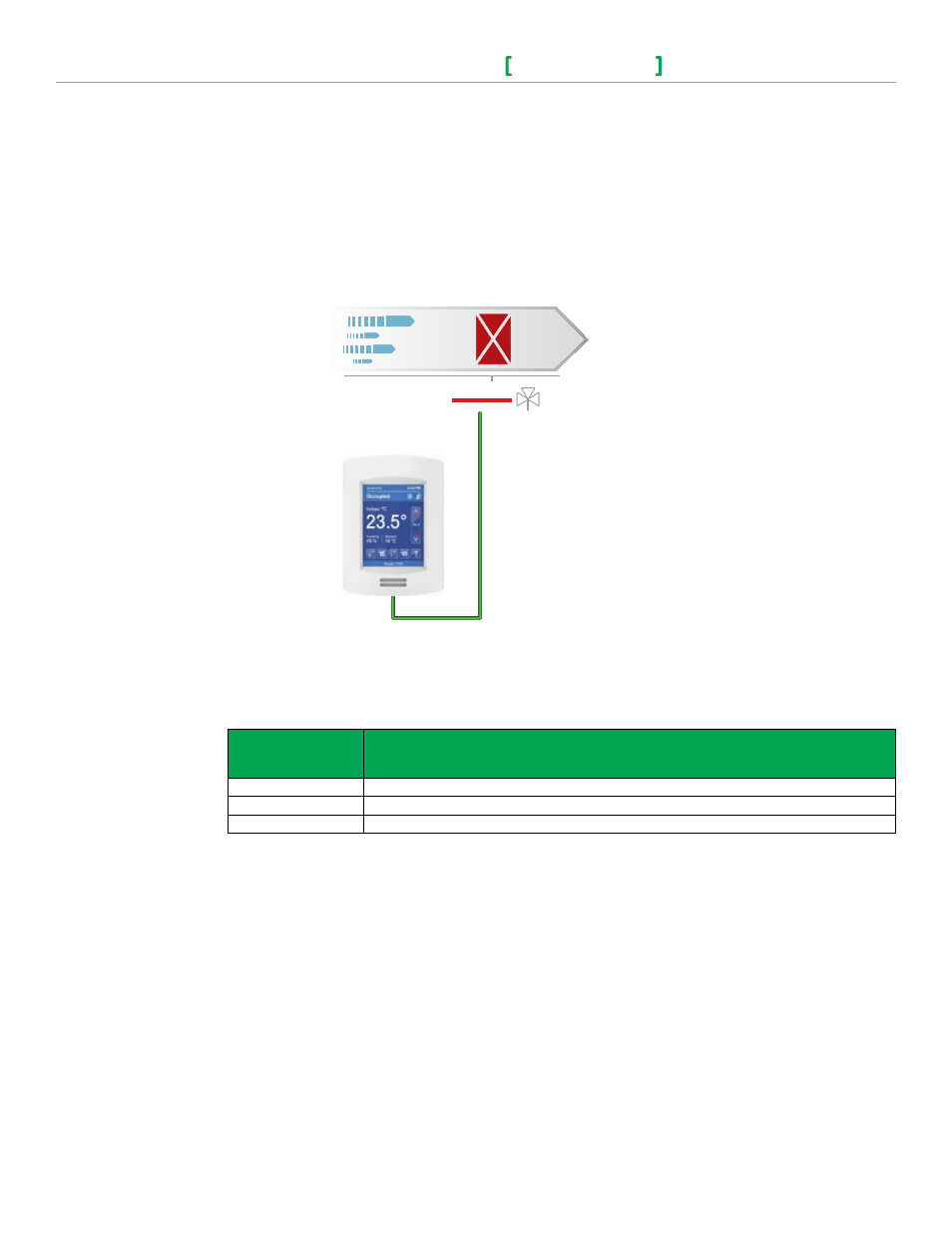

VTR8300 and VT8300 as Zone Controllers
VT83x0U5xxxB heATinG onLy AnALoG VALVe ACTUAToR, 2 pipe
This section shows how the VTR8300 and VT8300 series Room Controllers are used as Zone Controllers.
Configuration
Parameter Name
Configuration Settings
Fan menu
ON-AUTO
Pipe no.
2
Seq. operation
Heat only
Airflow Direction
ANALOG
HEATING VALVE
Heating Coil
