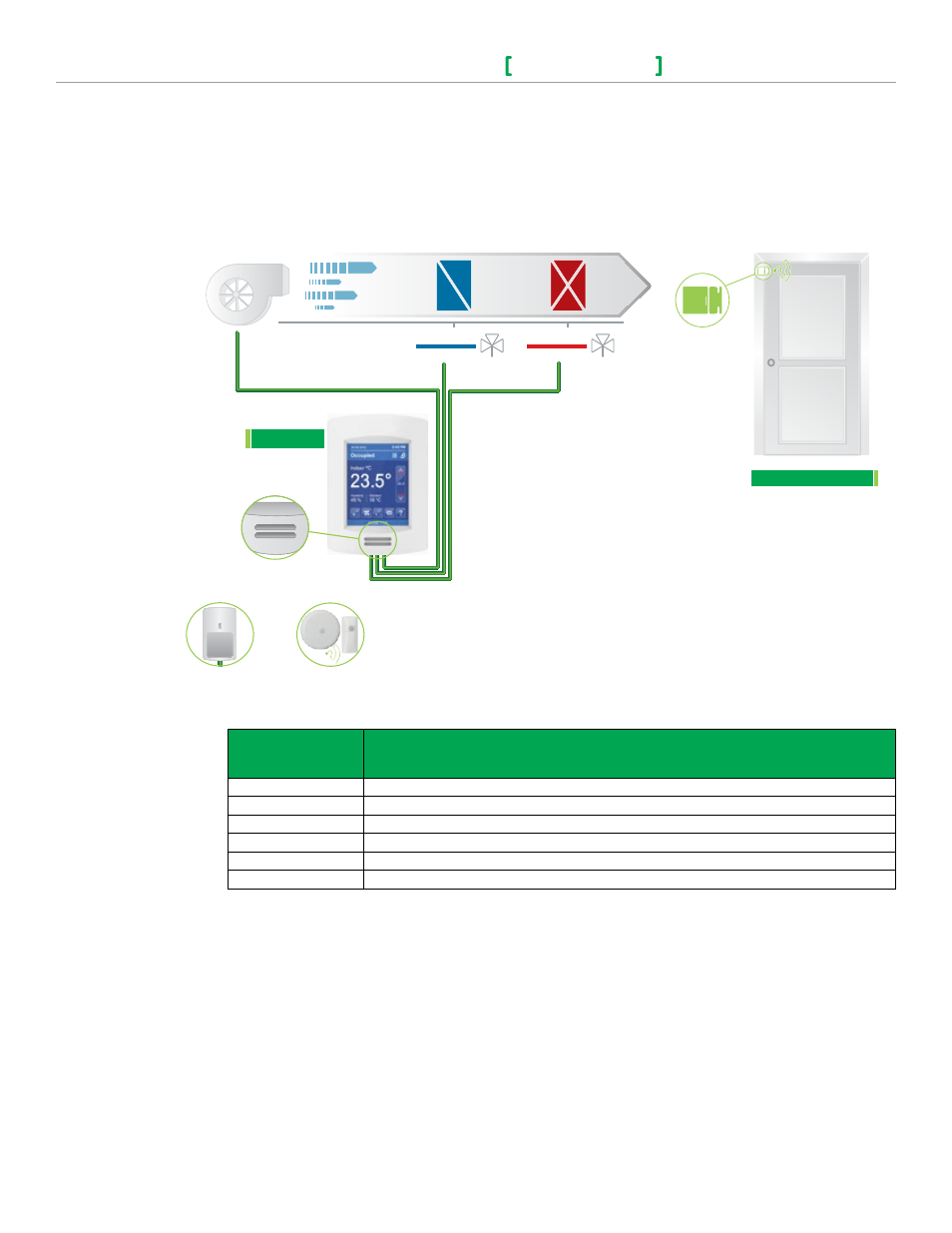

VT8350U5xxxB heATinG/CooLinG 4-pipe FAn CoiL UniT wiTh 3-Speed FAn, TRi-STATe FLoATinG VALVeS
And dehUmidiFiCATion SeqUenCe FoR Low VoLTAGe wiTh wiReLeSS dooR SwiTCh
Configuration
Parameter Name
Configuration Settings
Fan menu L-M-H-A
Control Type Floating
UI16 Motion NO or Motion NC (remote PIR sensor only)
UI17 Door Dry
Pipe no. 4
Seq. operation Cool / Heat
TRI-STATE
COOLING VALVE
Cooling Coil
TRI-STATE
HEATING VALVE
Heating Coil Airflow Direction Fan
VT8300
Door Switch
SED-WDS-P-5045
AND / OR
OR*
Onboard
PIR Sensor
Wired Remote
PIR Sensor
Wireless Remote
PIR Sensor
* Wired remote sensor cannot be used at the same time as wireless remote sensor(s).
