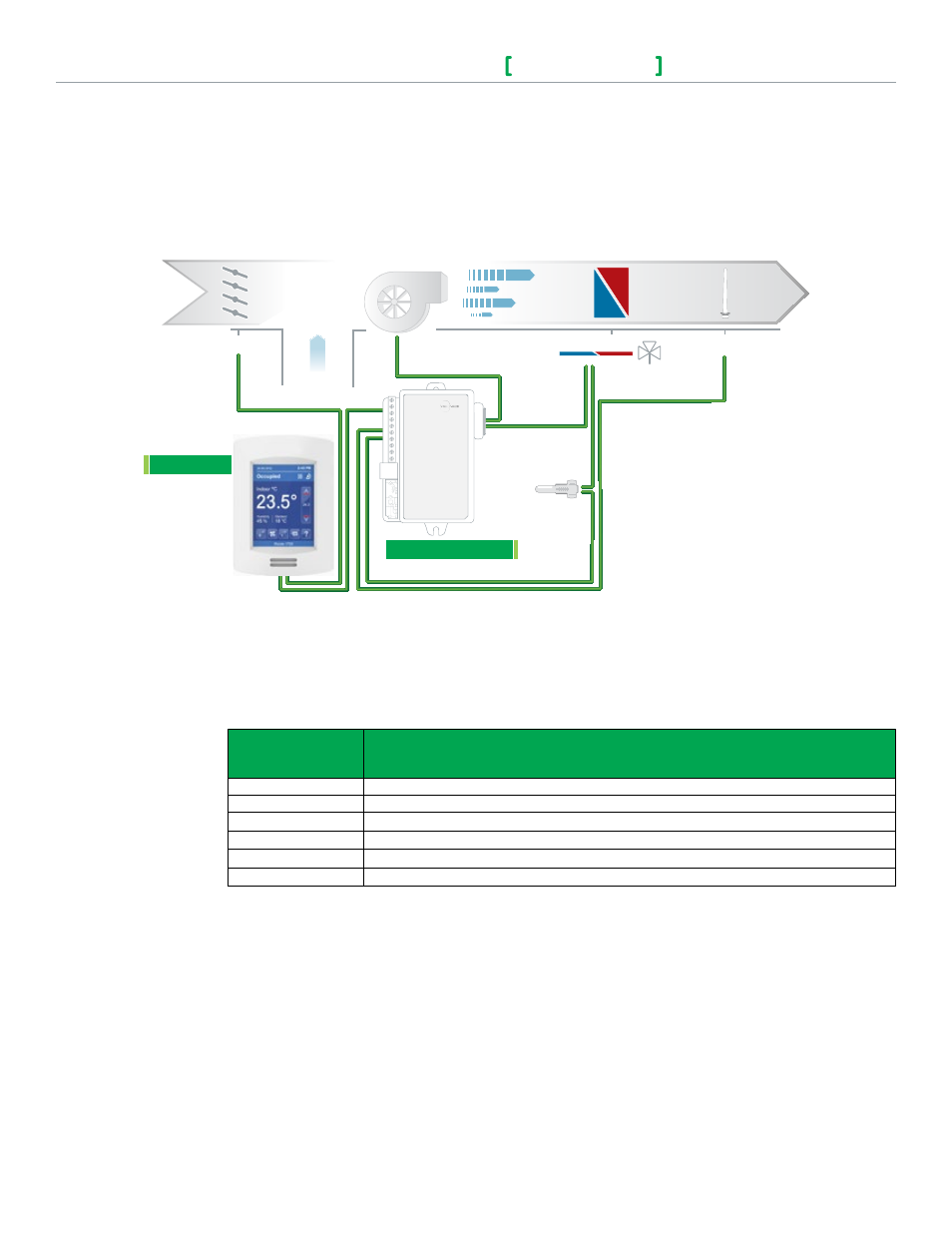

VTR83x0A5xxxB wiTh SC3514e5000 ReLAy: heATinG/CooLinG 2-pipe FAn CoiL UniT wiTh 3-Speed FAn,
FReSh AiR dAmpeR And 2-poSiTion VALVeS
Supply Sensor: 10K Ohm type 2.
Changeover Sensor: 10K Ohm type 2.
Configuration
Parameter Name
Configuration Settings
Fan menu L-M-H-A
Fan cont. heat On
RUI1 COS
Pulsed Heating Occ Out
Pipe no. 2
Seq. operation Cool
SC3514E5000
2 POSITION
Airflow Direction Cooling / Heating Coil Supply Sensor Fan
VTR8300
COOLING VALVE / HEATING VALVE
Fresh Air
DAMPER
Return Air
SENSOR
C/O
SENSOR
