Turn the fittings with an open-ended wrench (w/f 14, at
outlet w/f 16) to detach the hoses from the pump heads.
☞
Do not remove the elbow fittings from the pump heads.
Through reassembly a leak may result.

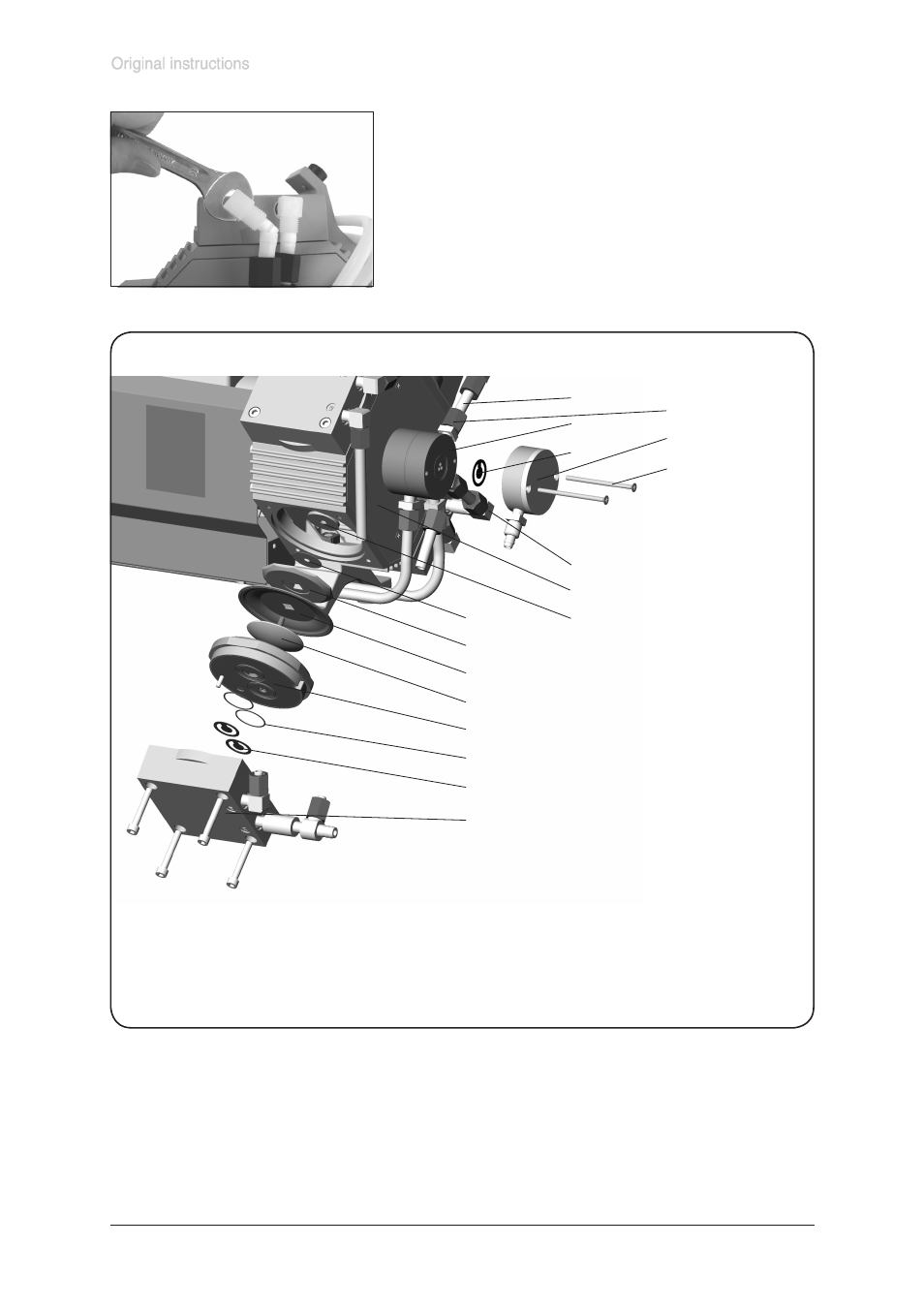

View of the disassembled pump head parts
8
7
6
5
4
3
2
1
14
12
13
11
17
10
9
15
16
2
1: Housing cover with housing
cover insert
2: Valves
3: O-rings
4: Head cover
5: Diaphragm clamping disc
with square head screw
6: Diaphragm
7: Diaphragm support disc
8: Washer
9: Connecting rod
10: Housing plate
11: Manifold cover
12: Cover plate (only at outlet)
13: Countersunk screw
14: Union nut
15: Connecting hose
16: Distributor
17: Fitting
Pump head parts:
