20
❏

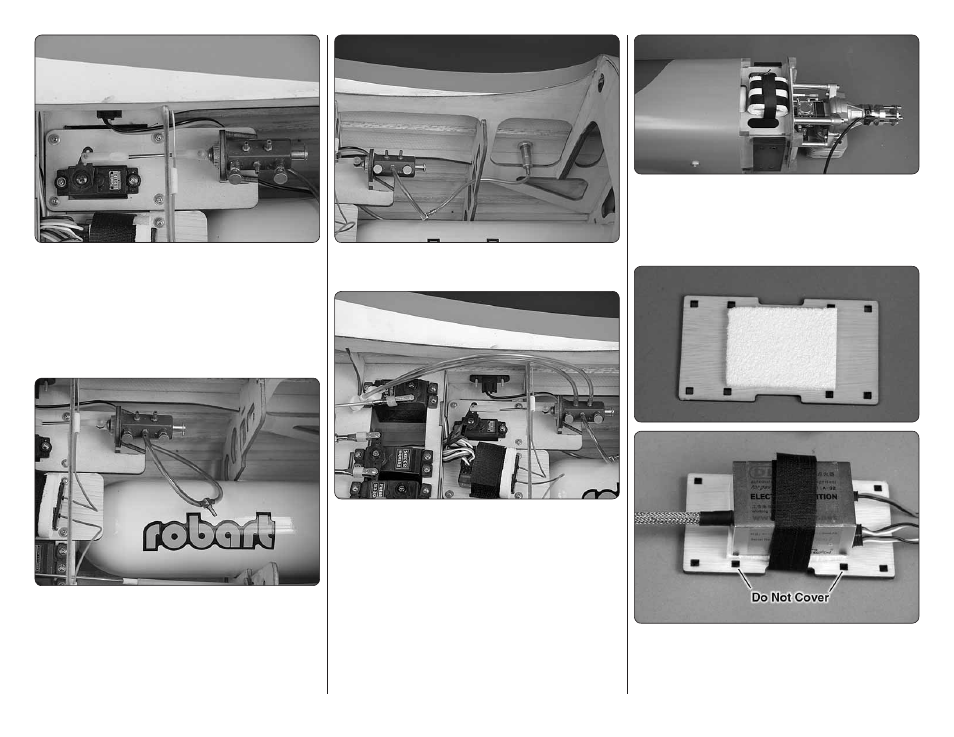

9. Cut off ½" [13mm] from the threaded end of the
2-56 x 6" [152mm] metal pushrod. Thread the nylon
ball socket on the pushrod. Snap the ball socket onto
the ball link ball on the retract control valve. Center the
servo arm and mark the pushrod where it crosses the
servo arm. Make a 90 degree bend at the mark. Install
the pushrod in the servo arm and install a nylon Faslink.
Cut the pushrod 1/8" [3mm] past the Faslink.
❏
10. Connect a T-fi tting to the air line from the pressure
tank. Connect a second air line from the retract control
valve to the T-fi tting.
❏
11. Install the air fi ll valve. Connect a third air line
from the fi ll valve to the T-fi tting.
❏
12. Connect an 8" [203mm] long red and purple air
line to the air control valve. Install quick connects on
the other end of the two air lines. Important: Check the
wing as to which quick connect to install on which color
air line. Use the retract instructions as a guide.
INSTALL THE IGNITION SYSTEM
❏
1. Install the ignition battery switch and charge jack
towards the front of the fuselage.
❏
2. Wrap the ignition battery in foam rubber. Secure
it to the top of the engine box with a hook and loop
strap. Connect the plug from the ignition battery to the
ignition switch. Secure the connection with a piece of
heat shrink tubing.
❏
3. Place a piece of foam rubber on the plywood
ignition module tray. Do not cover up the inner four
holes. Place the ignition module on the foam rubber and
secure it with a strap made from hook and loop material.
