38
7. SETTING SCREEN
7.1. Module Change Settings

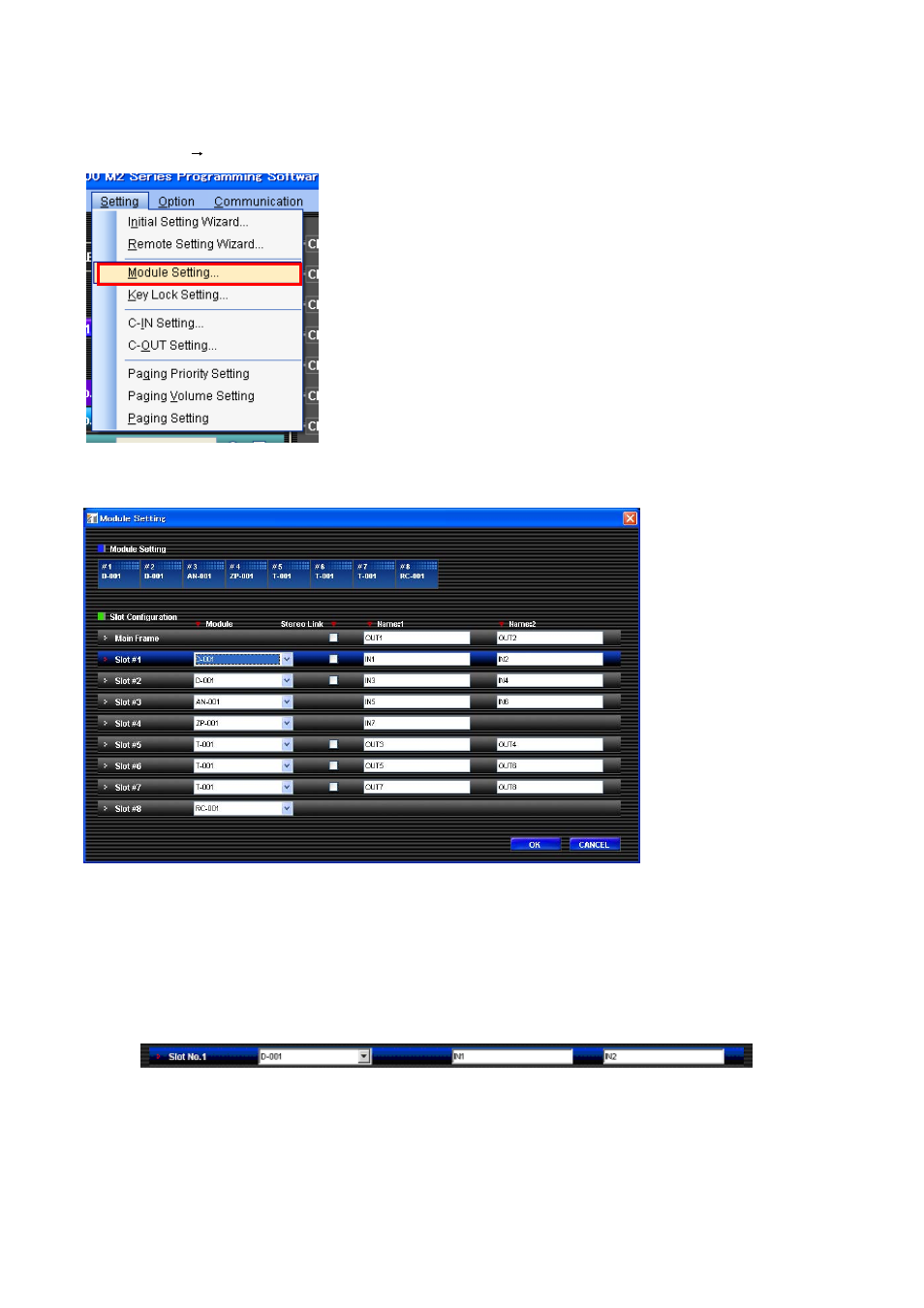

Select "Setting Module Setting" from the menu on the main screen.
The Module Setting dialog window is displayed.
Step 1. Select the module inserted into each slot using the "Module" column pull-down menus in the "Slot
Configuration" area (Nothing is displayed in the menu if the module cannot be selected.)
Step 2. Module model numbers are displayed in the Module Setting area located at the top of the screen.
Also, a channel name input field is displayed in the Slot Configuration area depending on the number
of module inputs.
Step 3. Enter a name in the name input field as required.
To stop the setting partway through, click the "CANCEL" button. The edited content is abandoned and
the dialog window is closed.
Step 4. To set the stereo link, check the "Stereo Link" checkbox.
Step 5. Click the "OK" button following setting completion of all slot modules to make the new settings take
effect.
