MIX
MIC1
TIME OUT
OFF
PRIORITY
START/END 3
Ch4 Ch3 Ch2 Ch1
BATTERY DATA
2 1
A: FIRST
B: LATEST
C: FIRST: FIXED, NEXT: LATEST
A B C
MIC
DATA–EXT–PRIORITY
UNIT MAX
1 2 4 ON
AUX1
MIC UNIT
CUT
10 0
10 0 10 0
10 0
MIX
MIC2
AUX2
MIC UNIT
MAIN SUB LINE
CUT
10 0
AUX3
10 0
10 0
CENTRAL UNIT TS-900
HEADPHONES VOTING POWER
FUNCTION SETTING MIC UNIT
MIC UNIT INPUT
MAIN SUB MAIN+SUB
1
2
3
4
5 6 7 8 9
10
21 22
11 12 13
14 15 16 18 19 17 20
9
5. NOMENCLATURE AND FUNCTIONS

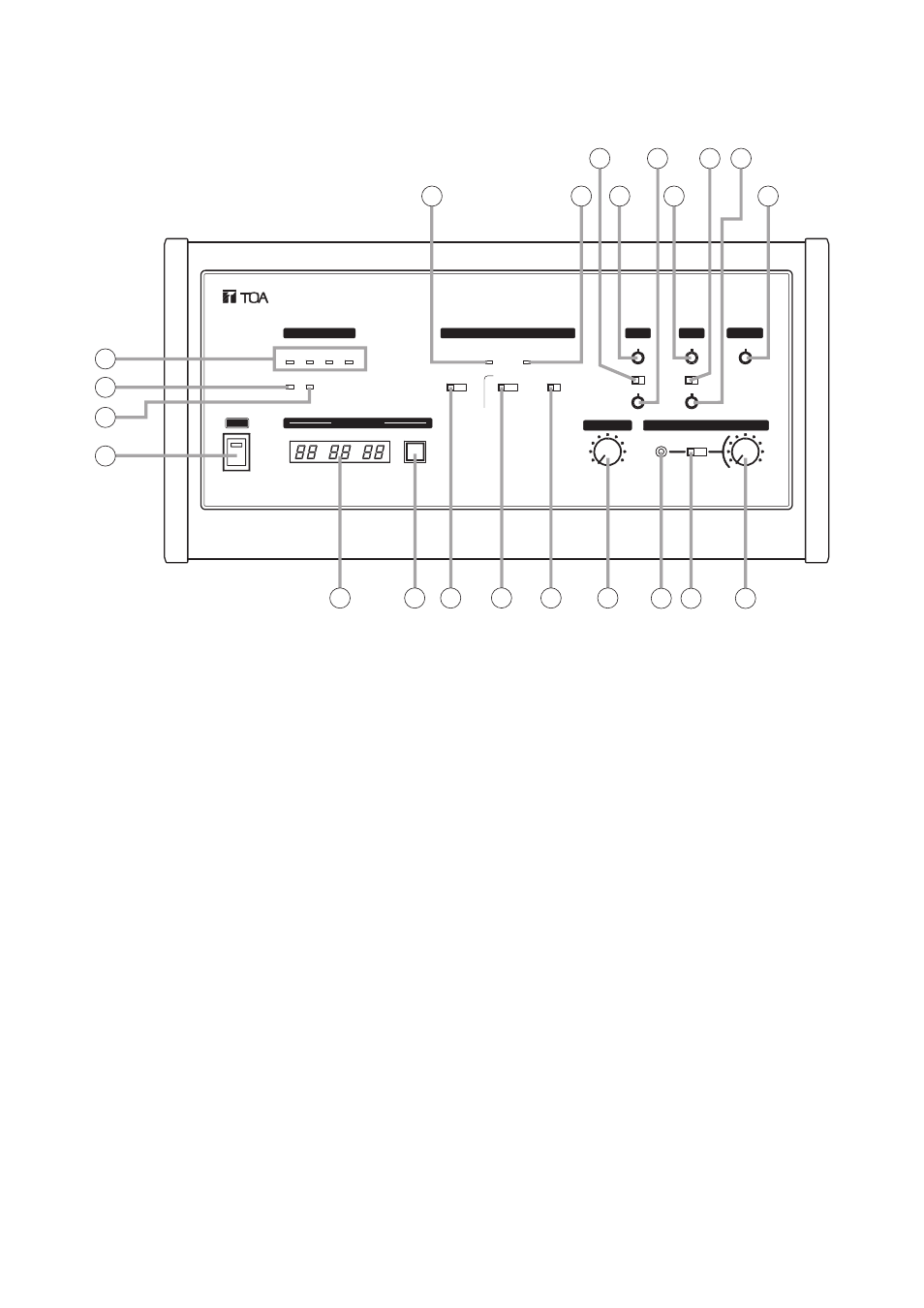

5.1. Central Unit TS-900
[Top]
1. Power switch
Setting this switch to the ON position causes the
Power indicator to light.
2. Audio signal receiving indicators
[Ch1/Ch2/Ch3/Ch4]
Light up when audio signals are received from
either Chairman or Delegate units. Audio signals
are transmitted or received through 4 channels.
The number of channels to be used can be set
with the Simultaneous Speaker No. Setting switch
(16). These indicators light in the same number as
that of the Chairman or Delegate units currently
being used for speech. (Which indicator will light is
not specified.)
3. Data signal receiving indicator
Lights when control data is received from the
Chairman or Delegate unit.
4. Battery indicator
Flashes when the lithium-ion battery of the
Chairman or Delegate unit nears complete
discharge. (In this event, the Microphone In-Use
indicator and the Speech indicator on the
corresponding unit also flash.)
Note
Be sure to replace the lithium-ion battery of the
corresponding unit immediately if this indicator
begins to flash.
5. External control communication indicator
Remains lit during communications with a
computer (PC) or operation panel connected to
the External Control terminal (29).
6. External control priority indicator
Either lights or flashes when a PC or operation
panel connected to the External Control terminal
(29) performs priority operation. In this event,
three function setting switches (16), (17), and (18)
cannot be used.
7. AUX 1 input volume control
Adjusts the input signal level of the AUX 1 Input
Terminal (27) located on the rear panel. Speech
input to the AUX 1 terminal is output to the base
language channel*
1 .
8. AUX 2 input volume control
Adjusts the input signal level of the AUX 2 Input
Terminal (25) located on the rear panel. Speech
input to the AUX 2 terminal is output to the
translation language channel*
2 .
9. AUX 3 input volume control
Adjusts the input signal level of the AUX 3 Input
Terminal (24) located on the rear panel. Speech
input to the AUX 3 terminal is output to both the
base language*
1 and translation language* 2
channels.
