Toa TS-900 Series - Manual (Page 23)

23
8. MICROPHONE MIX/CUT SWITCH SETTINGS
Whether to output voice signals from Chairman or
Delegate units to the base or translation language
channel can be determined by setting the Microphone
Mix/Cut switch on the TS-900 Central unit.
Outputs for individual inputs (MIC 1 – 2, and AUX 1 – 3)
to the Central Unit also change depending on the switch
setting.
[Switch Setting Relationship of Input to Base/Translation Language Channel]
• Speech output from Chairman and Delegate units depends on the switch setting. When the MAIN switch is
set to the MIX position, speech is output to the base language channel. When the SUB switch is set to the
MIX position, speech is output to the translation language channel.
• Inputs to the MIC 1 and AUX 1 terminals are output to the base language channel, except during priority
speech from the Chairman unit, regardless of the switch setting.
• Inputs to the MIC 2 and AUX 2 terminals are output to the translation language channel, except during
priority speech from the Chairman unit, regardless of the switch setting.
• Inputs to the AUX 3 terminal are always relayed to both the base and translation language channels
regardless of the switch setting.

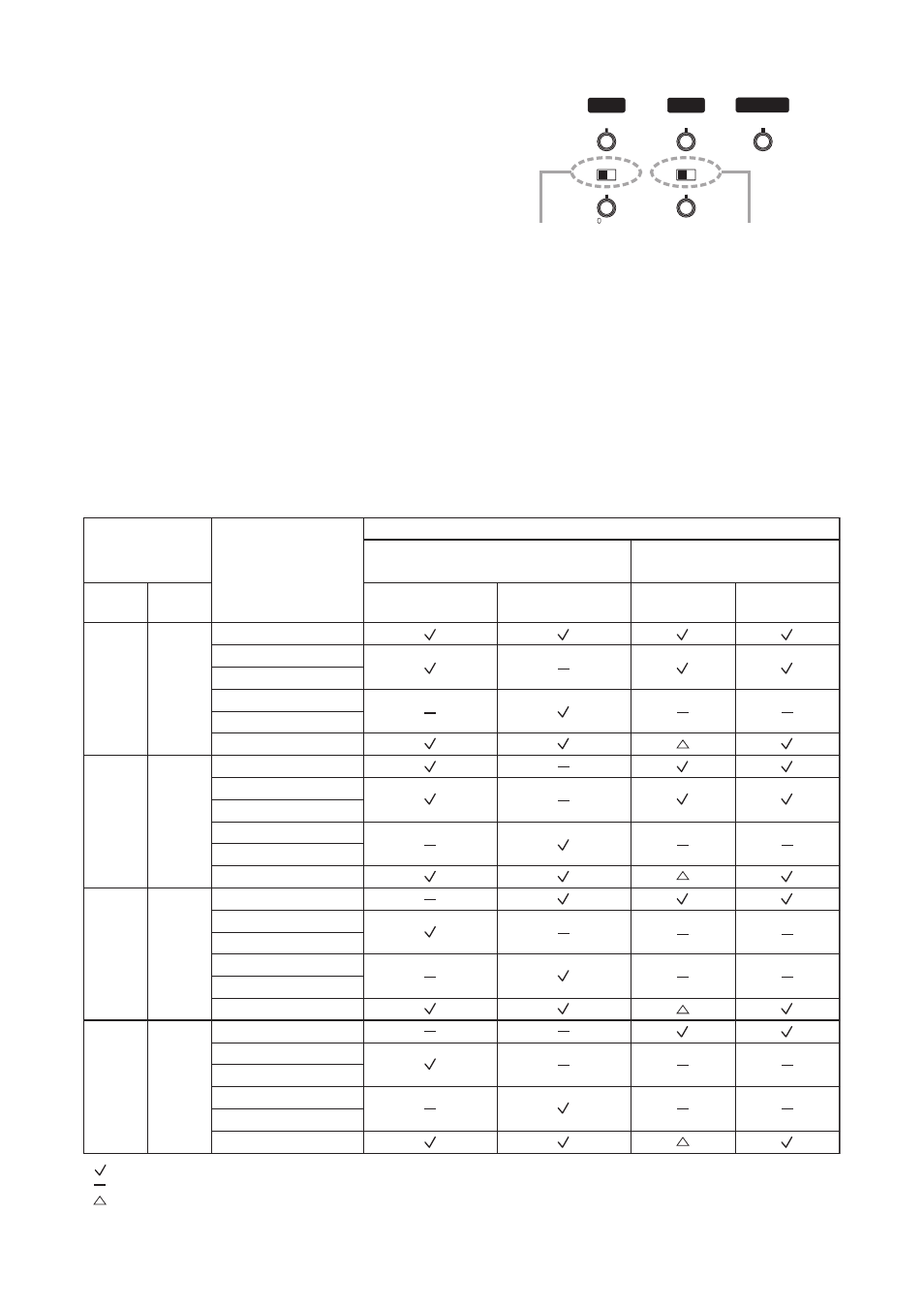

[Input/Output Relationship to Switch Settings]
MIX
MIC1
AUX1
MIC UNIT
CUT
10 0
10 0
MIX
MIC2
AUX2
MIC UNIT
CUT
10 0
AUX3
10 0
10 0
MAIN SUB MAIN+SUB
For the base
language channel For the translation
language channel
Microphone Mix/Cut
switch
MAIN SUB
MIX MIX
MIX CUT
CUT MIX
CUT CUT
Chairman/Delegate unit
MIC 1
AUX 1
MIC 2
AUX 2
AUX 3
Chairman/Delegate unit
MIC 1
AUX 1
MIC 2
AUX 2
AUX 3
Chairman/Delegate unit
MIC 1
AUX 1
MIC 2
AUX 2
AUX 3
Chairman/Delegate unit
MIC 1
AUX 1
MIC 2
AUX 2
AUX 3
Monitor speaker on the Chairman/Delegate unit
Headphone* on the Central unit
Base language
Output
Translation language
Line output
Headphone*
Central unit
Recording output
Input
Select output from MAIN (base language), SUB (translation language), and LINE (line output) sources using the Headphone
Channel Selector switch. *
: Indicates that individual inputs are output.
: Indicates that individual inputs are not output.
: Indicates that output can be determined by the setting of the AUX 3 Output Mix/Cut switch (located on the TS-900's rear panel).
