11.7. Recording the Conference Contents

INFRARED TRANSMITTER/RECEIVER

SHORT

AUX3

DC24V 3A(MAX)

AUX2

MIC2

MIC1

EXT CONTROL

LEVEL

CHIME

LINE OUT

REC OUT

MIX CUT

AUX3

AUX1

Central unit TS-900
(Rear panel)

(Rear panel)

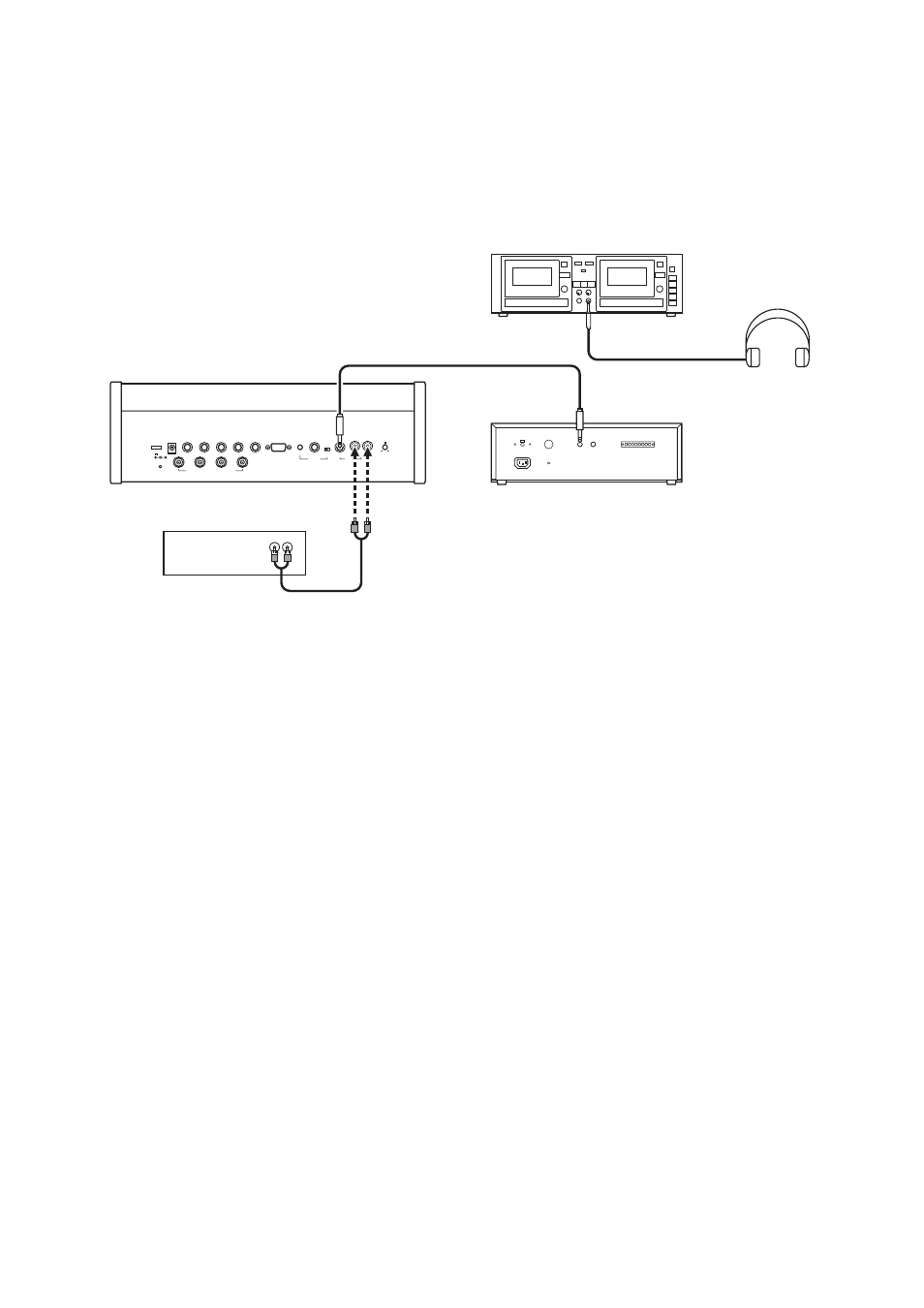

Recording input

Recording output (REC OUT)

Monitor output

Connection of the recorder using RCA plugs.

Headphone

Alternate recording deck

(Front panel)

Recorder

Connect the recorder's recording input terminal to the Central unit's recording output terminal. If the recorder
has its recording level control, adjust it to an appropriate recording level.

Note: For operation of the recorder, refer to the instruction manual included with the recorder.
